Low-Start Wind Turbine with 5-Blade Rotor for Off-Grid and Hybrid Systems

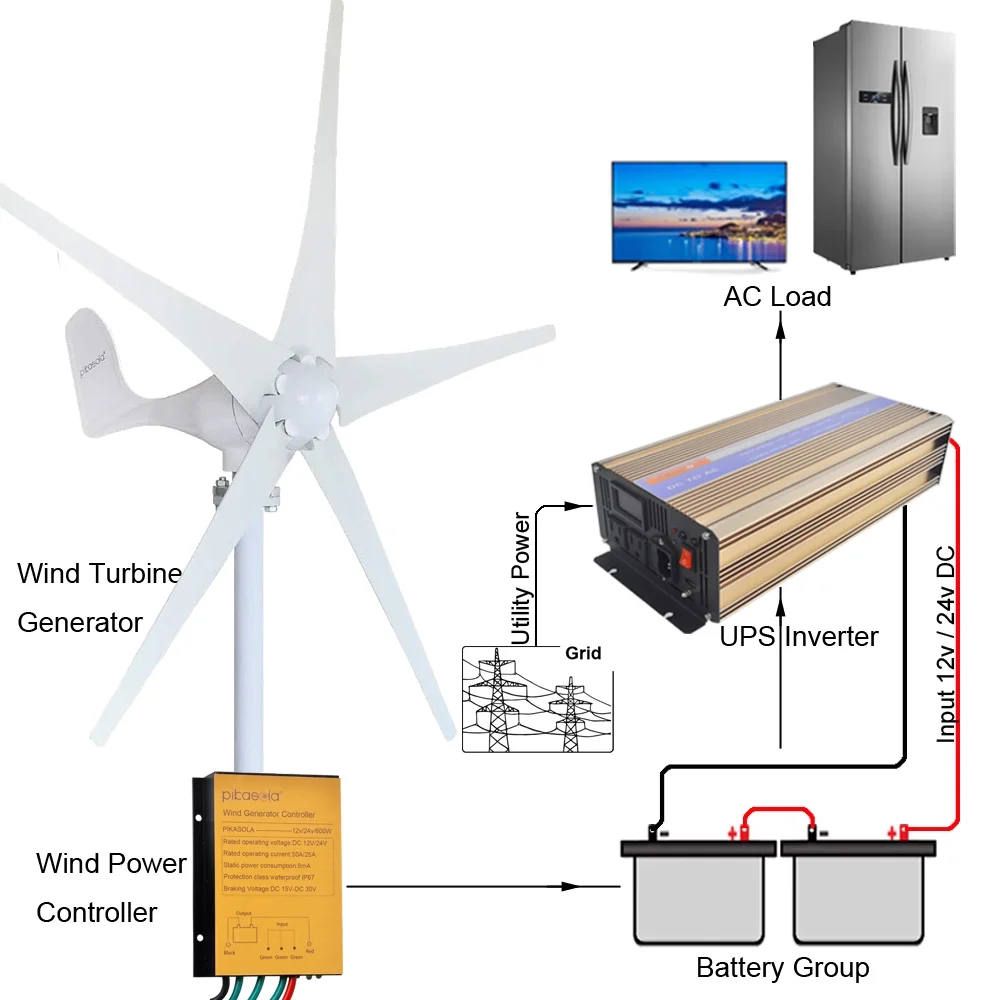

This 400W wind turbine generator kit offers stable and efficient power for marine, RV, home, or hybrid solar-wind systems.
The five-blade design ensures better torque at low wind speeds and operates with minimal vibration. The system features
a permanent magnet AC generator, electromagnetic braking, and a die-cast aluminum body for durability in all climates.
Kit Components
- (1) Wind turbine generator body (3-phase AC permanent magnet type)
- (5) Nylon fiber blades (23.8 in each)
- (1) Electromagnetic charge controller
- (1) Nose cone, screws, and mounting hardware
- (1) Anemometer (battery not included)
- (1) Installation manual
Key Features
- Low Wind Speed Startup: Begins generating at just 5.6 mph (2.5 m/s)
- Blade Construction: Lightweight, waterproof, and corrosion-resistant nylon carbon fiber

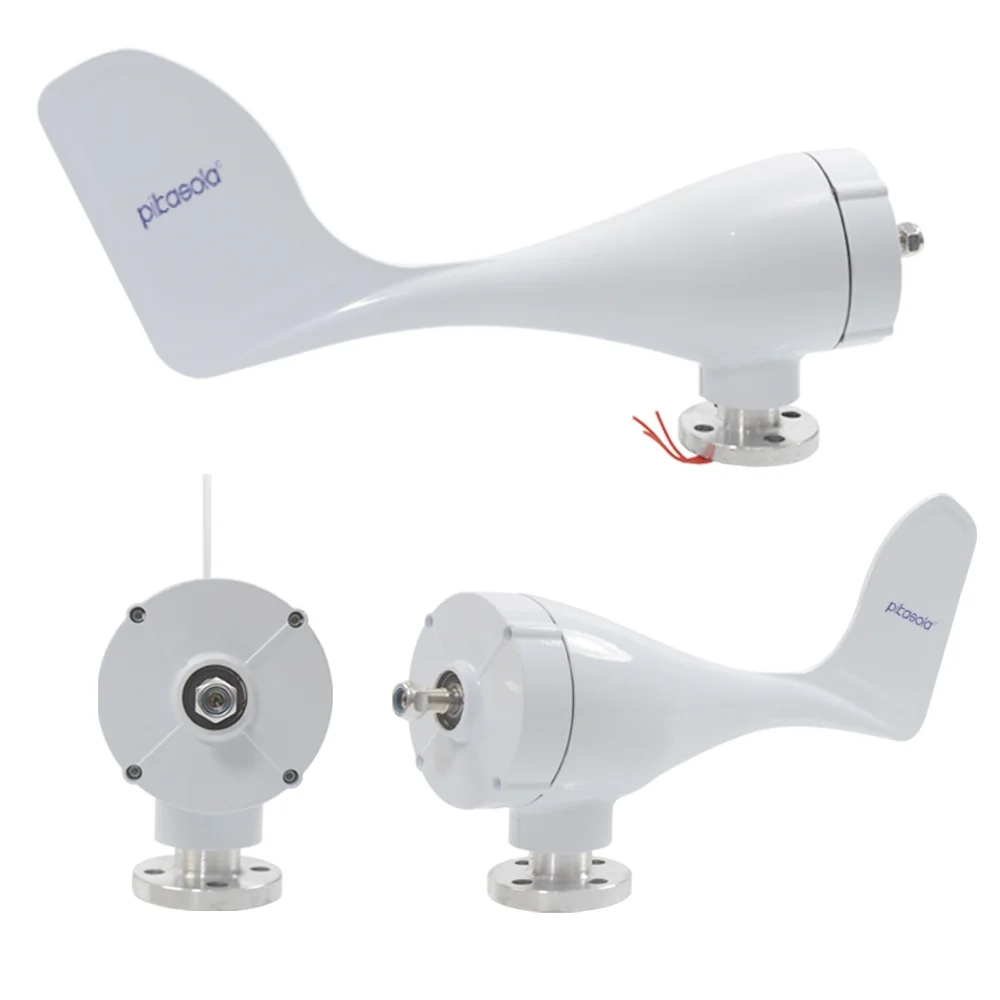

- Generator Core: NdFeB magnet rotor, high-efficiency, brushless synchronous design
- Yaw Control: Automatically adjusts rotor to wind direction for optimized performance
- Wide Applications: Suitable for cabins, boats, mobile homes, and off-grid kits
Specifications Table
| Rated Power | 400W |
| Max Power | 410W |
| Voltage | 12V DC |
| Startup Wind Speed | 2.5 m/s (5.6 mph) |
| Rated Wind Speed | 13 m/s (29 mph) |
| Working Wind Speed | 3–25 m/s |
| Survival Wind Speed | 40 m/s (89.5 mph) |
| Blade Material | Nylon fiber |
| Generator Type | 3-Phase AC Permanent Magnet Generator |
| Braking System | Electromagnetic |
| Yaw Adjustment | Auto windward alignment |
| Operating Temp | -40°F to 176°F (-40°C to 80°C) |
| Mounting Tube Recommendation | Steel/Iron Pipe, 50±2mm Diameter (Not Included) |
