Description
Description

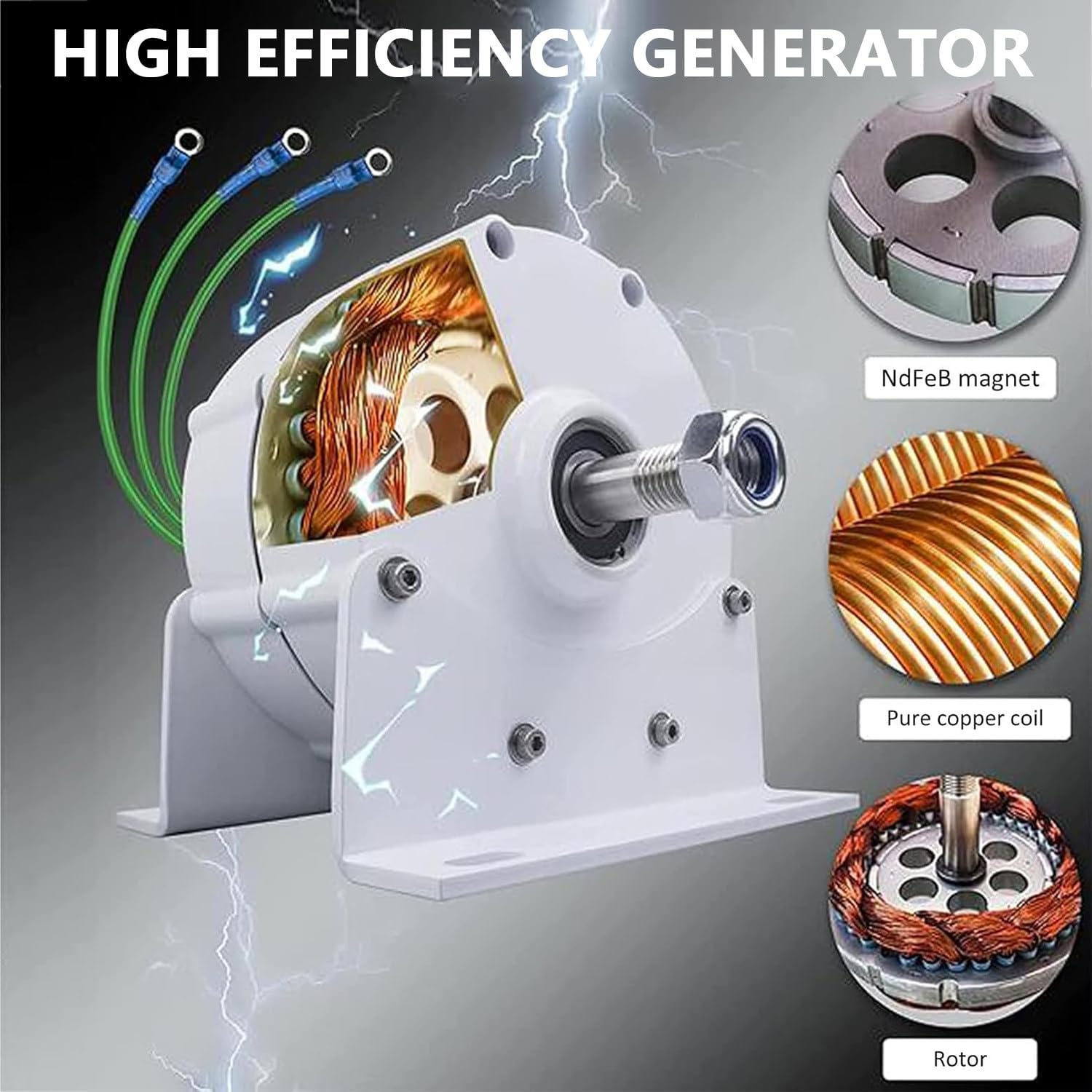

This low RPM permanent magnet generator is designed for renewable energy systems including wind turbines and micro hydro water turbines. The three phase gearless alternator architecture allows direct drive operation without transmission gearing which reduces mechanical loss and improves long term reliability. Rare earth permanent magnets and high grade copper windings provide stable electrical generation while the aluminum alloy housing improves durability and corrosion resistance for outdoor energy installations.
Key Features
- Low RPM permanent magnet generator optimized for wind turbine and water turbine energy systems
- Gearless direct drive design reduces mechanical wear and improves reliability
- High efficiency copper windings and rare earth magnets provide stable electrical output
- Rated operating speed of approximately 600 RPM suitable for renewable turbine systems
- Wide operating temperature range from negative 40 C to 120 C
- Durable aluminum alloy housing designed for long service life in outdoor environments
Specifications Table
| Generator Type | Permanent Magnet Generator |
| Phase | Three Phase |
| Rated Power Options | 5000W; 8000W; 10000W; 12000W |
| Rated Voltage Options | 12V; 24V; 48V; 120V; 220V |
| Rated Speed | 600 RPM |
| Efficiency | Greater than or equal to 85 percent |
| Working Temperature | -40 C to 120 C |
| Housing Material | Aluminum Alloy |
| Magnet Material | Rare Earth Neodymium Iron Boron |
