Wind Power Kit with MPPT Control, Auto and Manual Braking

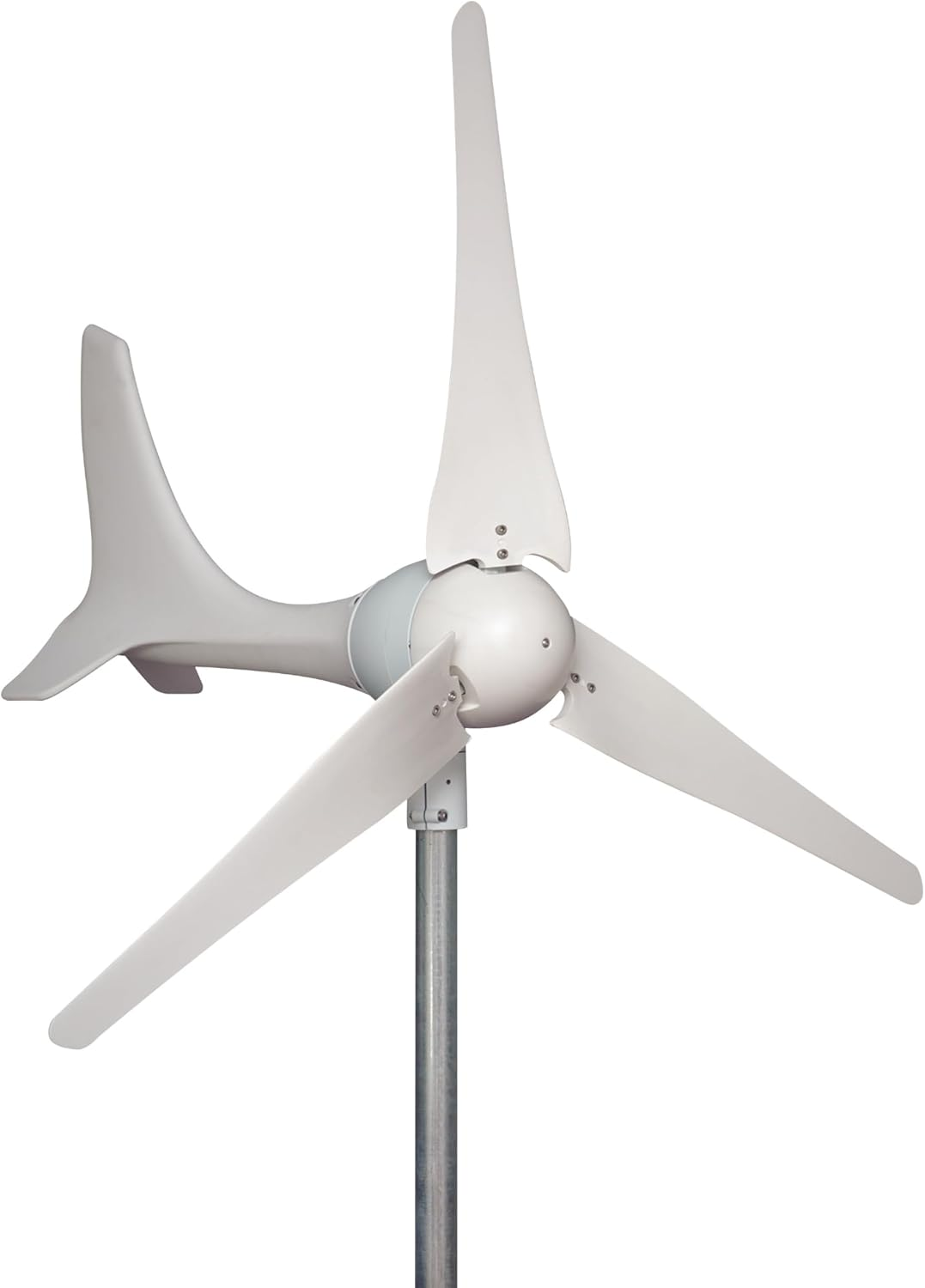

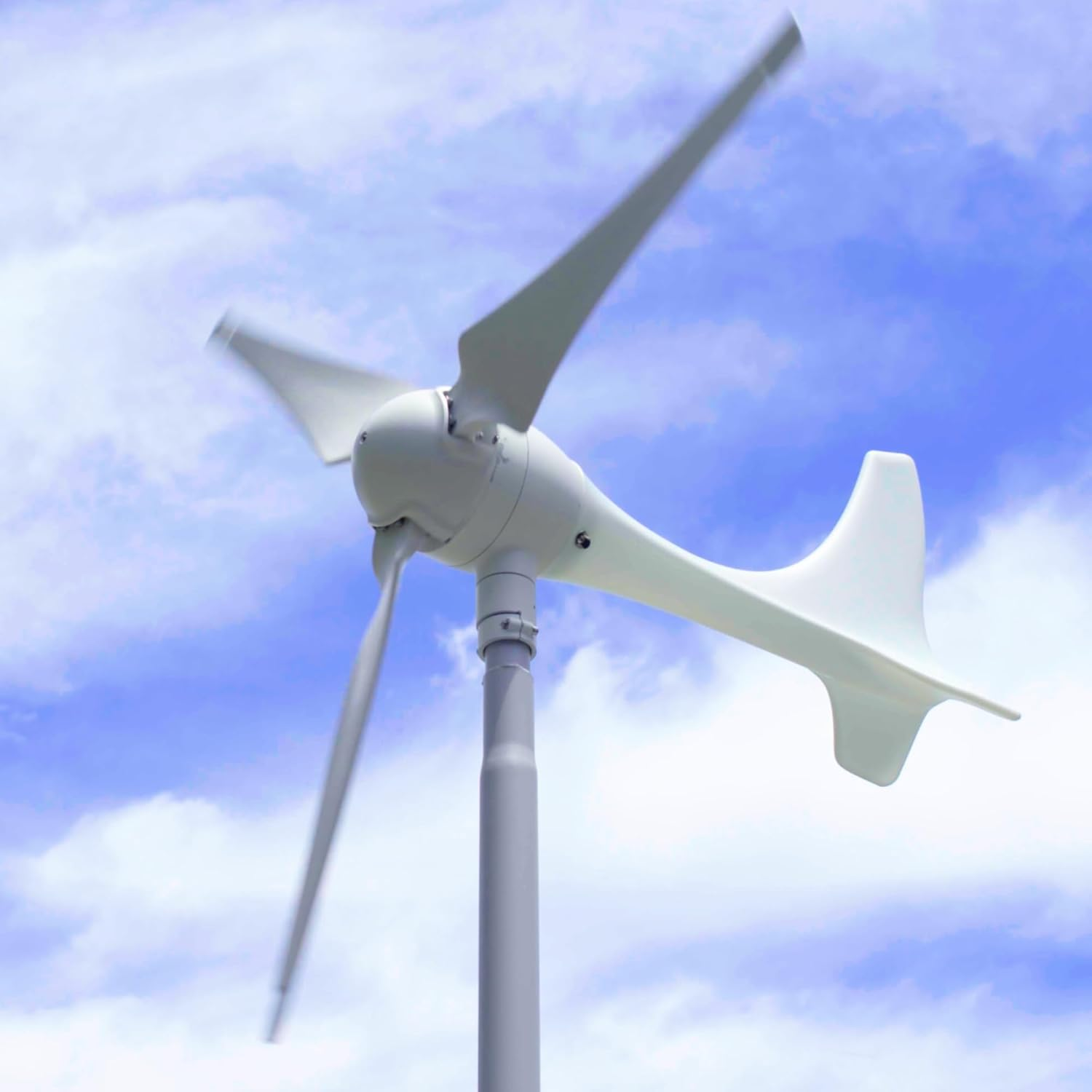

This 600W wind turbine generator is built for small off-grid systems, boats, cabins, and remote installations.
Designed with both automatic and manual braking systems, it delivers real-time monitoring through an MPPT charge
controller featuring amp, volt, and watt displays. Its marine-grade materials and low startup speed make it ideal
for coastal, residential, and hybrid renewable setups.

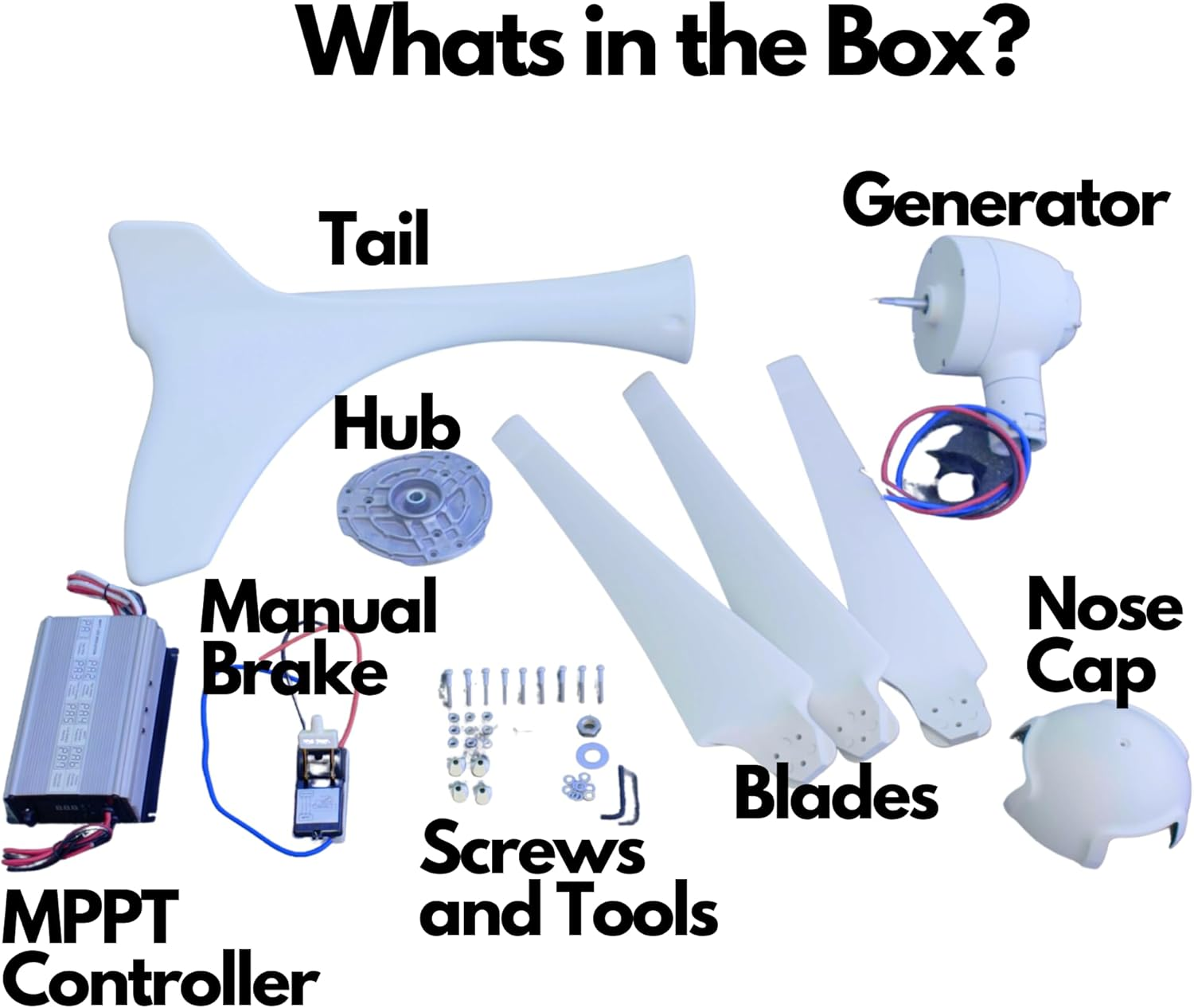

Kit Components
- (1) 600W 3-phase permanent magnet brushless wind turbine
- (1) MPPT charge controller with LCD display (Amps, Volts, Watts)
- Manual stop switch and overspeed braking circuit
- Mounting hardware and installation guide
Key Features
- Voltage Compatibility: 12V or 24V DC systems
- Rated Load Current: 30A (Max 35A)

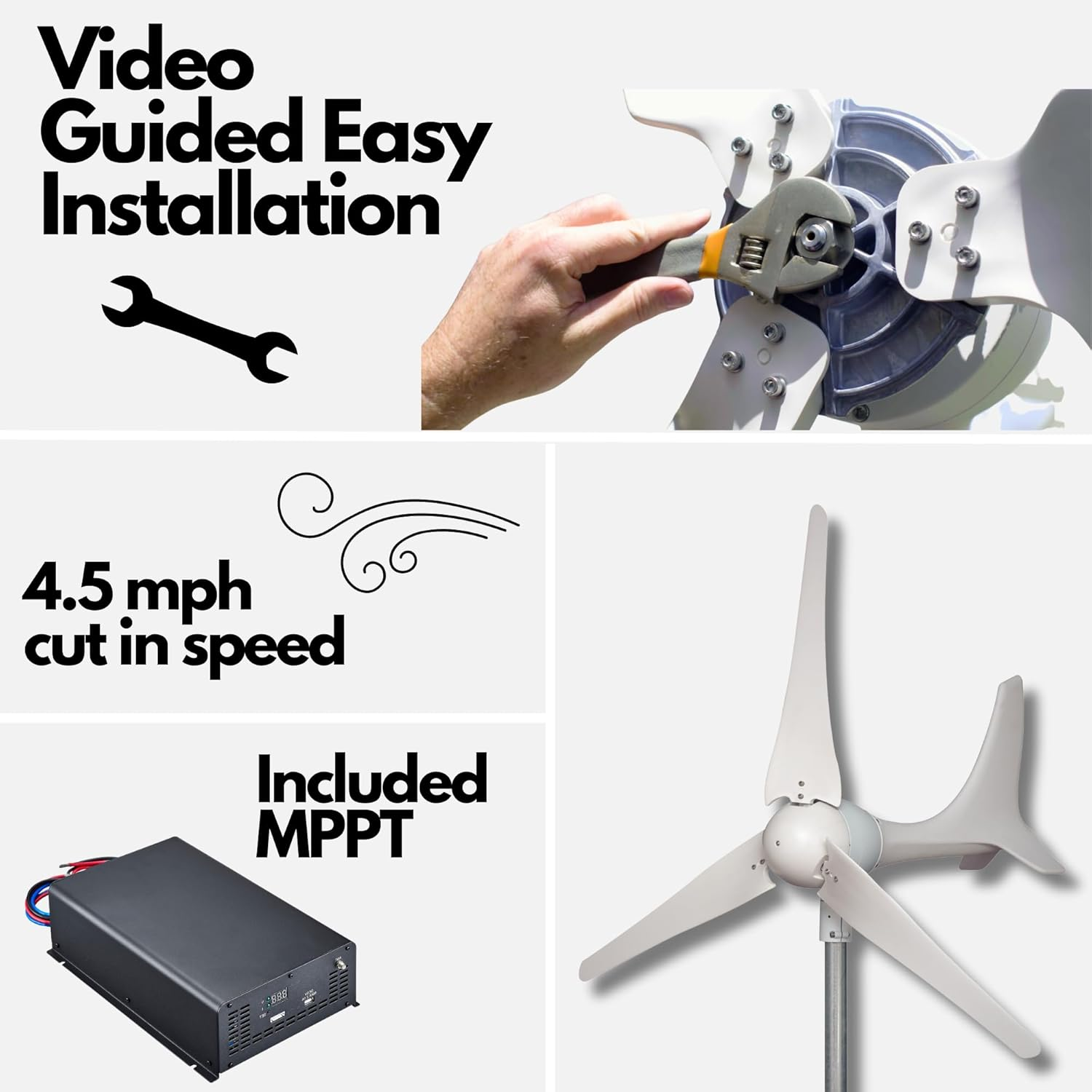

- Startup Speed: 4.5 mph (2 m/s)
- Rated Wind Speed: 28 mph (12.5 m/s)
- Safety Braking: Overspeed cutoff at 1250 RPM with manual override
- Blade Material: Nylon + fiberglass composite
- Rotor Diameter: 4.4 ft (1.35 m)
- System Weight: 26.5 lbs
- Environmental Protection: UV and salt-resistant coating for marine environments
