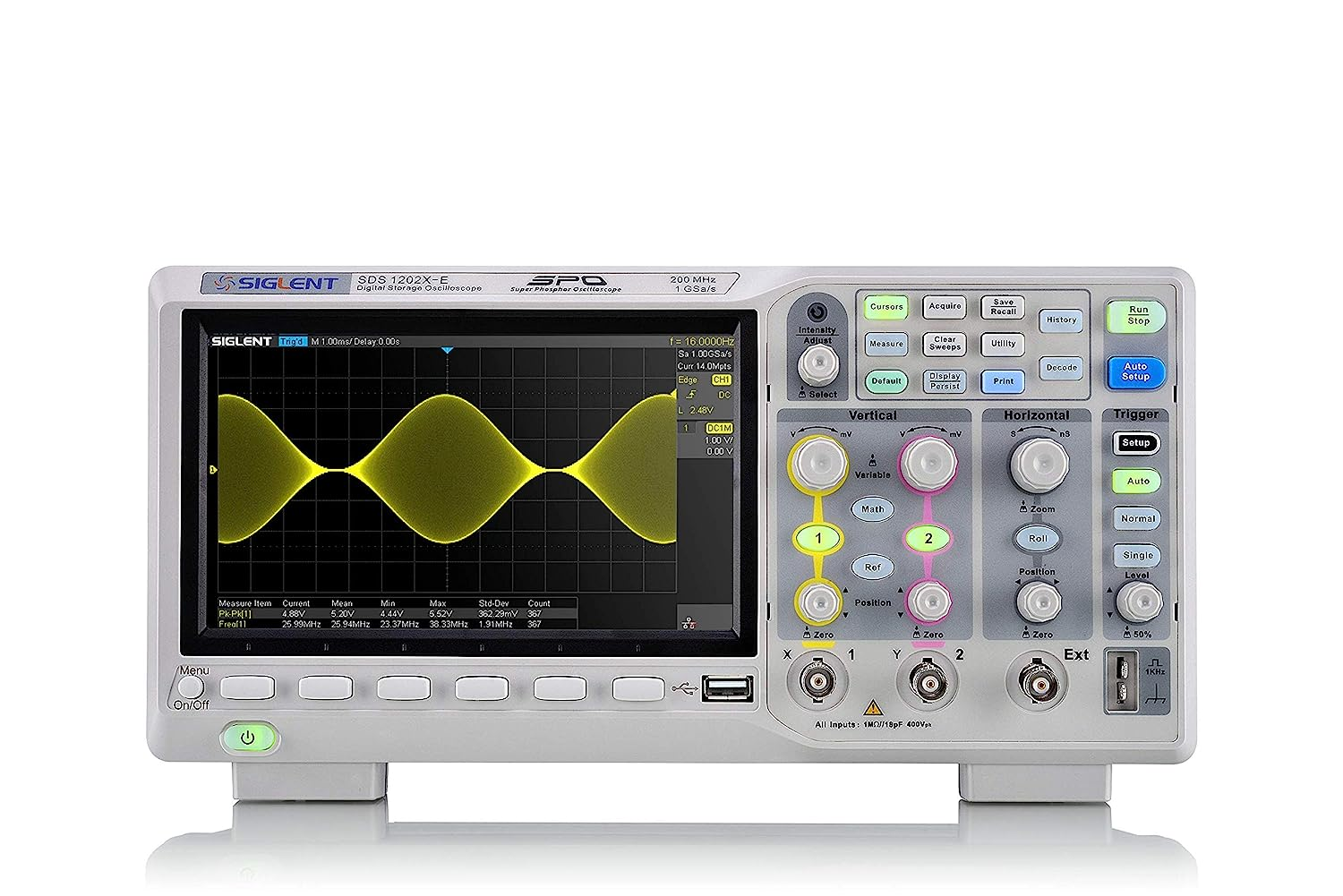

200 MHz Dual-Channel Oscilloscope for Signal Diagnostics
The SDS1202X-E oscilloscope is equipped with dual channels and a 200 MHz bandwidth, offering high-precision waveform capture and real-time analysis. Its SPO technology ensures signal fidelity with ultra-low noise and fast sequence mode.
Ideal for embedded systems, communication buses, and general electronics, it supports serial decoding and a color intensity display for enhanced signal interpretation.
Key Features
- High Resolution: 1GSa/s sampling with 14Mpts memory depth
- Serial Protocol Support: Built-in decoding for I2C, SPI, UART, CAN, LIN
- Advanced Triggering: History mode, segmented memory, FFT resolution
- Color Display: Temperature and intensity grading for waveform clarity
- Compact Form: Portable desktop unit ideal for labs and diagnostics
Specifications Table
| Bandwidth | 200 MHz |
| Channels | 2 |
| Sample Rate | 1 GSa/s |
| Memory Depth | 14 Mpts |
| Display | 7” color TFT LCD |
| Supported Protocols | I2C, SPI, UART, CAN, LIN |
