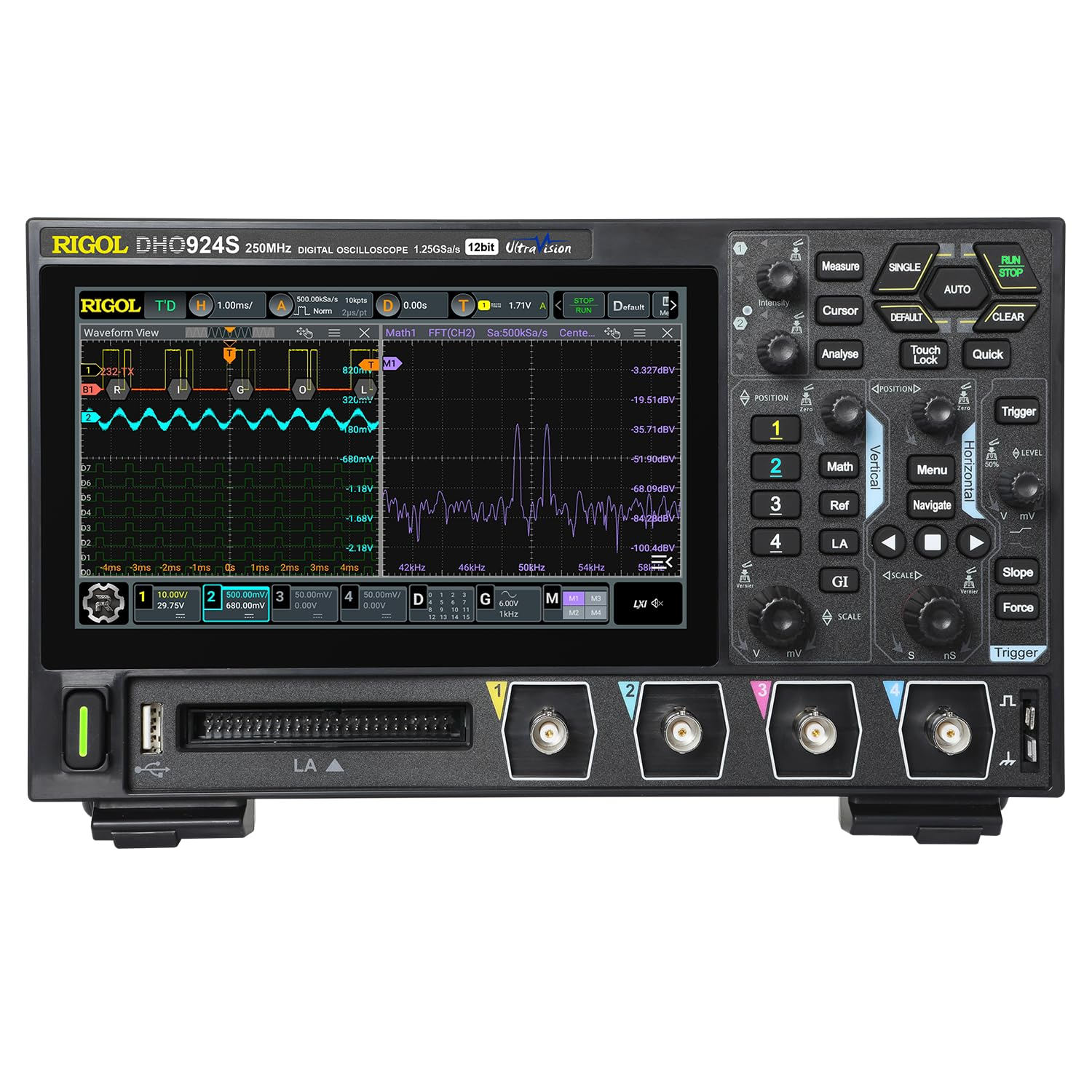

High-Precision Mixed Signal Oscilloscope with Integrated Signal Generator
The DHO924S delivers ultra-low noise and high-resolution signal capture in a compact and efficient design.
Equipped with a 12-bit vertical resolution, 250 MHz bandwidth, and a 1.25 GSa/s real-time sampling rate, this
oscilloscope supports up to 4 analog channels and an optional 16 digital channels for complete embedded analysis.
Designed for R&D, education, and scientific diagnostics, it includes features like Bode plot loop analysis,
waveform search, and arbitrary waveform generation.

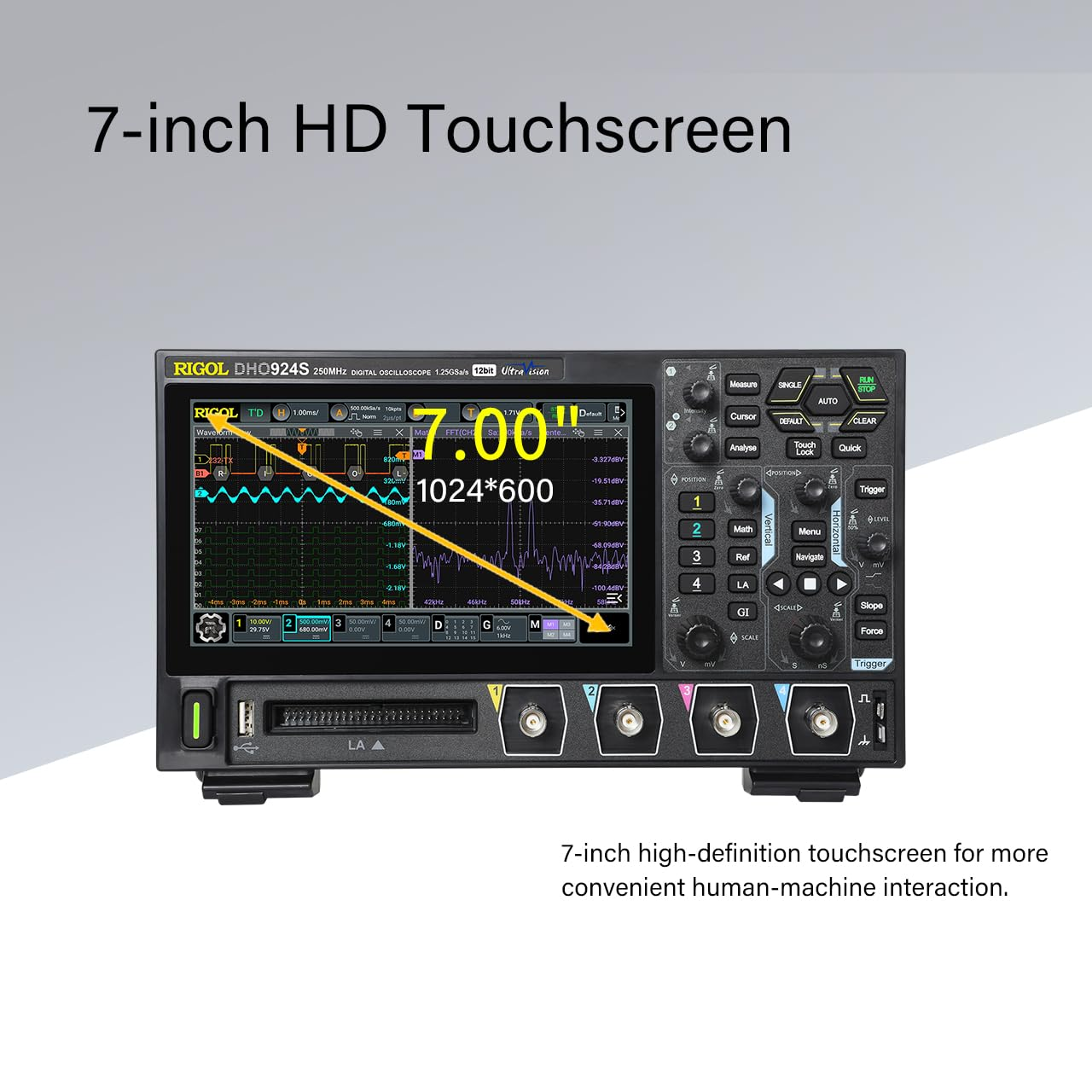

With a user-friendly 7-inch HD touchscreen, USB/LAN/HDMI connectivity, and support for portable Type-C power,
this oscilloscope brings advanced capability to your benchtop or fieldwork.
Key Features
- High-Speed Acquisition: Up to 1 million waveforms/second in UltraAcquire mode
- Integrated Signal Generator: Built-in waveform/function generator for test signal creation
- Advanced Analysis: Supports Bode plot, histogram, and serial/parallel bus decoding
- Memory Depth: 50 Mpts storage for deep signal inspection

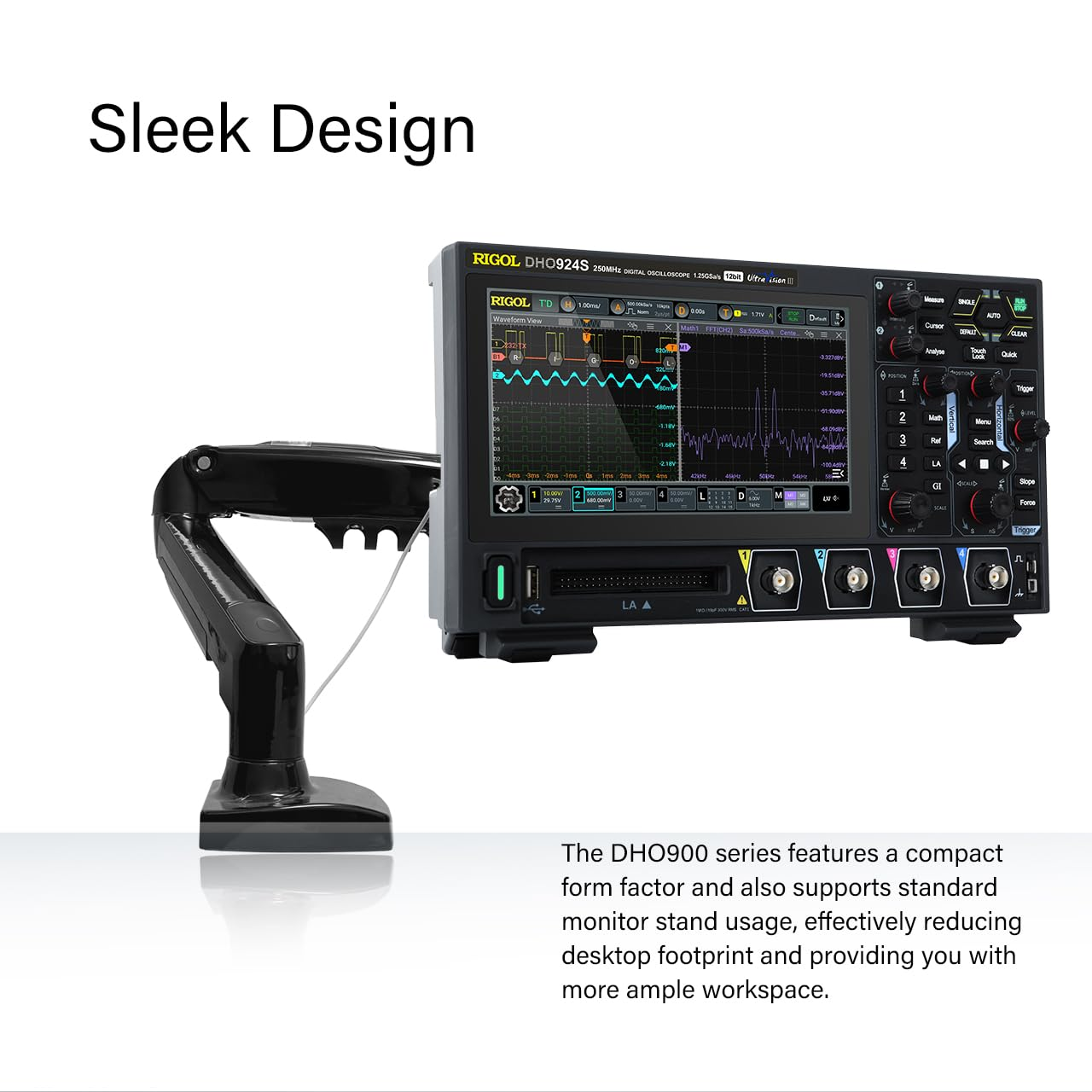

- Compact Design: Portable with monitor stand support, ideal for desktop or field use

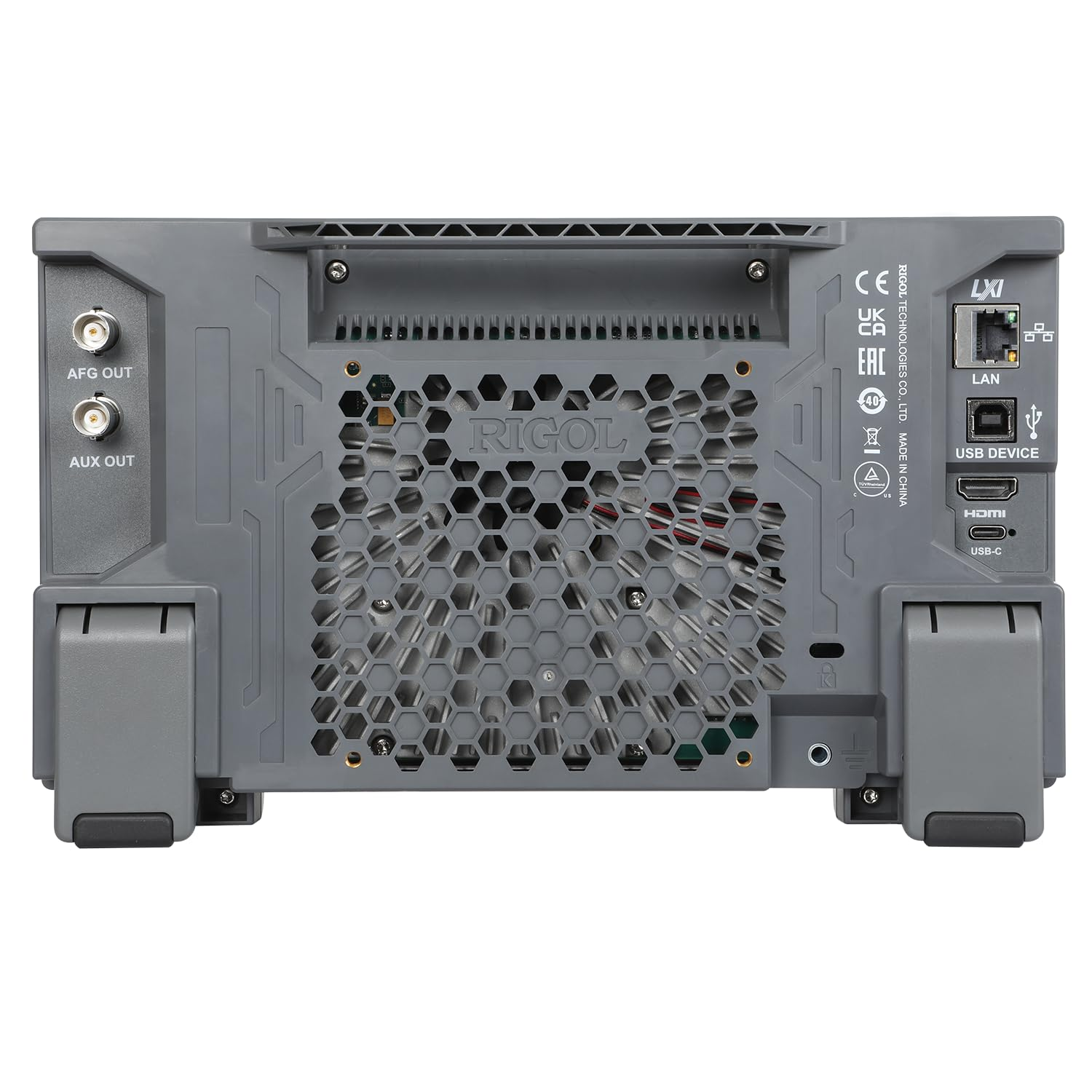

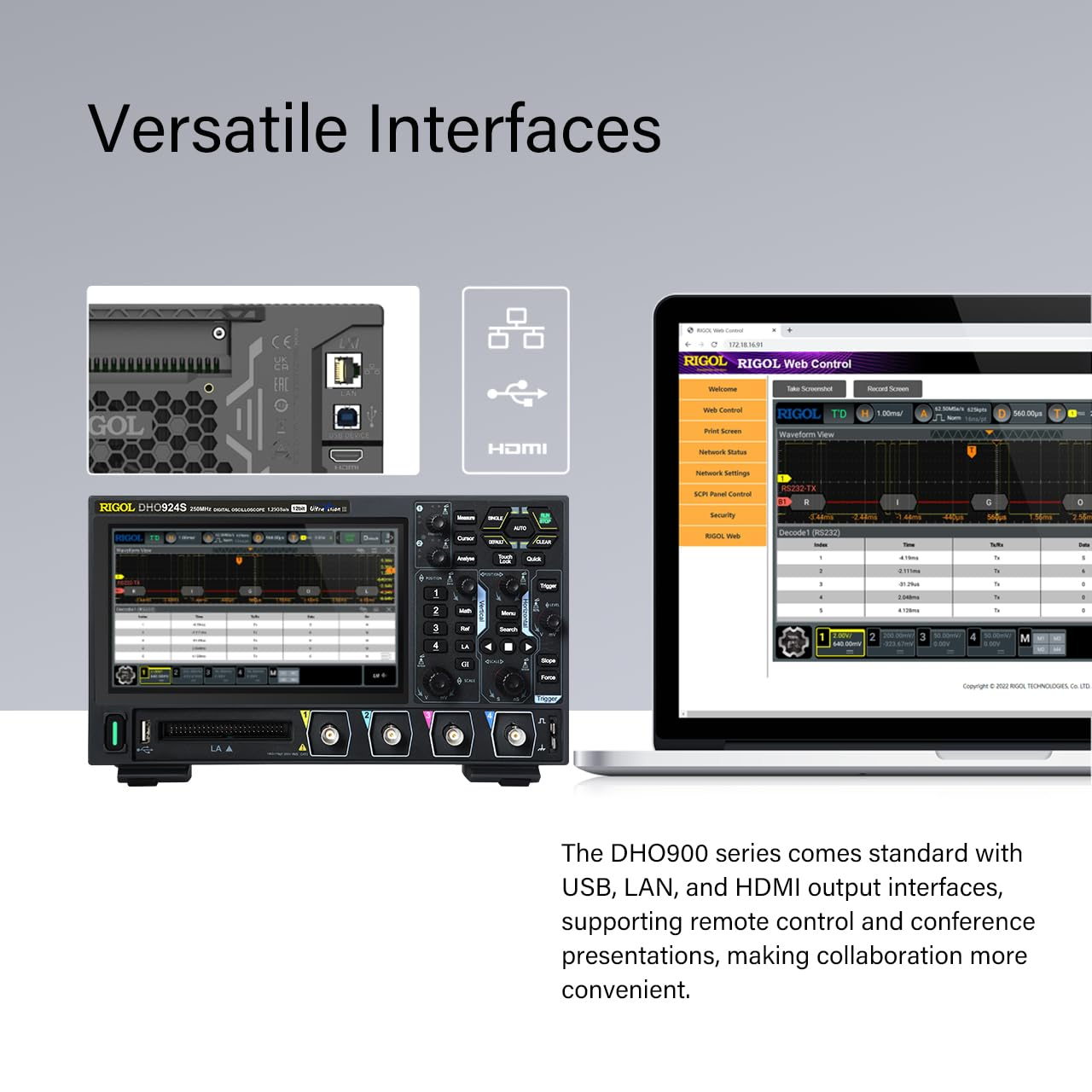

- PC Interfaces: USB Host/Device, LAN, HDMI
Specifications Table
| Model | DHO924S |
| Analog Bandwidth | 250 MHz |
| Vertical Resolution | 12-bit |
| Sampling Rate | 1.25 GSa/s |
| Memory Depth | 50 Mpts |
| Channels | 4 Analog, Optional 16 Digital |
| Display | 7” 1024×600 Touchscreen |
| Built-In Generator | 1-Channel Arbitrary Function Generator |
| Waveform Capture Rate | Up to 1,000,000 wfms/s (UltraAcquire mode) |
| Connectivity | USB, LAN, HDMI, Type-C Power Input |
| Dimensions | 10.5 × 6.4 × 3.0 in (265.36 × 161.75 × 77.38 mm) |
| Weight | 3.9 lbs (1.78 kg) |
| Included Accessories | 4× probes, USB cable, power cable, ground wire |
