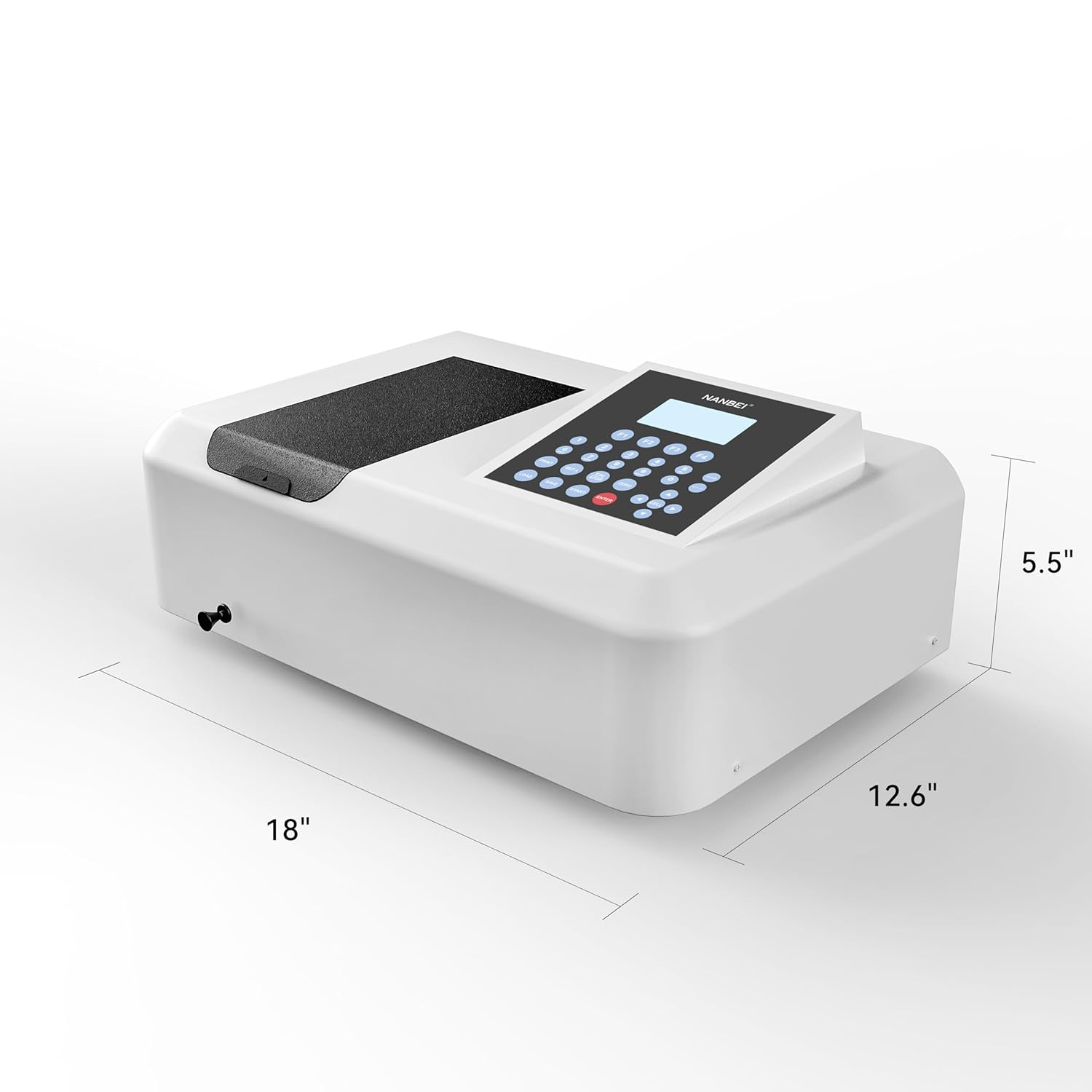

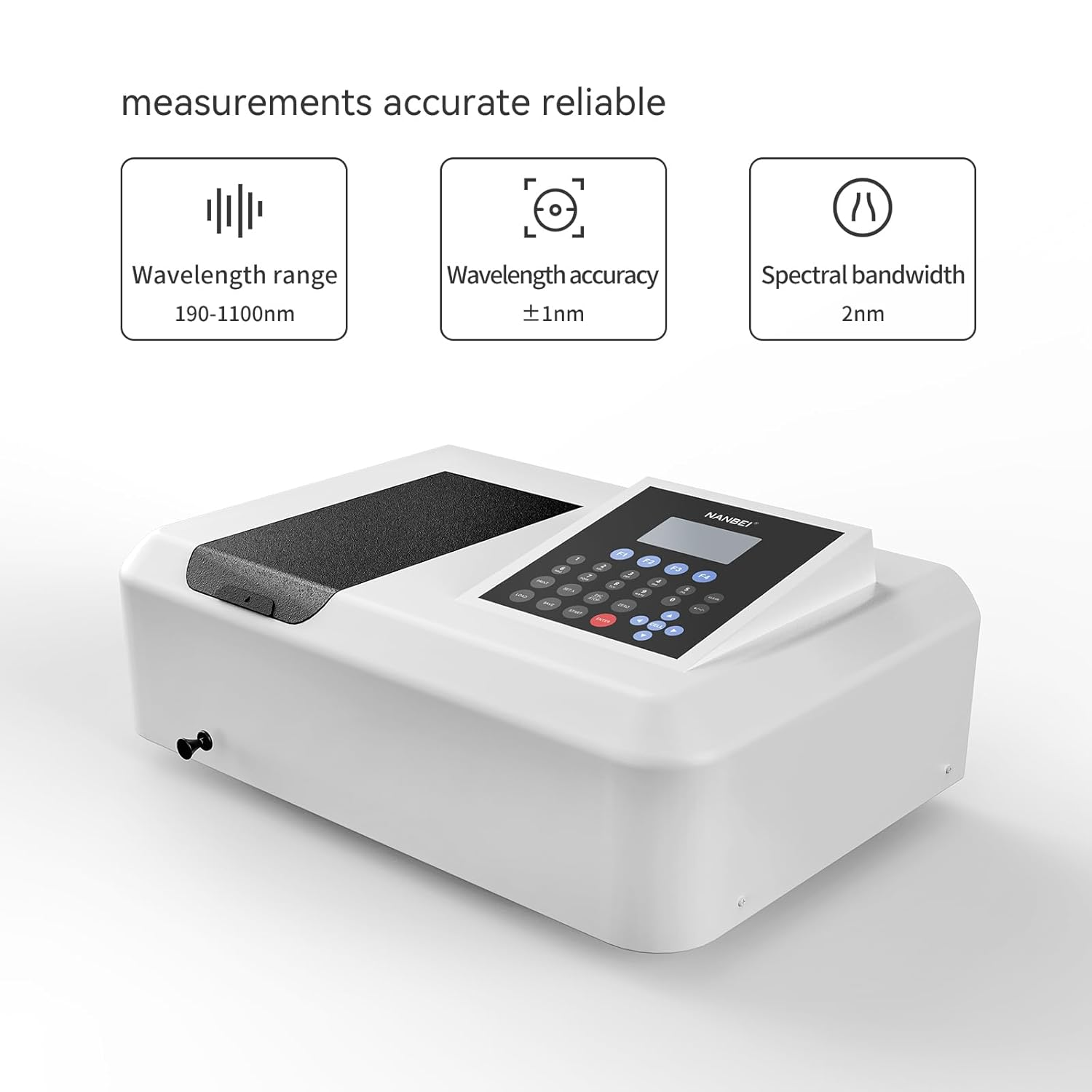

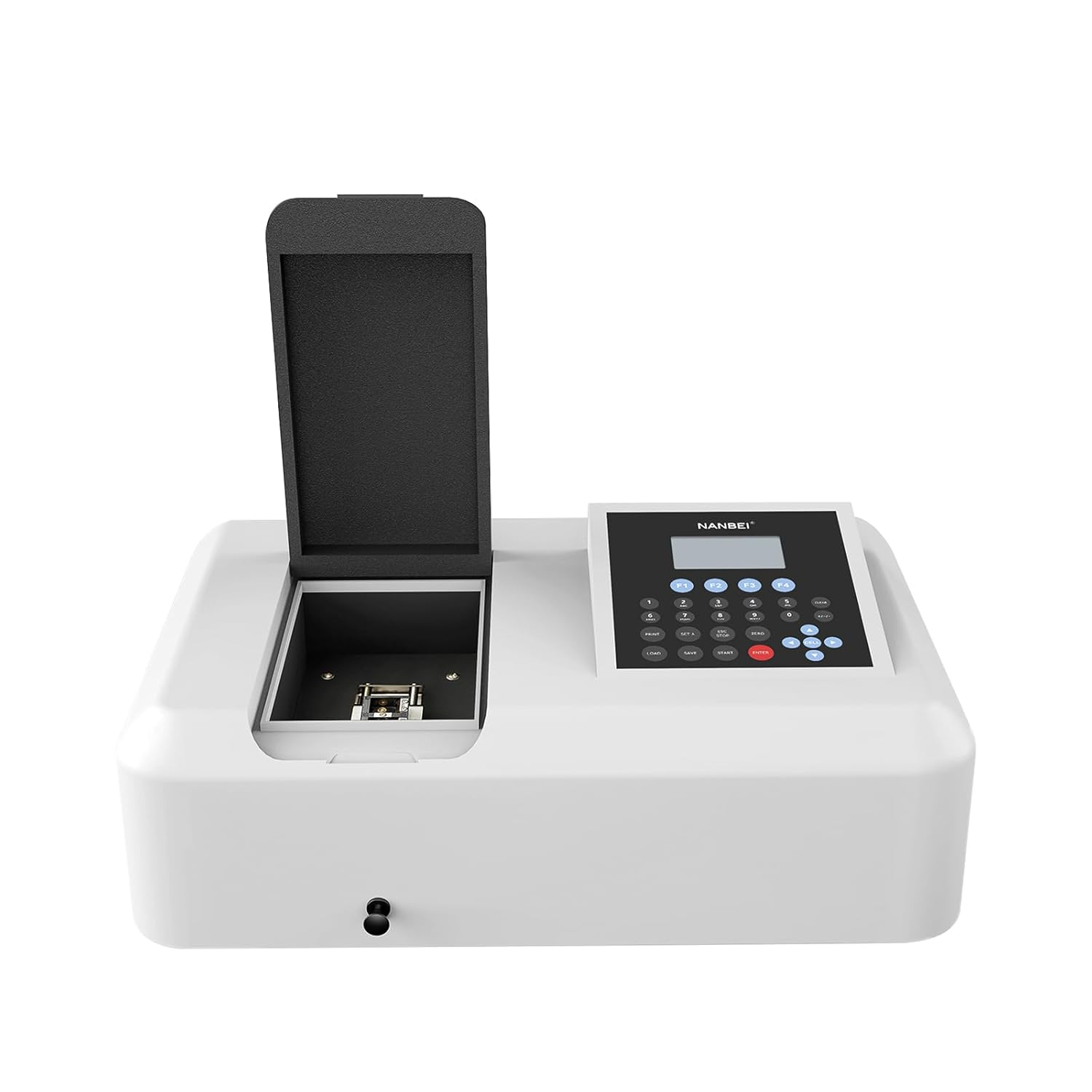

Portable UV-Visible Spectrophotometer for Laboratory and Educational Use
This ultraviolet-visible (UV-Vis) spectrophotometer offers reliable performance and fast digital readout
across a wide spectral range from 190–1100 nm. Designed for educational labs, environmental testing,
and general spectroscopy applications, it features a USB interface for data transfer and a 4-position
cuvette holder for consistent measurement reproducibility.
The device includes a tungsten lamp light source, LCD screen, and ±1 nm wavelength accuracy,
making it ideal for use in universities, food labs, environmental stations, and petrochemical workflows.
Kit Components
- (1) UV-Vis spectrophotometer unit
- (1) USB data output interface
- (1) Power adapter (90–250V, 50–60 Hz)
- (4) 1×1 cm standard glass cuvettes
- Operation manual and calibration guide
Key Features
- Spectral Range: 190 to 1100 nm
- Accuracy: ±1 nm wavelength precision
- Bandwidth: 4 nm
- Interface: USB connectivity for PC export and digital analysis

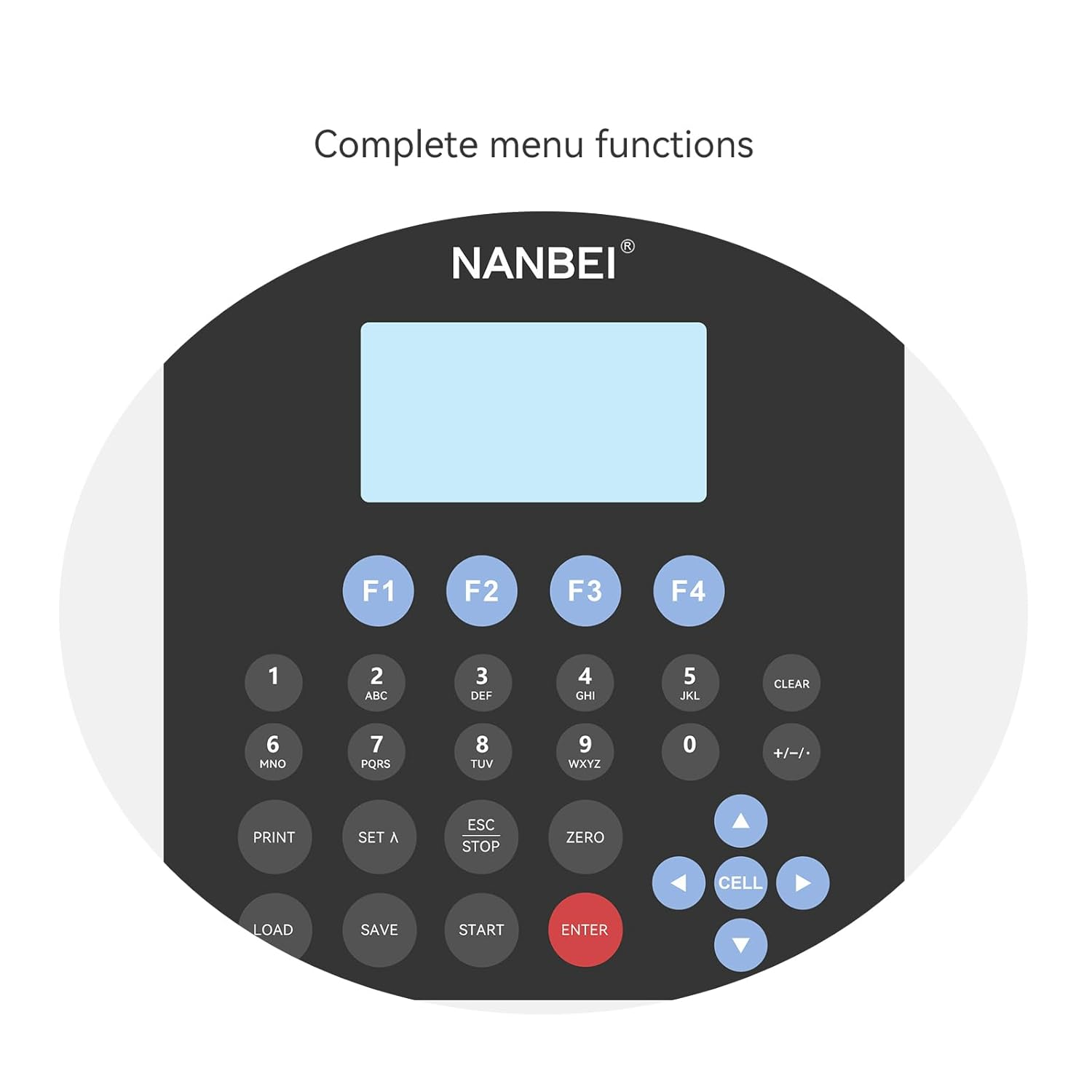

- Ease of Use: Simple blank setting, full-scale adjustment, and sample reading
- Applications: Ideal for chemistry labs, educational institutions, and environmental testing
Specifications Table
| Wavelength Range | 190–1100 nm |
| Wavelength Accuracy | ±1 nm |
| Spectral Bandwidth | 4 nm |
| Interface | USB Output |
| Light Source | Tungsten lamp |
| Display | LCD |
| Included Cuvettes | 4 pcs, 1×1 cm standard glass |
| Operating Voltage | 90–250V, 50–60Hz |
| Preheat Time | 30 minutes recommended |
| Applications | Medical, food, petrochemical, academic, environmental |
