High-Speed Mixed Signal Oscilloscope with Multi-Instrument Integration
The MSO5104 is a compact, high-performance mixed signal oscilloscope designed for advanced testing environments.
With UltraVision II architecture, it combines a high waveform capture rate, wide analog bandwidth, and deep memory
depth in a portable, touchscreen-enabled package. Integrated with 7 instruments in one, this model is ideal for
engineers requiring flexibility, scalability, and high-resolution analysis.
Suitable for research, product development, and electronic diagnostics, the MSO5104 supports upgradeable channel count, bandwidth,
and advanced protocol decoding features through software keys—future-proofing your investment.
Key Features

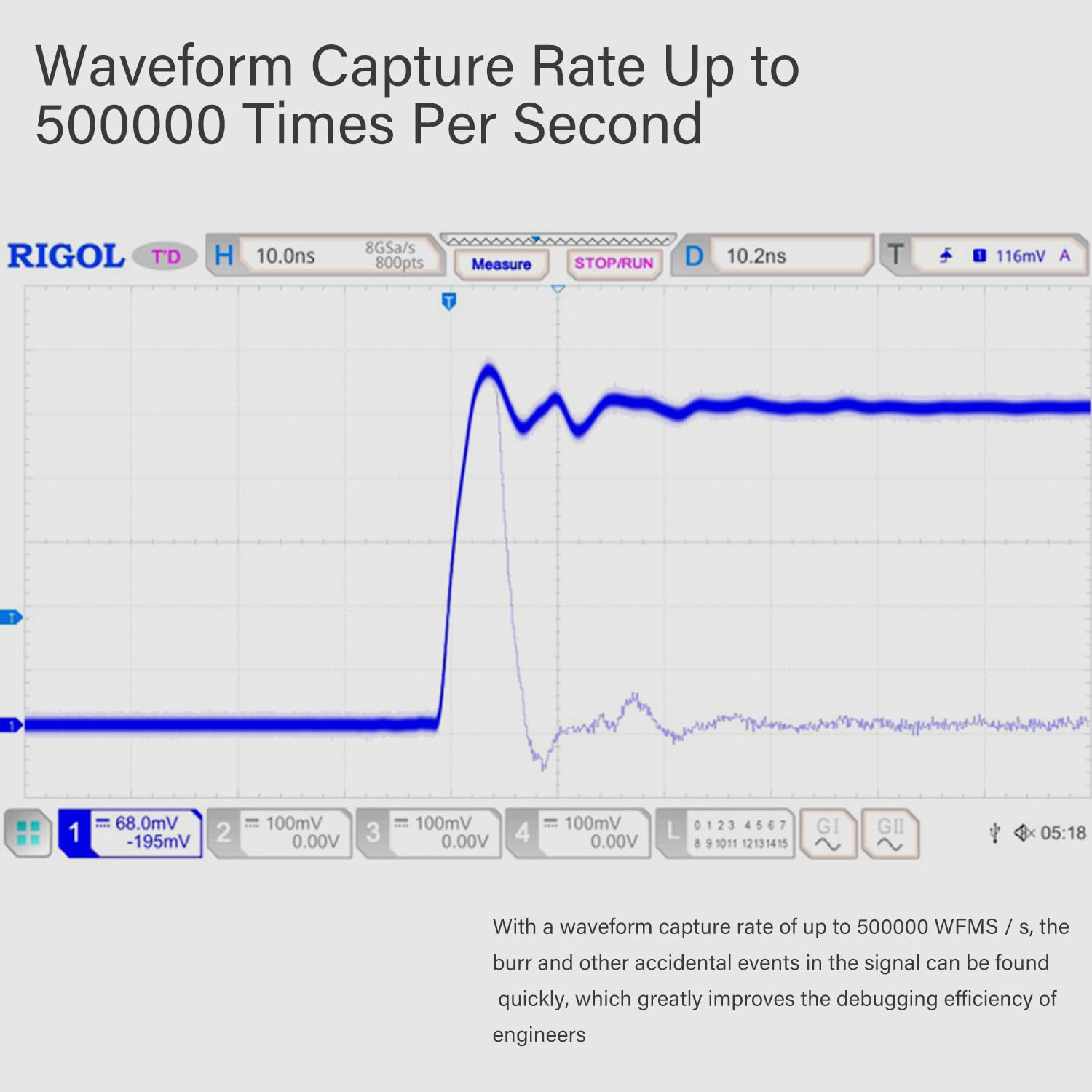

- UltraVision II Platform: Supports 500,000 waveform captures per second
- Scalable Hardware: Software upgrades available for bandwidth and channel expansion
- Touchscreen Control: 9-inch capacitive multitouch display for intuitive navigation
- Integrated Functions: Logic analyzer, protocol analyzer, waveform generator, voltmeter, and more
- High-Speed Memory: Up to 200 Mpts optional deep memory
Specifications Table
| Model | MSO5104 |
| Analog Bandwidth | 100 MHz (upgradeable to 200, 350 MHz) |
| Analog Channels | 4 (upgradeable) |
| Digital Channels | 16 (LA probe required) |
| Sample Rate | Up to 8 GSa/s |
| Memory Depth | Up to 200 Mpts (optional) |
| Waveform Capture Rate | > 500,000 wfms/s |
| Display | 9” capacitive multitouch LCD |
| Functionality | 7-in-1 instrument integration |
| Upgradeable Features | Channels, bandwidth, protocols, analysis functions |
