Description

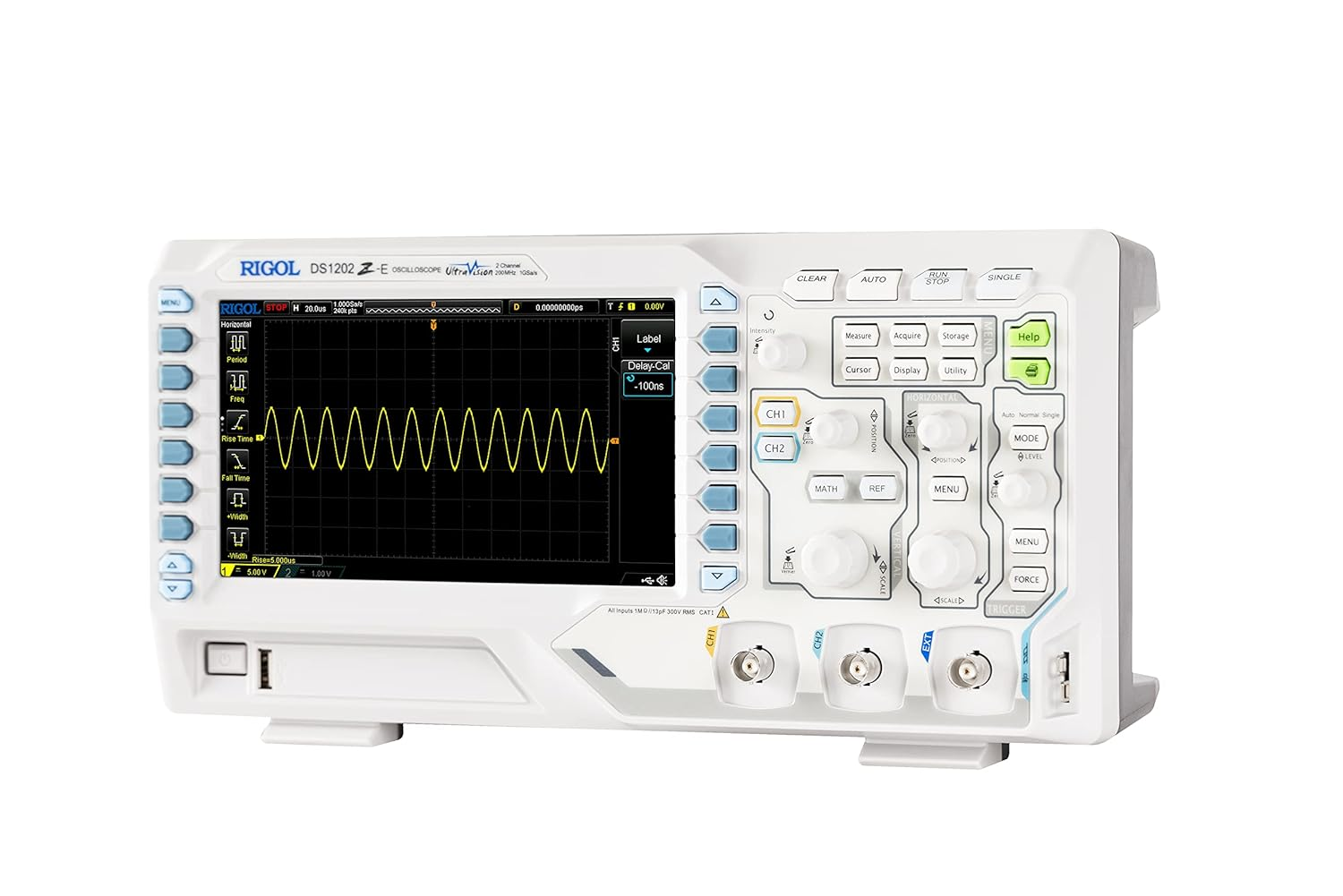

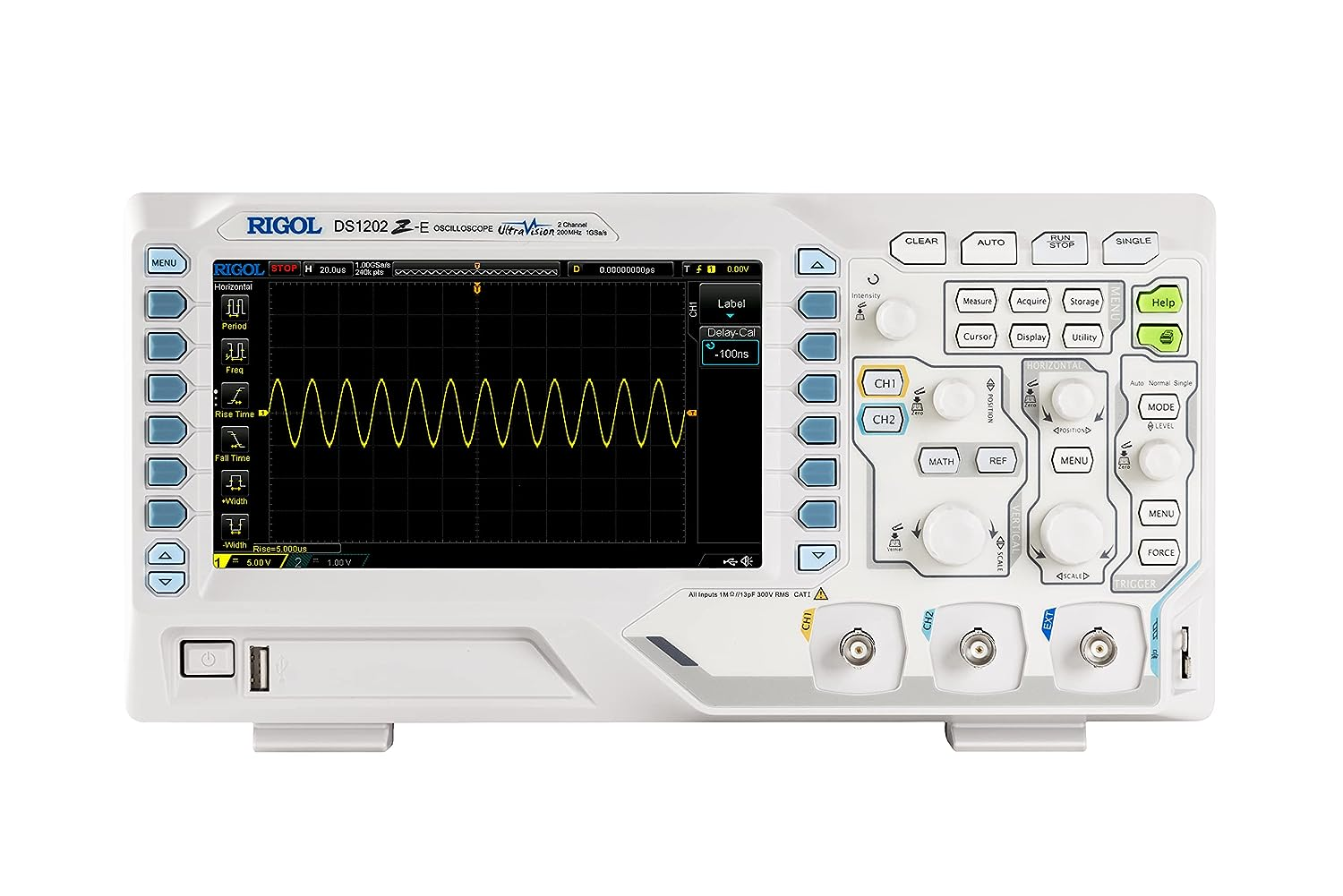

The DS1202Z-E is a 200 MHz digital oscilloscope featuring 2 analog channels and up to 1 GSa/s real-time sampling rate. With 24 Mpts memory depth and a waveform capture rate up to 30,000 wfms/s, it delivers reliable signal visualization for R&D and industrial applications.
Key Features
- Bandwidth: 200 MHz across 2 channels
- Sample Rate: 1 GSa/s real-time
- Memory Depth: 24 Mpts per channel
- Waveform Capture: Up to 30,000 wfms/s
- Display: 7″ WVGA TFT LCD
- Trigger & Decode: Various trigger modes and bus decoding
Specifications Table
| Analog Channels | 2 |
|---|---|
| Bandwidth | 200 MHz |
| Real-Time Sample Rate | 1 GSa/s |
| Memory Depth | 24 Mpts |
| Waveform Rate | 30,000 wfms/s |
| Display | 7″ TFT LCD (800×480) |
