Description
<
div>Pure sine wave output
Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
Built-in PWM 50A/60A solar charge controller
New SUB working mode(Solar-Utility-Battery working mode) for 4K-5K series

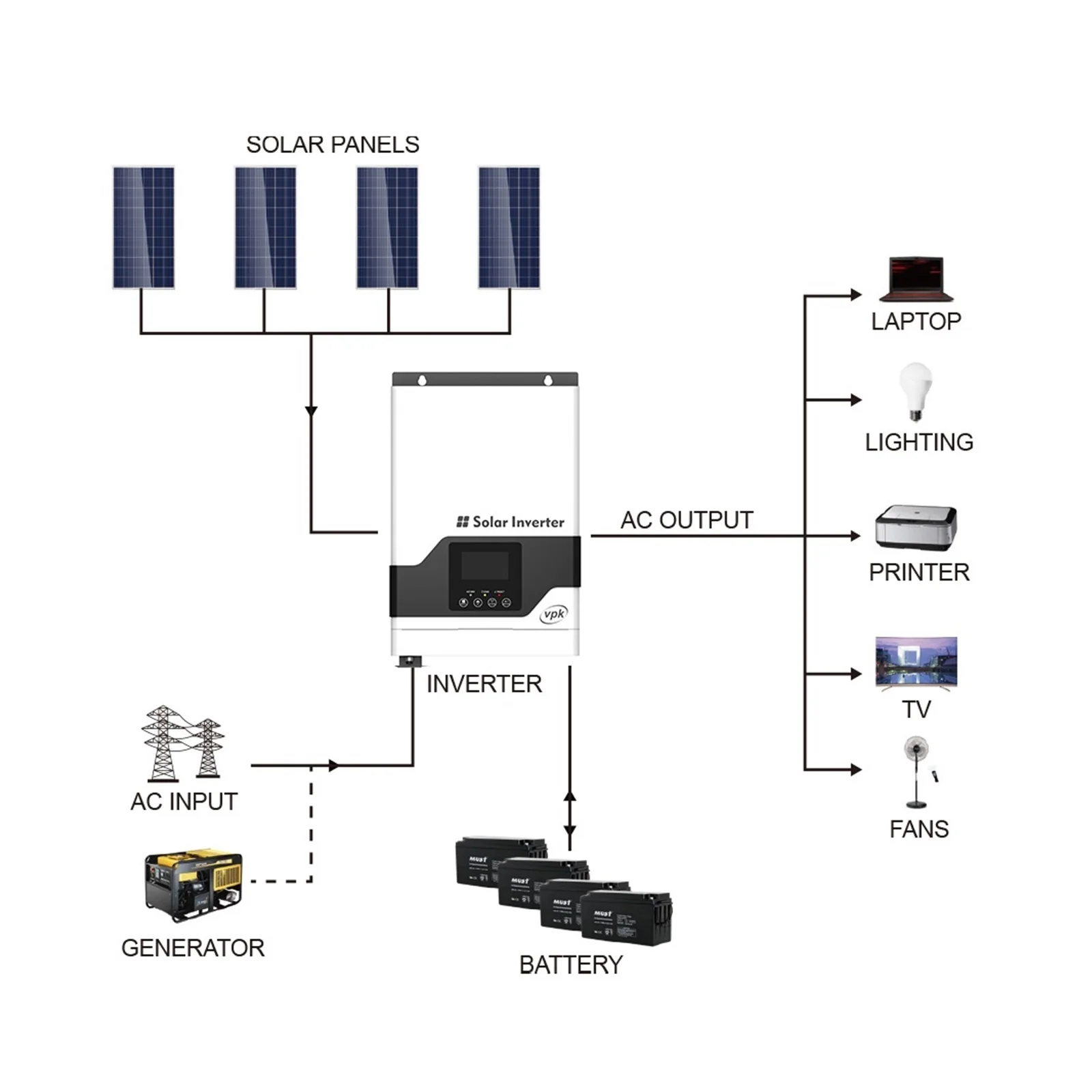

Combining solar system, AC utility, and battery power source to supply continuous power
<
ul>

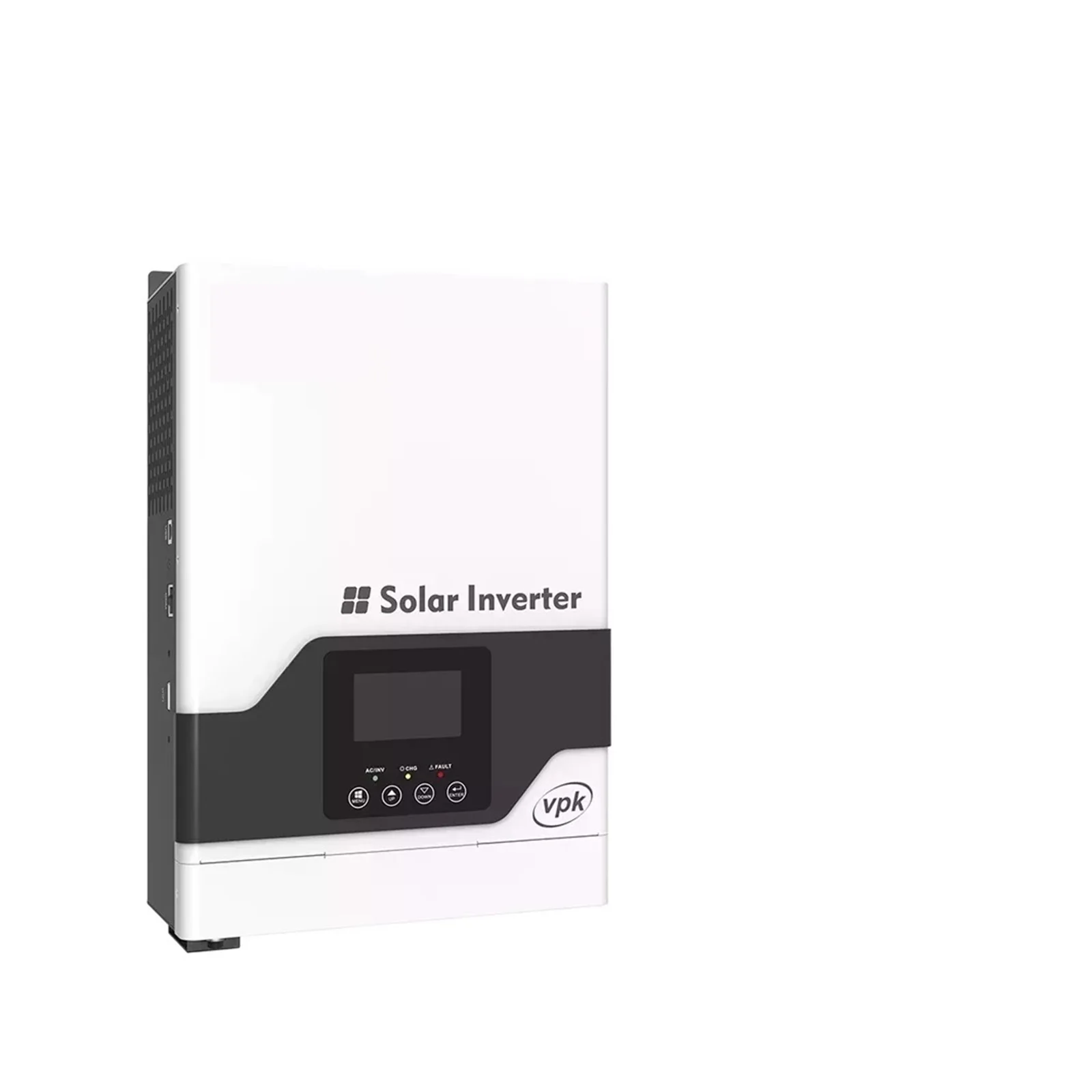

High Frequency Off Grid Solar Inverter
PV1800 VPK Series (1-5KW)
PV1800 VPK is a multi-function inverter/charger, combining functions of inverter, PWM solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
Features:
Pure sine wave output
Smart LCD setting(Working modes, Charge Current, Charge Voltage, etc.)
Built-in PWM 50A/60A solar charge controller
New SUB working mode(Solar-Utility-Battery working mode) for 4K-5K series
Combining solar system, AC utility, and battery power source to supply continuous power
Overload, short circuit and deep discharge protection
Parallel operation with up to 3 units (Available for 4KW/5KW only)
Cold start function
Support USB, RS485 monitoring function
remote monitoring (optional)
Compatible to generator
MODEL
PV18-1012 VPK
PV18-2024 VPK
PV18-3024 VPK
PV18-4048 VPK
PV18-5048 VPK
Nominal Battery System Voltage
12VDC
24VDC
48VDC
INVERTER OUTPUT
Rated Power
1000W
2000W
3000W
4000W
5000W
Surge Power
2000W
4000W
6000W
8000W
10000W
Waveform
Pure sine wave
AC Voltage Regulation (Batt.Mode)
(220AC~240VAC)±5%
Inverter Efficiency(Peak)
93%
Transfer Time
10ms (UPS / VDE4105) 20ms (APL)
AC INPUT
Voltage
230VAC
Selectable Voltage Range
170~280VAC(For personal computer) / 90~280VAC(For home appliances) / 184~253VAC(VED4105)
Frequency Range
50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage
12VDC
24VDC
48VDC
Floating Charge Voltage
13.7VDC
27.4VDC
54.8VDC
Overcharge Protection
15.5VDC
30VDC
60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage
55VDC
75VDC
80VDC
105VDC
Standby Power Consumption
2W
2W
2W
PWMMaximum Solar Charge Current
50A
50A
60A
60A
Maximum AC Charge Current
10A or 20A
10A or 20A
20A or 30A
60A
Maximum ChargeCurrent
70A
70A
80A
120A
MECHANICAL SPECIFICATIONS
