Description
This 48V rack-mounted LiFePO battery offers 1520kWh of reliable solar energy storage; engineered for home and commercial systems. It provides long cycle life with over 6000 charging cycles at 80% depth of discharge and includes a built-in BMS with overcharge; overdischarge; overcurrent; and thermal protections. The lightweight form factor supports rack and parallel mounting; and the system integrates with both CAN and RS485 communication protocols.
Key Features
- 1520kWh energy storage capacity for solar and backup applications
- Over 6000 charge cycles at 80% DOD for long operational lifespan
- Built-in battery management system for enhanced safety

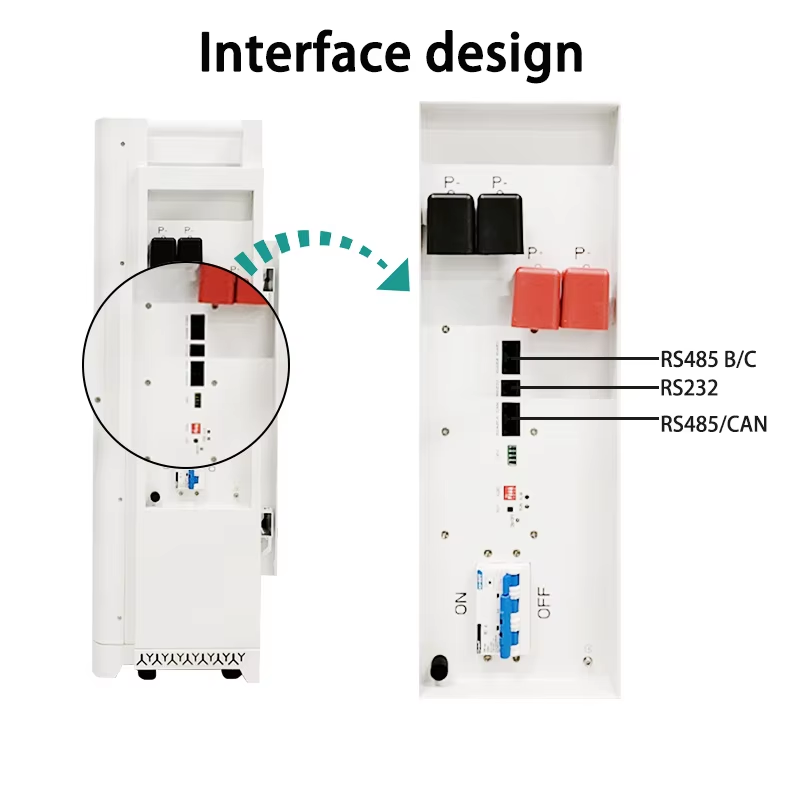

- CAN and RS485 communication for smart system integration
- Supports rack mounting and parallel expansion configurations
- Wide temperature operating range and IP66-rated protection
Specifications Table
| Nominal Voltage | 48V / 51.2V |
| Capacity Options | 100Ah / 200Ah |
| Energy | 4.8kWh 10.24kWh |
| Max Discharge Current | 100A |
| Operating Temp | -20C to 60C |
| Communication | CAN or RS485 |
| Cycle Life | 6000+ @ 80% DOD |
