Description

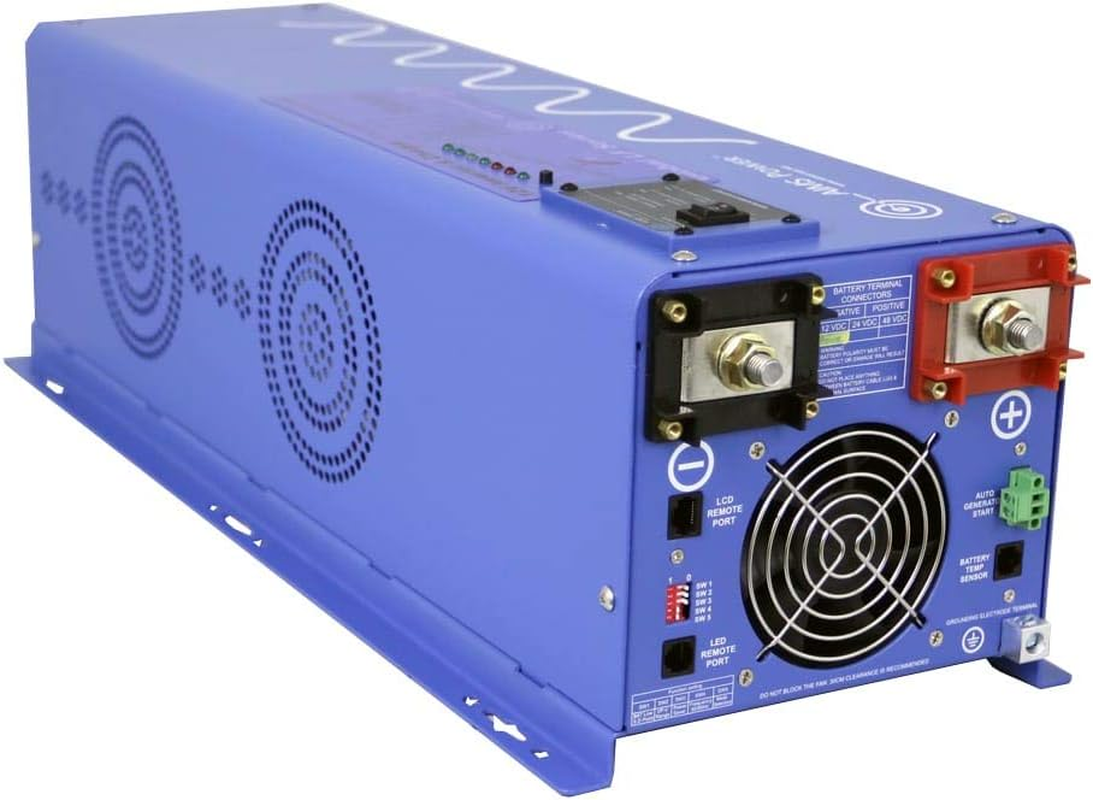

- POWERFUL: 4000W continuous, 12000W surge for 20 seconds, 48VDC, 33 amps, 120 / 240 VAC split phase pure sine clean power, low frequency, auto transfer switch and 40A smart battery charger for 8 different battery technologies including Lead, Gel, AGM, LiFePO4 and more.
- PROTECTIONS: Overload, over temp, high voltage, low voltage, short circuit, internally fused, low and high voltage alarm, cooling fan, and isolated ground neutral.
- FEATURES: AC direct connect terminal block, charge current control dial, dip switches to set priorities, auto gen start, conformal coated, power save mode and battery temp sensor. Only one set of cables needed. Optional remote available.
- APPLICATIONS: Ideal for large applications going back and forth from shore/generator and inverter power automatically. Homes, boats, RVs, solar, mobile business & work trucks. 24 Volt more efficient and can use smaller cables. Offgrid & back-up power.
- TRUST AIMS: Buy with confidence. In business for over 20 year. All tech and warranty support in Nevada.
The powerful 40 amp battery charger, with power factor corrected, uses 240V input and 20-30% less energy from AC input than a standard charger The overload capacity is 12000 watts, 300% of continuous output for up to 20 seconds to reliably support tools and equipment
The high quality, heavy duty transformers have been consistently improved over the  years to achieve the best balance of conversion efficiency, idle consumption and minimum THD The AC battery priority switch and auto generator start functionality make it ideal to work in either backup power or renewable energy applicationsThe conformal coating on this inverter protects it against atmospheric water vapor and condensation while remaining fully operational
In AC priority mode, when utility AC power cuts off, the transfer relay is de-energized and the load is automatically transferred to the inverter output Once the qualified AC utility is restored, the relay is energized and the load is automatically transferred to AC utility
When customized to battery priority mode via the DIP switch, the inverter will extract power from external power sources in renewable energy systems and a minimal cycle of the battery will be required With the availability of the auto generator start, an electrical generator can be integrated into the system as a backup and started when the battery voltage gets low
