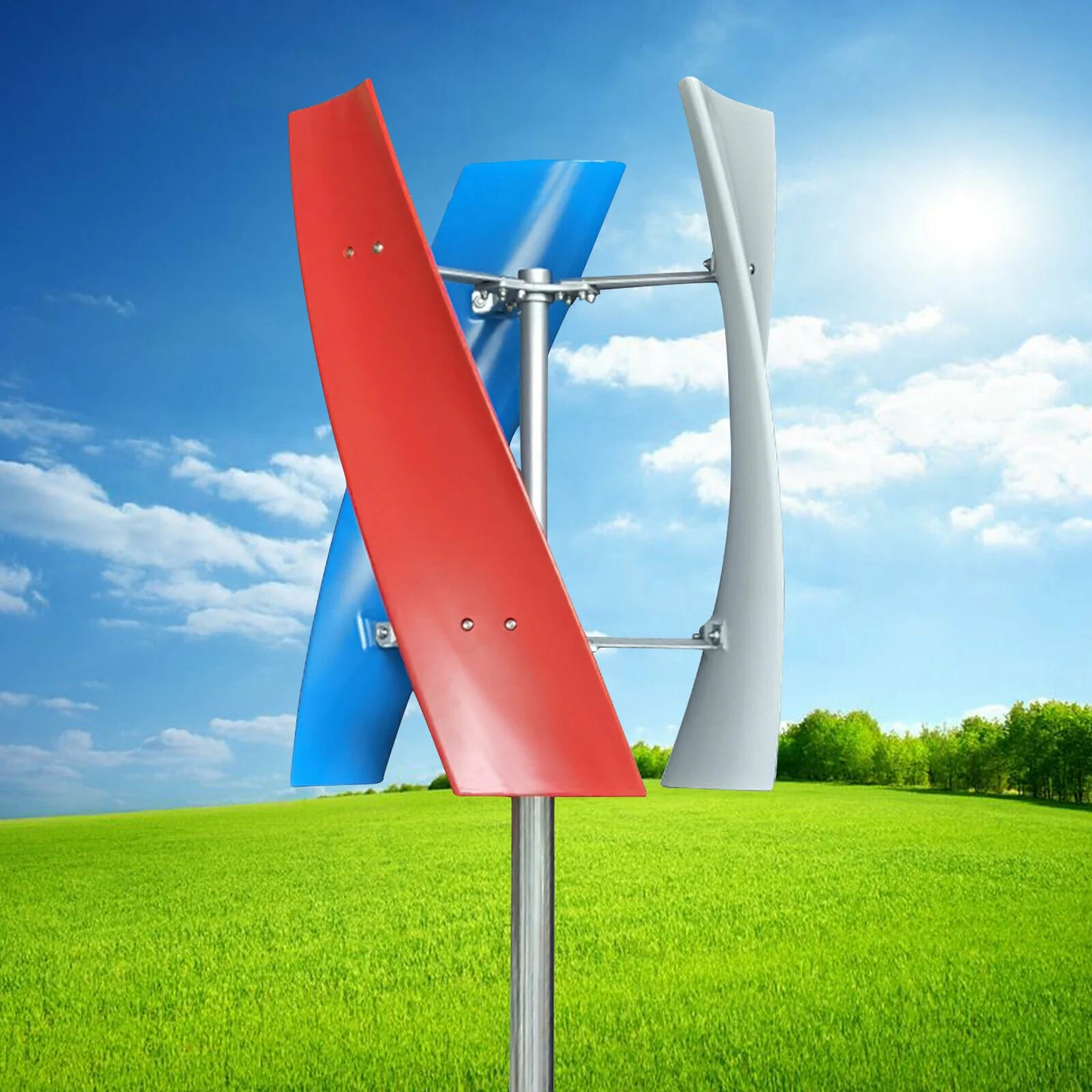

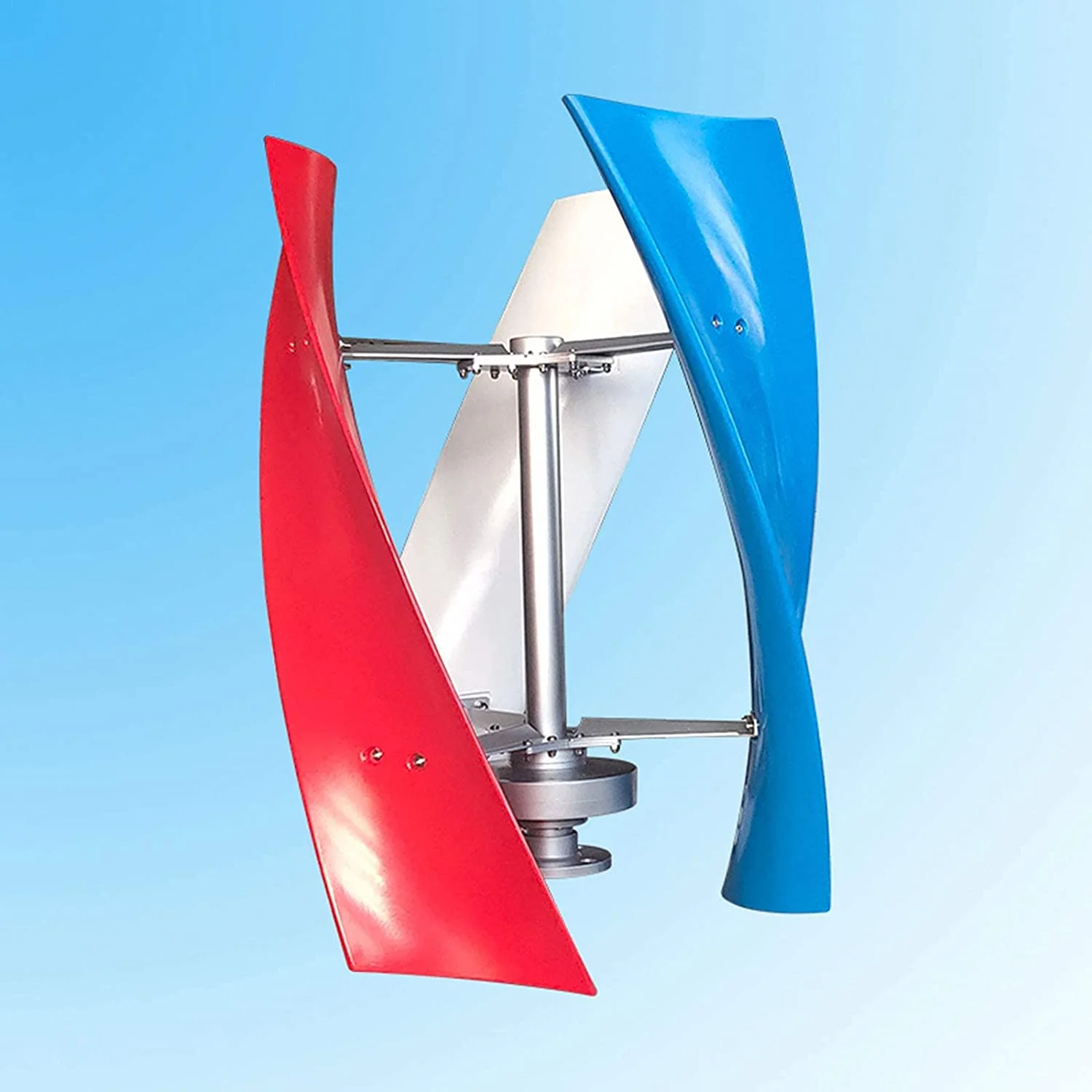

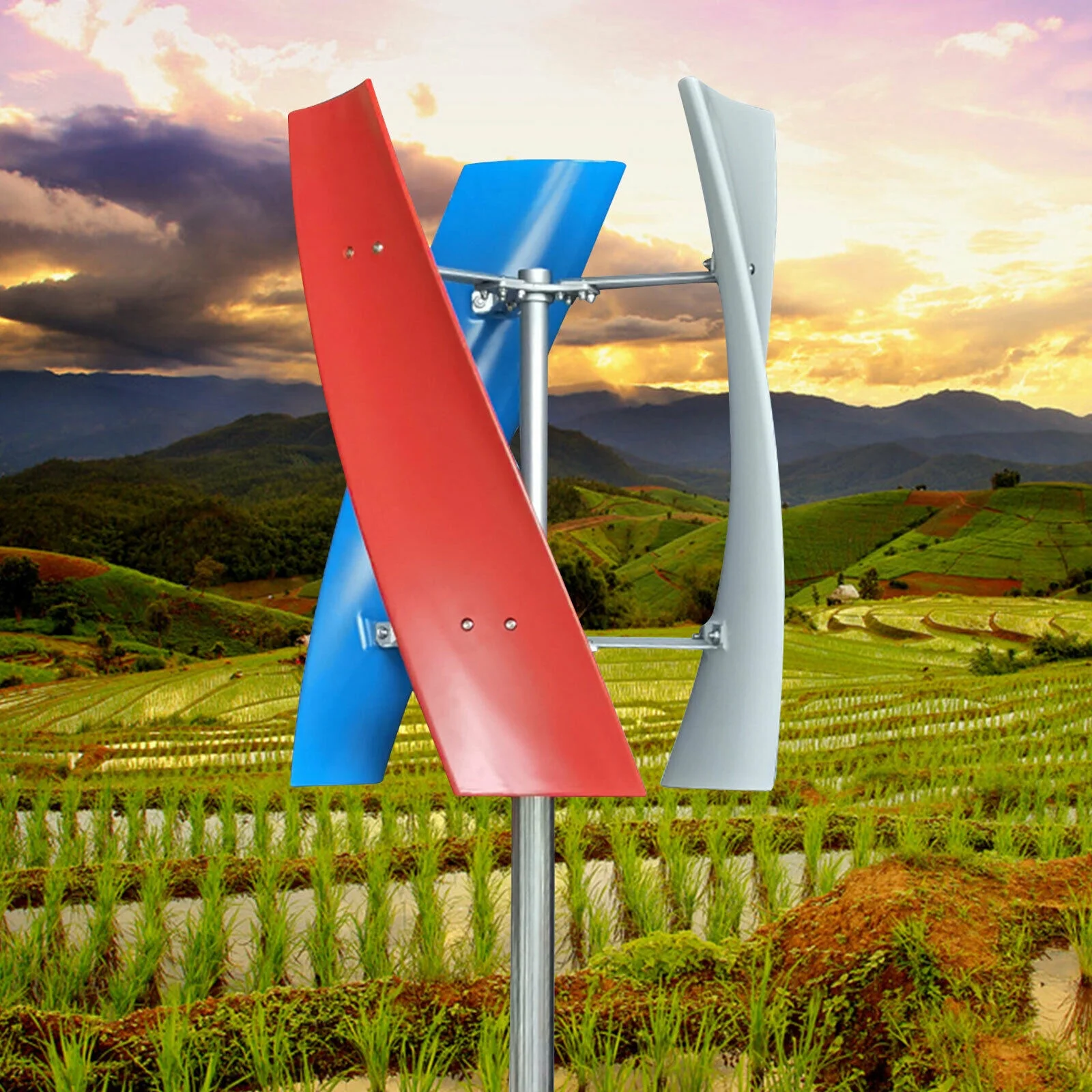

Lightweight 3-Blade Wind Turbine for Small-Scale Energy Systems
This 3-blade wind turbine kit is a compact solution for generating renewable power in residential or remote off-grid environments. It features a weather-sealed maglev generator and lightweight fiberglass blades designed for efficiency and longevity. Suitable for 12V and 24V battery systems, it starts generating power at low wind speeds and regulates output automatically.

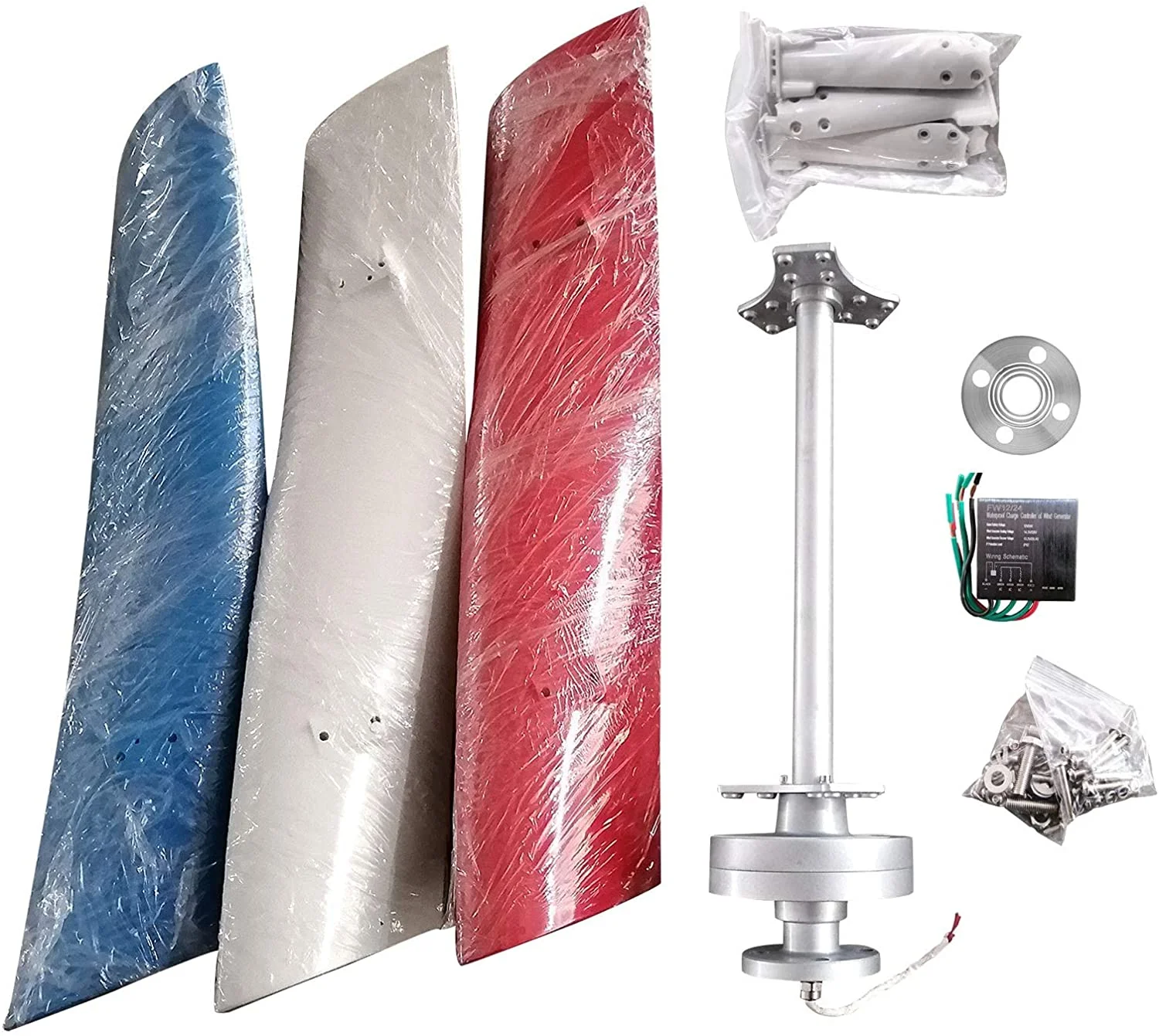

Kit Components

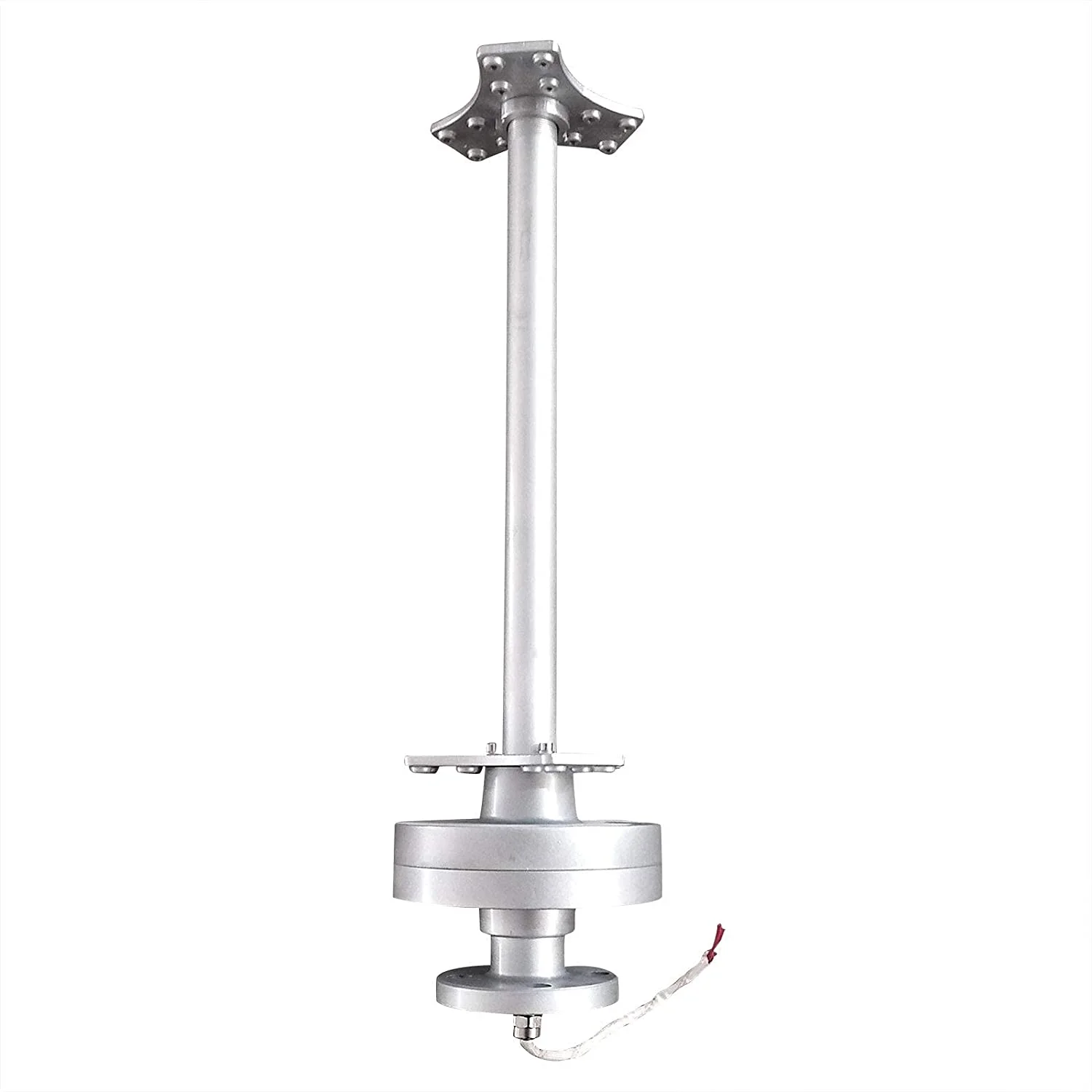

- (1) Wind Turbine Generator with 3 fiberglass blades

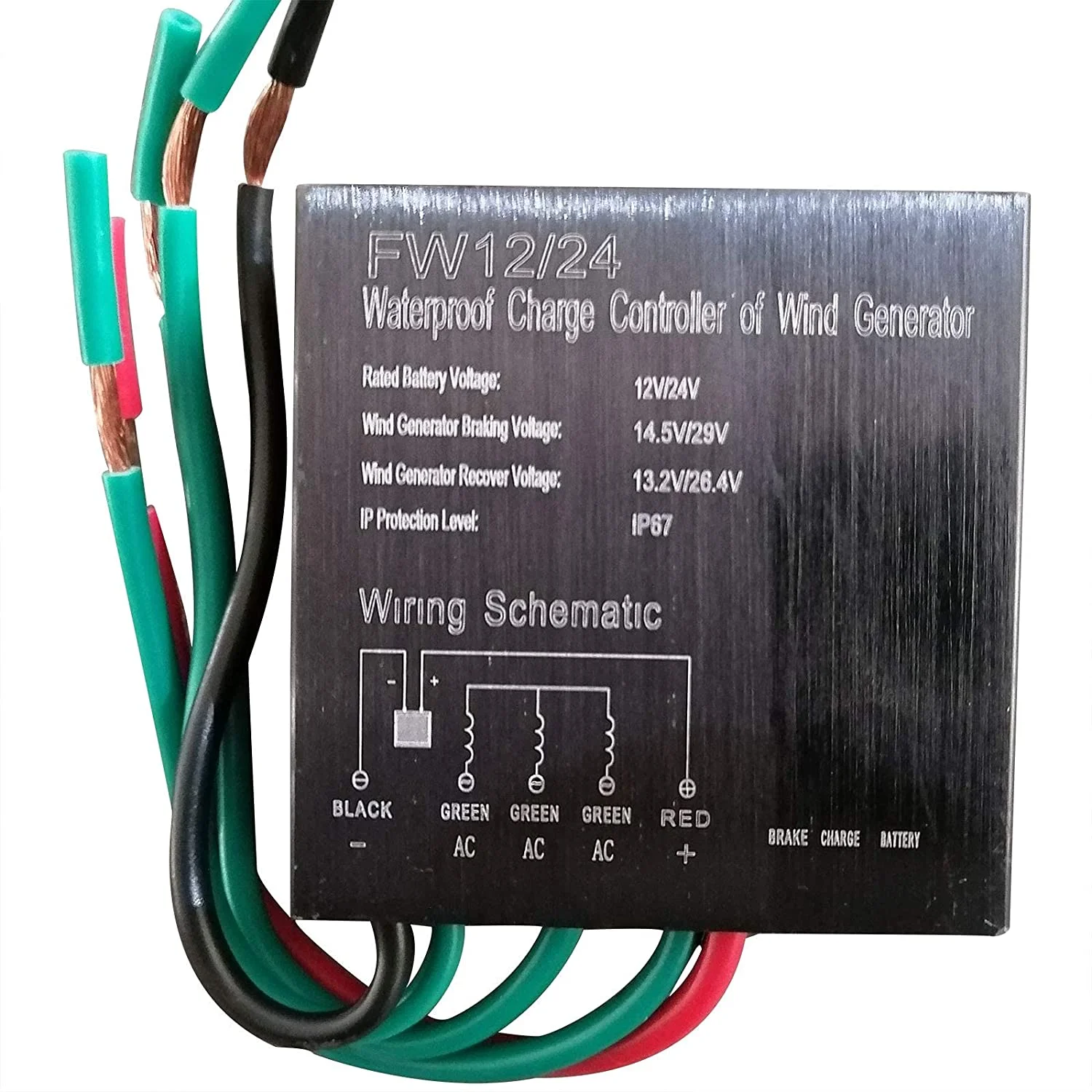

- (1) Charge Controller
Key Features
- Rated Output: 400 W at 25 mph wind speed (11 m/s)
- Startup Speed: 2.9 mph (1.3 m/s); Cut-in Speed: 5.6 mph (2.5 m/s)
- Max Wind Speed: 89.5 mph (≤40 m/s); Instantaneous Max: 100.7 mph (≤45 m/s)
- Blade Span: 23.6 in diameter (0.6 meters); Blade Height: 31.5 in (0.8 meters)
- Voltage Options: 12V or 24V system compatibility
- Generator Protection: IP67-rated with electromagnetic braking
- Low Noise & Vibration: Optimized fiberglass blade design
- Expected Lifespan: 10–15 years under standard operating conditions
- Operating Temp Range: -13°F to 113°F
