Efficient 3-Blade Wind Generator for Off-Grid Power Applications
This 500W wind turbine kit offers a dependable renewable energy solution for residential, marine, and mobile installations.
Built with a high-efficiency 3-blade design, the unit begins generating power at wind speeds as low as 2.5 m/s.
It includes an MPPT controller to optimize charging and ensure system stability.
Ideal for use in homes, RVs, boats, or remote outposts, this turbine combines quiet operation with long-term durability.

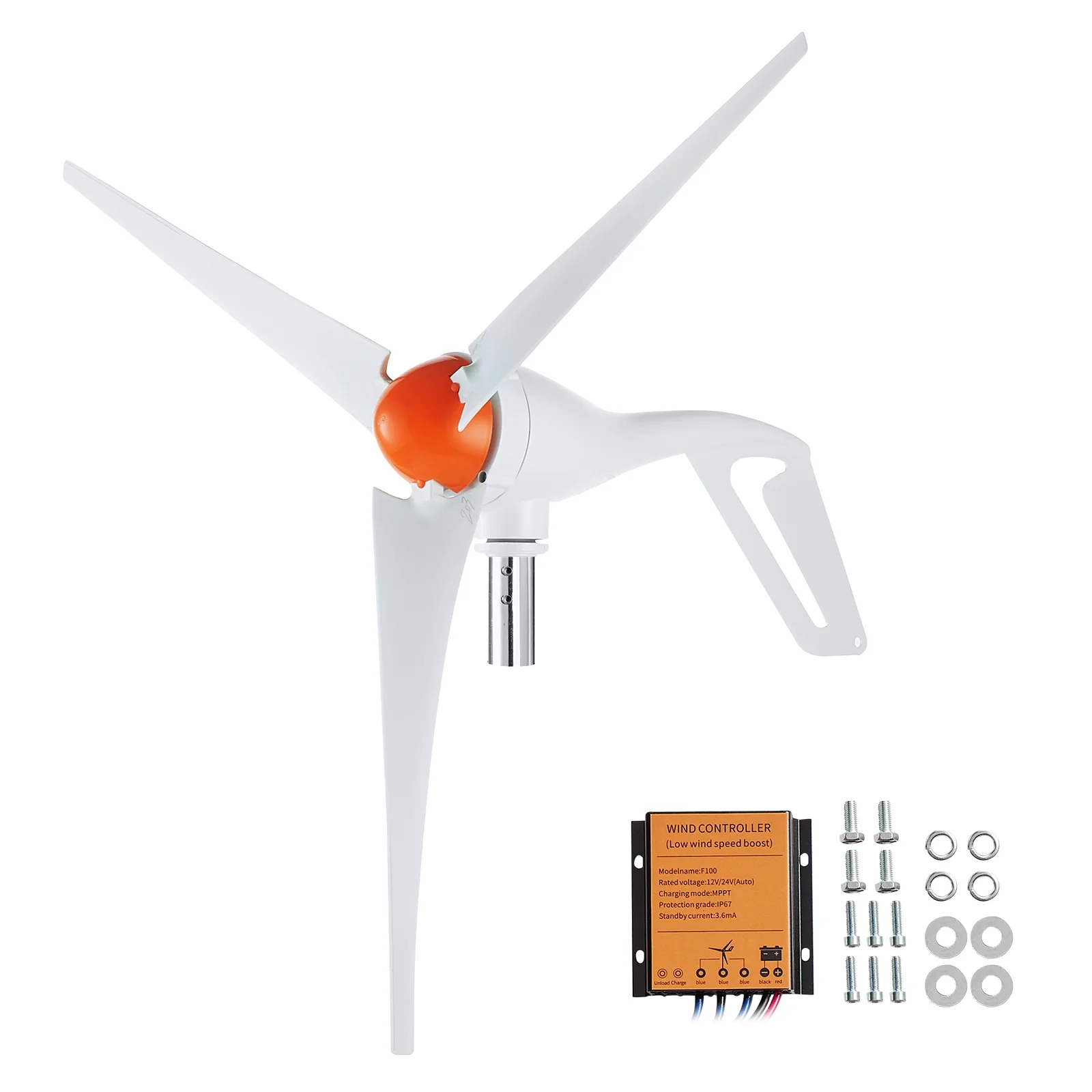

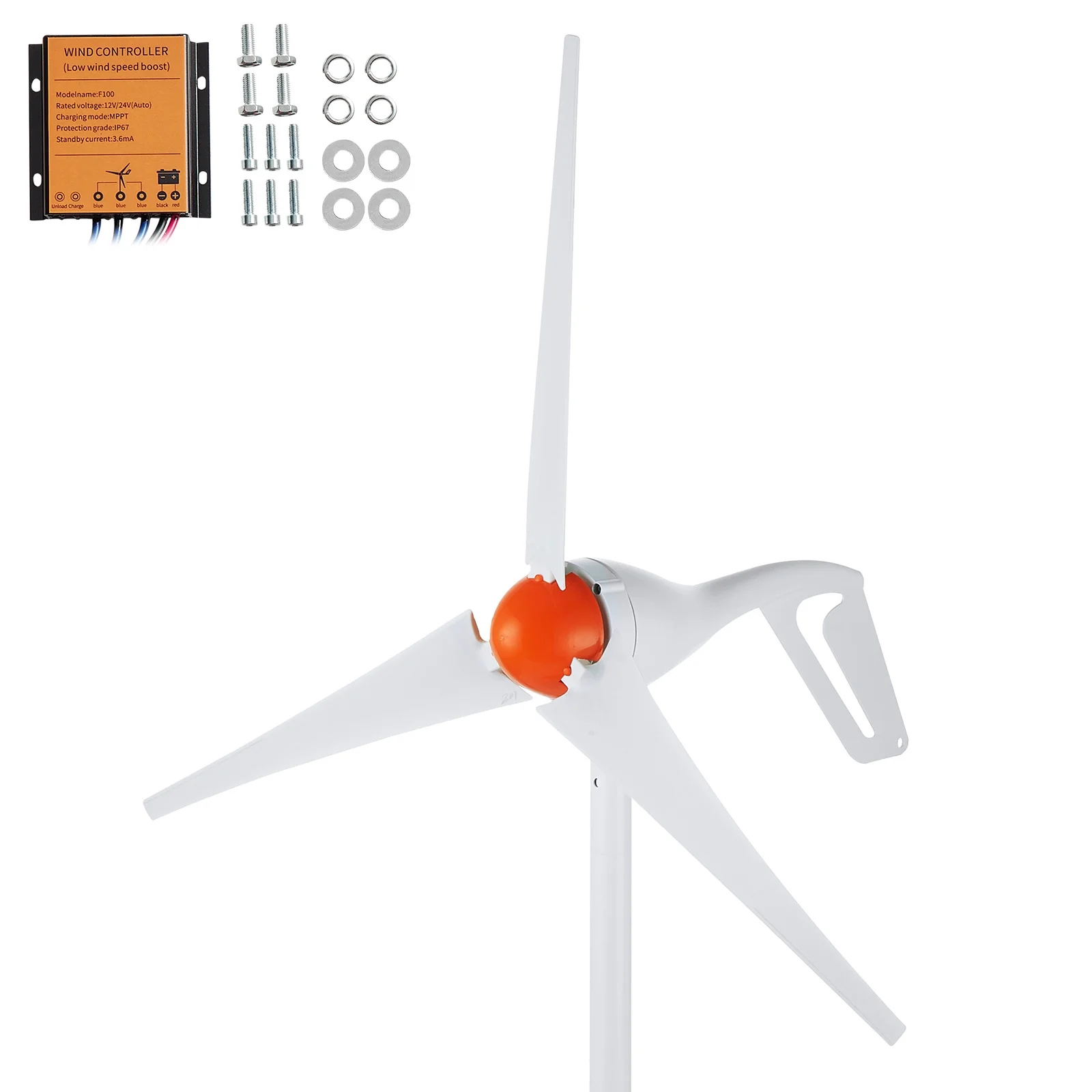

Kit Components
- (1) 500W wind turbine generator (3-blade)
- (1) MPPT charge controller (microprocessor controlled)
- (1) Wind cap, mounting sleeve, and hardware
- (3) Fiberglass nylon blades (pre-balanced)

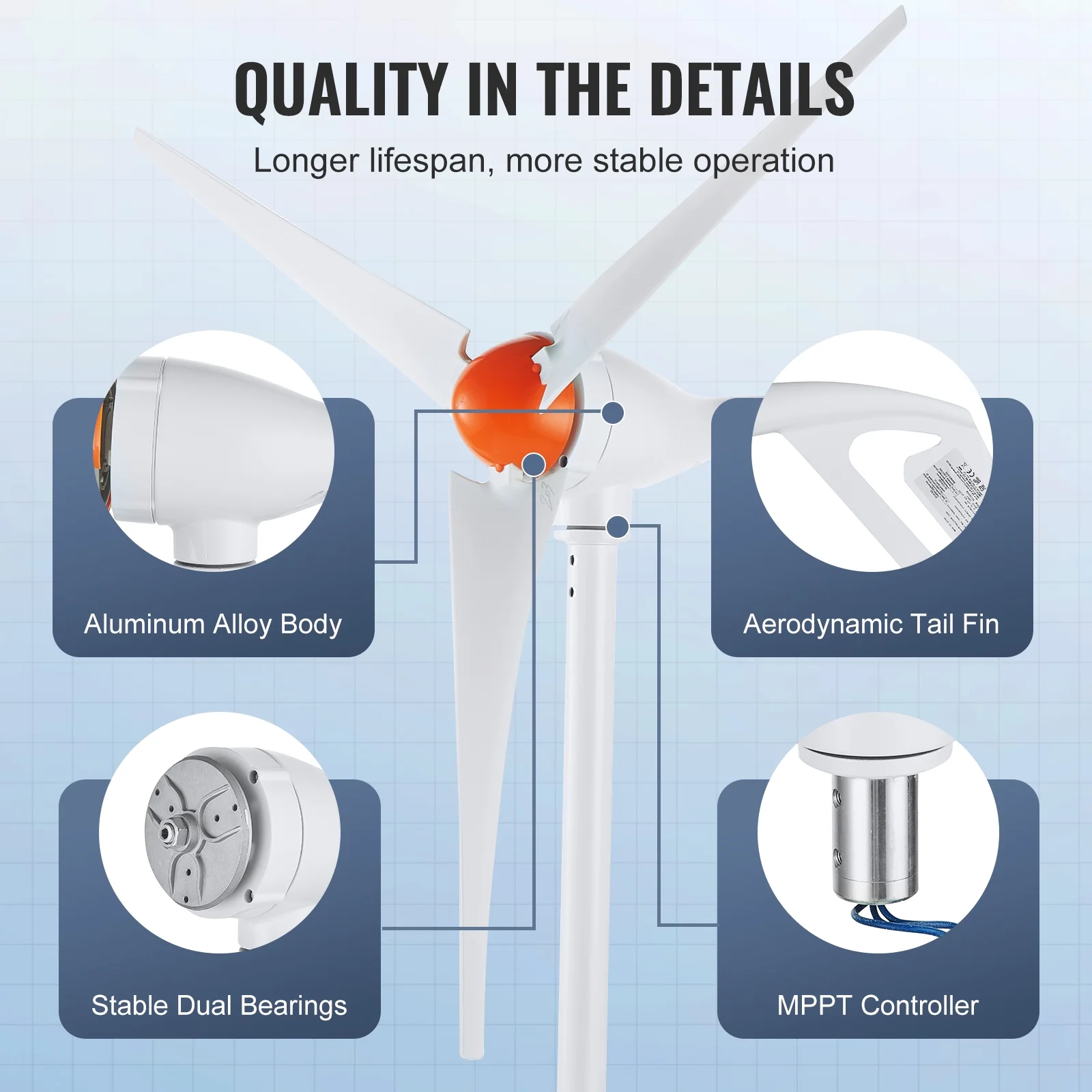

Key Features
- Quiet Operation: Runs at just 55dB with dual bearing stabilization
- Low Startup Wind Speed: Begins generating power at just 2.5 m/s (5.6 mph)
- Blade Construction: High-strength fiberglass-reinforced nylon, suitable for extreme temperatures
- Durability: Teflon-insulated windings, die-cast aluminum alloy body, corrosion- and weather-resistant
- Smart MPPT Control: Automatically regulates voltage and current for optimized battery charging
- Adjustable Wind Alignment: Tail fin aligns dynamically with wind direction for improved capture

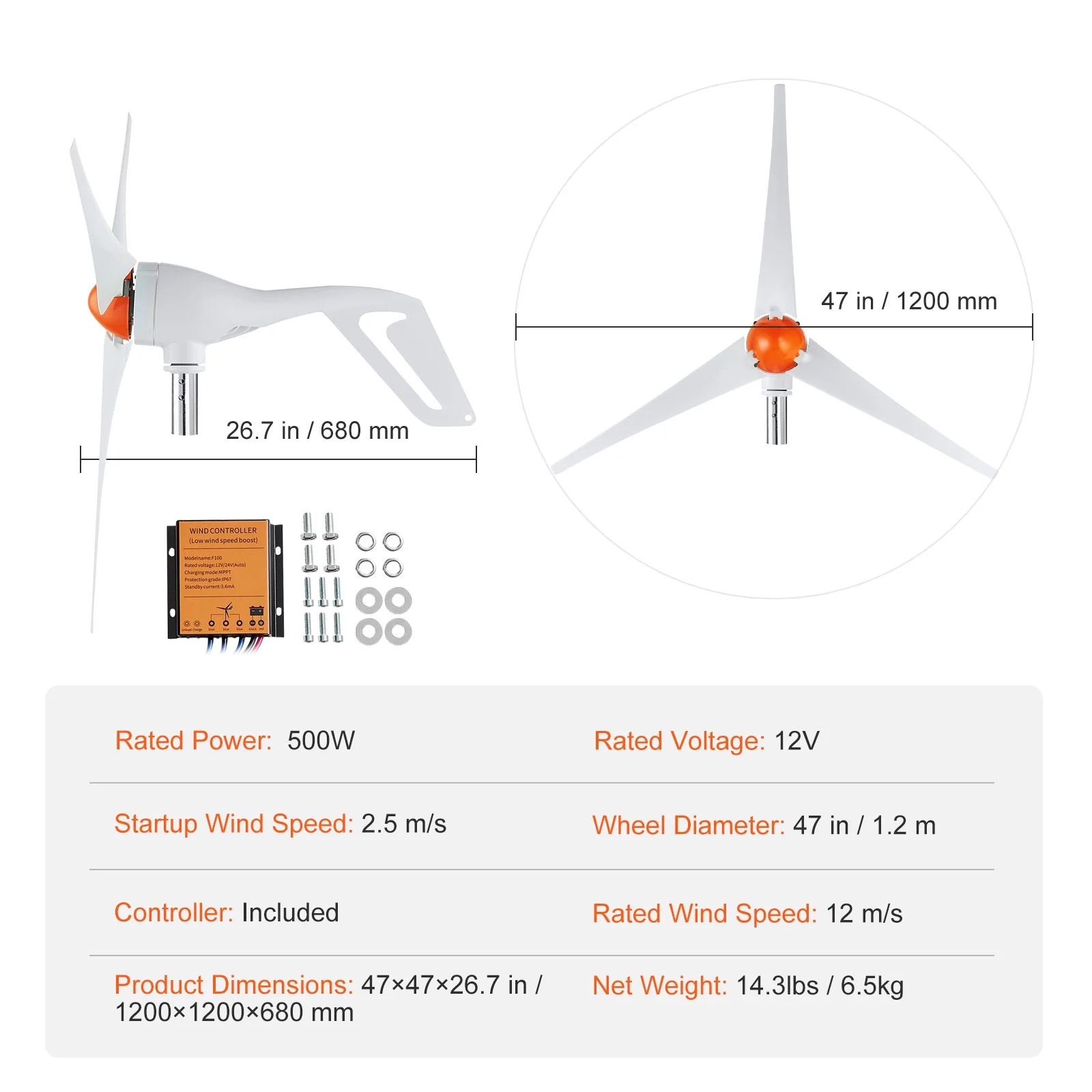

Specifications Table
| Rated Power | 500W |
| Voltage | 12V DC |
| Startup Wind Speed | 2.5 m/s (5.6 mph) |
| Rated Wind Speed | 12 m/s (26.8 mph) |
| Rotor Diameter | 47 in (1.2 m) |
| Noise Level | 55 dB |
| Blades | 3, fiberglass nylon |
| Dimensions | 47 × 47 × 26.7 in (1200 × 1200 × 680 mm) |
| Weight | 14.3 lbs (6.5 kg) |
| Controller | MPPT (included) |
