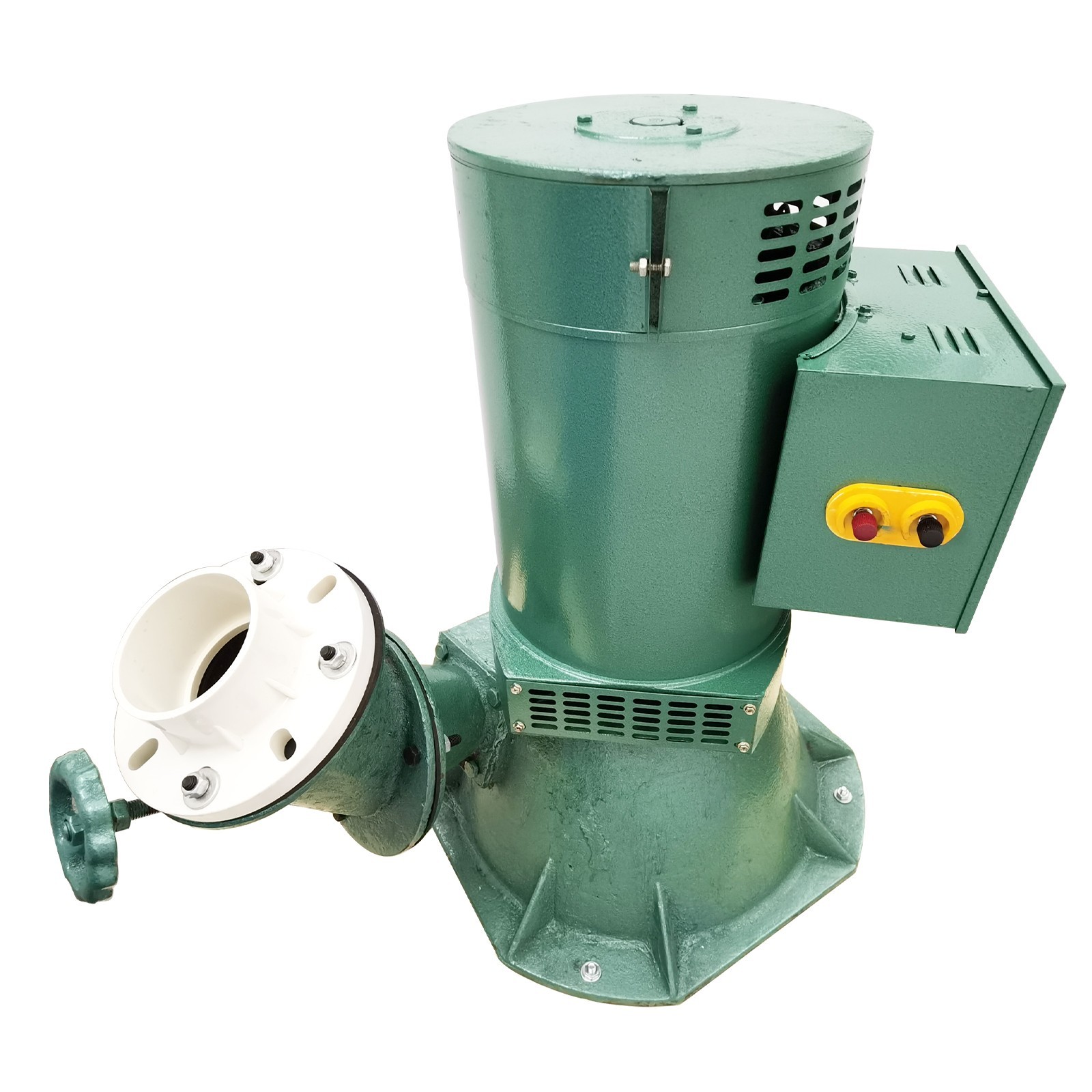

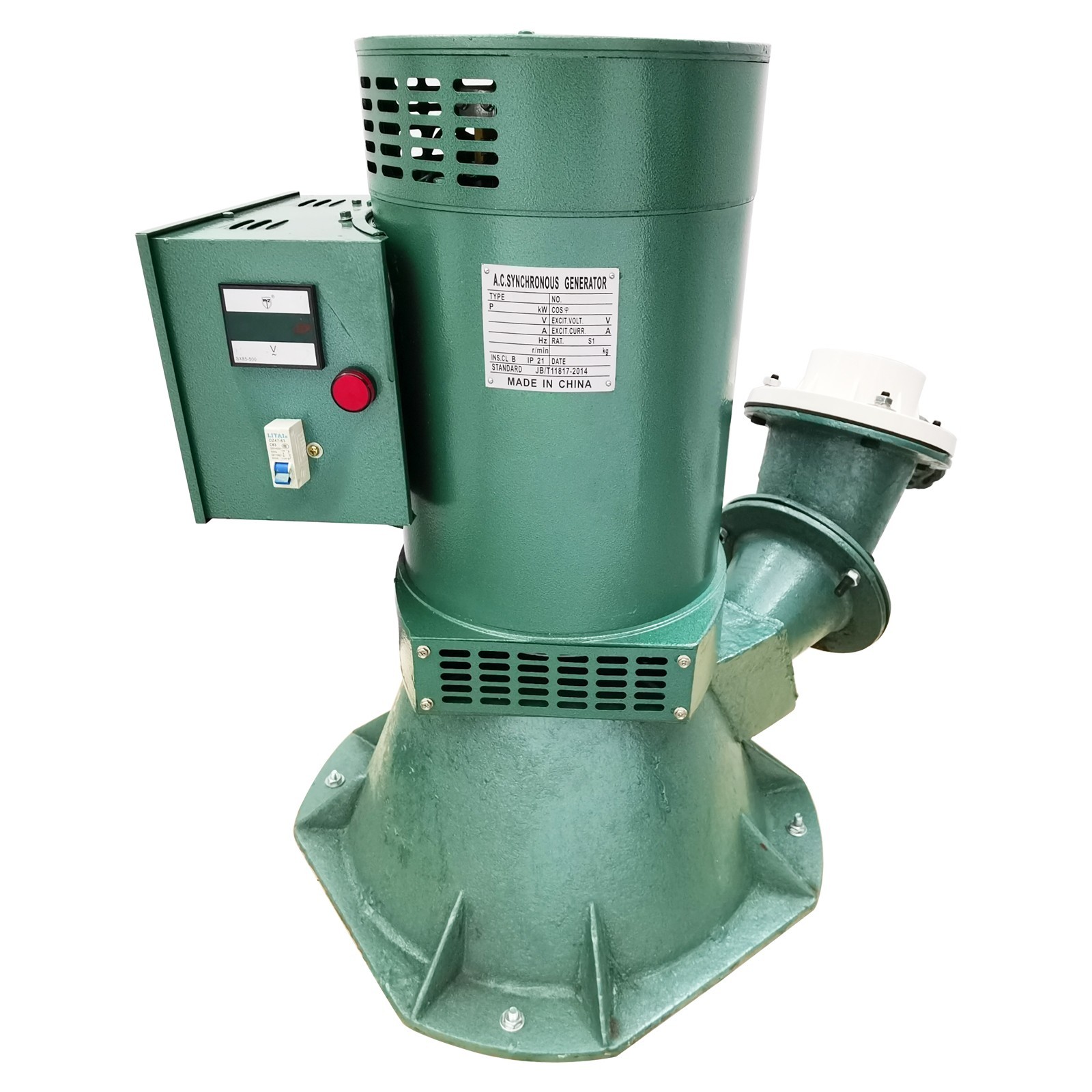

Portable Hydroelectric Generator 220V10kW Permanent Magnet Synchronous Generator

HayWHNKN®
Product Overview
The oblique impact hydroelectric generator uses a simple spoon shaped blade to form a hydraulic turbine, consisting of a casing, nozzle, impeller, and generator. Its design is extremely simple. When high-speed water flows from the nozzle to the blades, the blades rotate at high speed, thereby driving the generator to generate electricity. The oblique stroke water turbine generator set belongs to the high head and small flow generator set, and is generally applicable to a water head range of 30-60 meters. Due to its simple structure, small size, light weight, simple structure, automatic voltage regulation and protection, and convenient use, it can effectively solve power consumption problems.

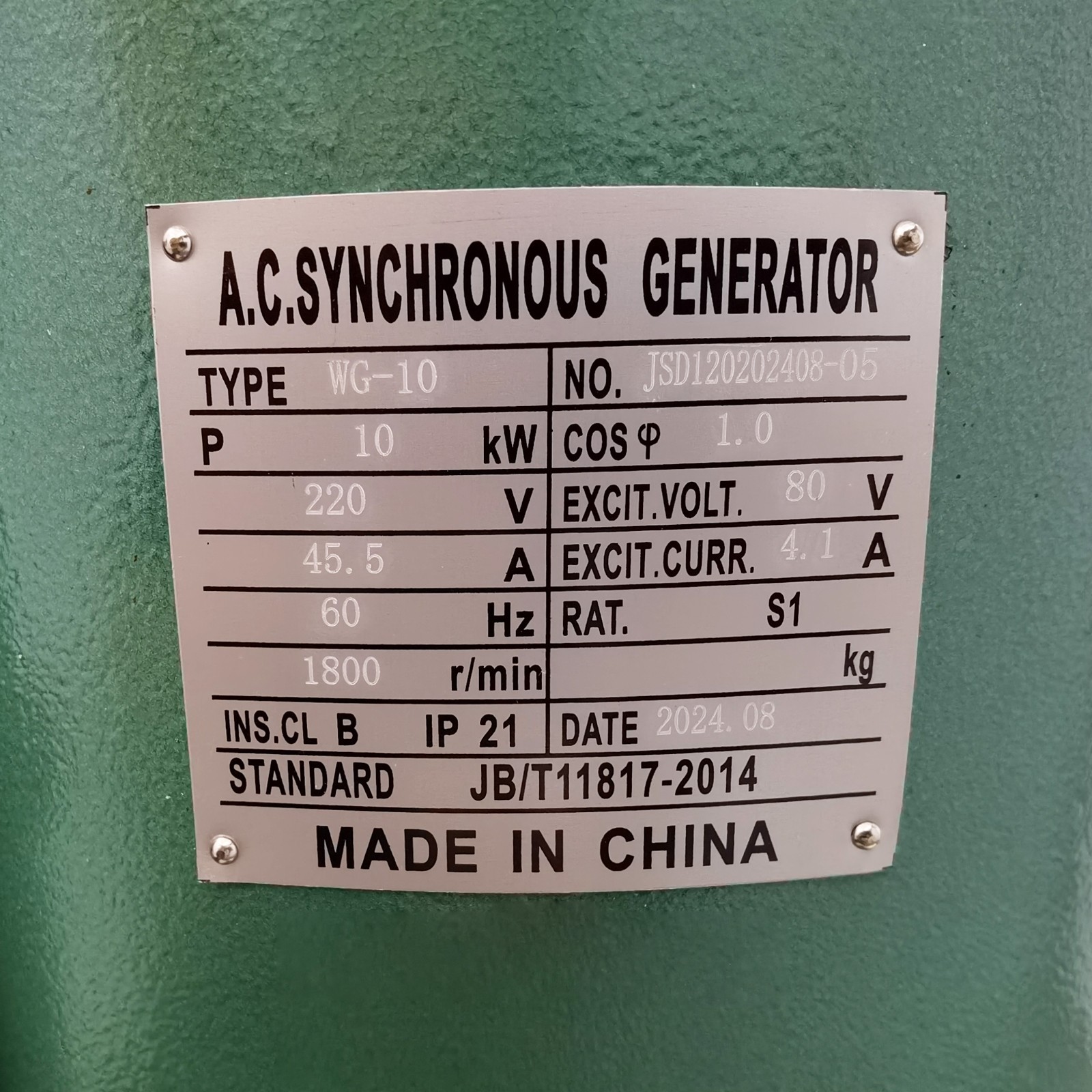

Product Parameters
Voltage: AC220V
Phase number: 1
Power: 10kW
Current: 45.5A
Water Head(drop height): (30-60m)
Flow rate: 0.06m³/s
Speed: 1800r/min
Excit.Volt: 80V
Excit.Curr: 4.1A
RAT: S1

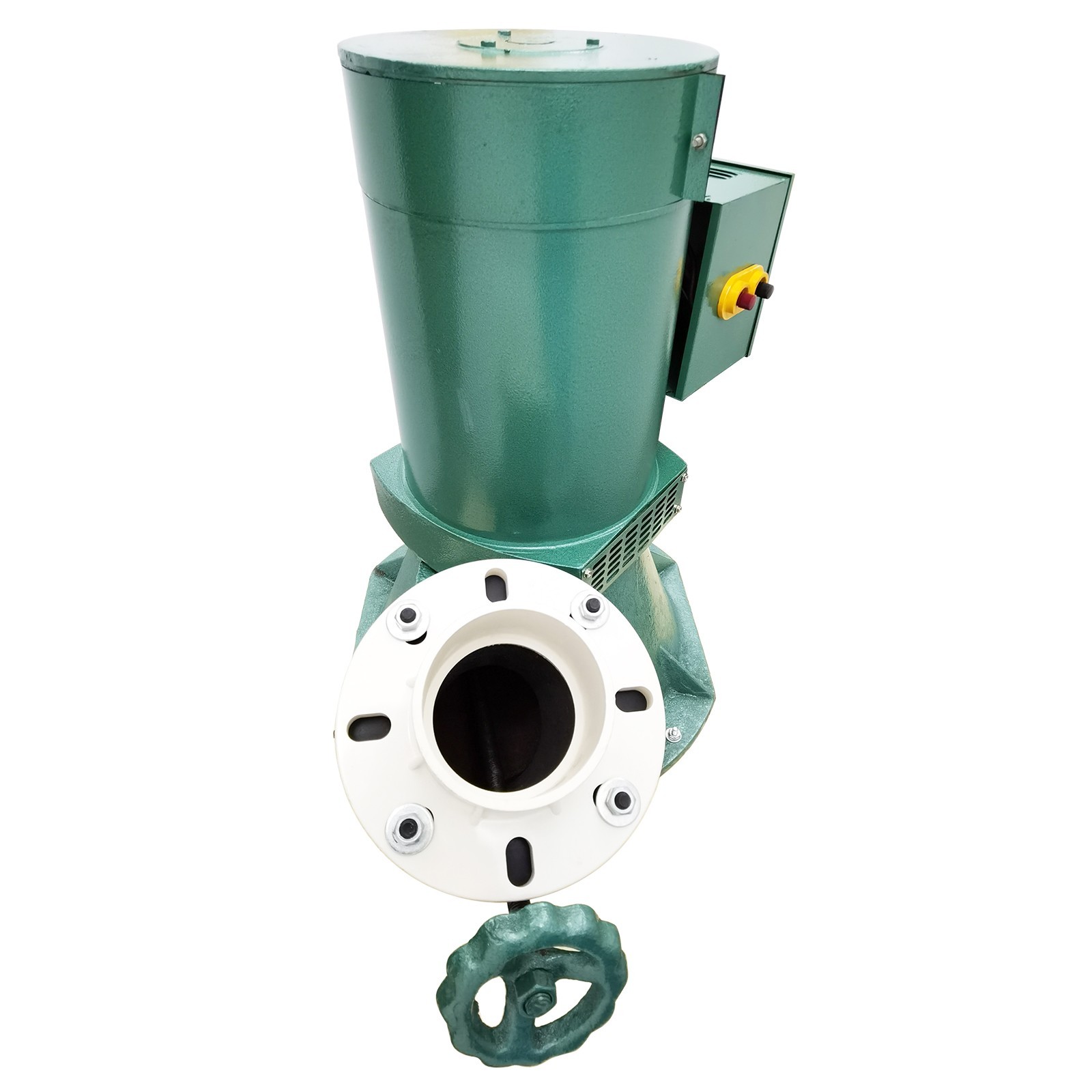

Valve inlet diameter: 4.3″(11cm)
Package size: 36.6″*24.8″*34.3″ (93cm*63cm*87cm)
Net weight/Gross weight: 269lbs(122kg)/341.7lbs(155kg)
Product Features & Advantages

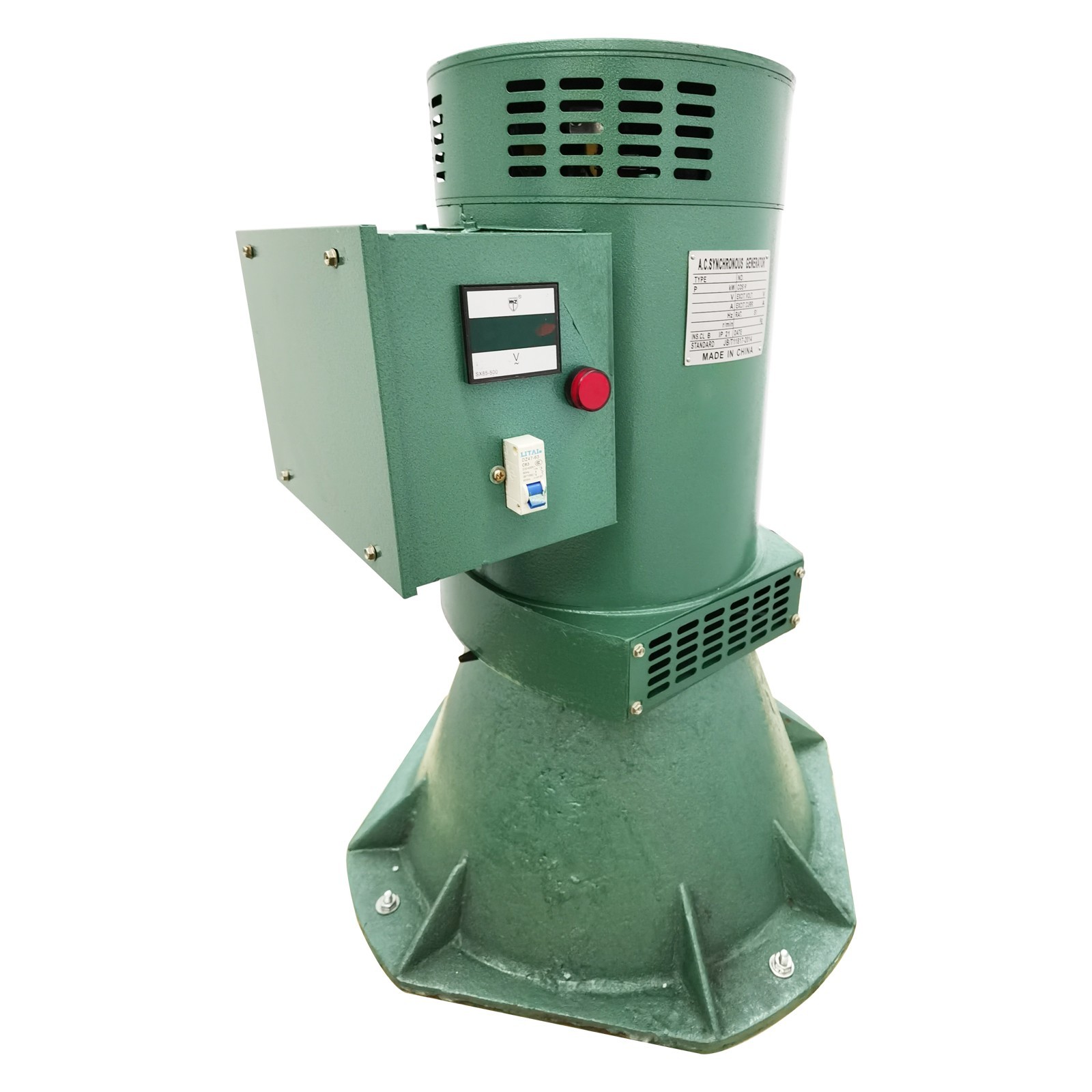

a. Automatic Voltage Regulation

Automatic voltage regulation and leakage protection. It emits 220V electricity without the need for batteries and inverters, with low cost and stable voltage.

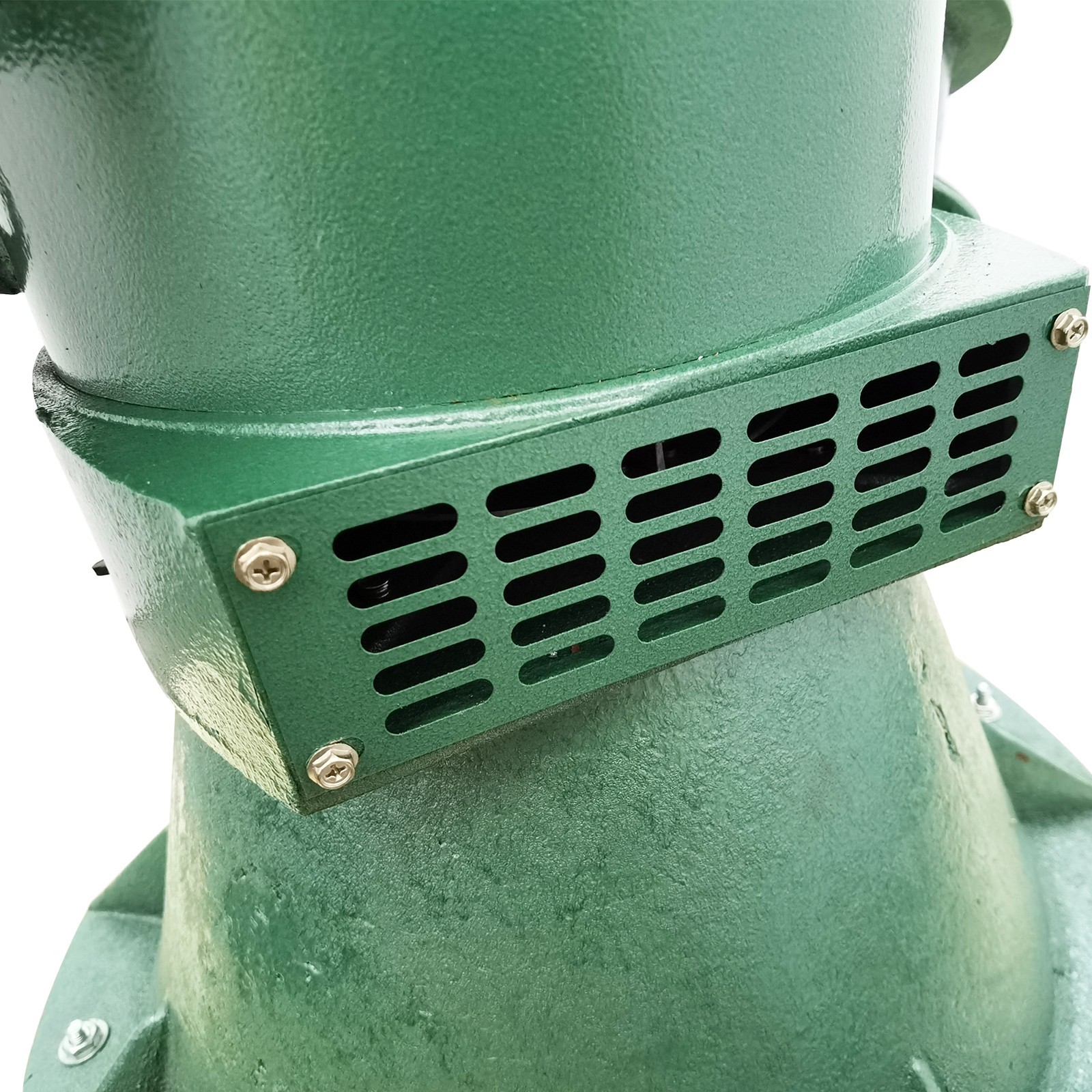

b. Heat Dissipation Design

The body has a heat dissipation window, which allows for timely heat dissipation during motor operation, reduces motor temperature, prolongs working time, and ensures the normal operation of the machine.

c. Convenient to Use

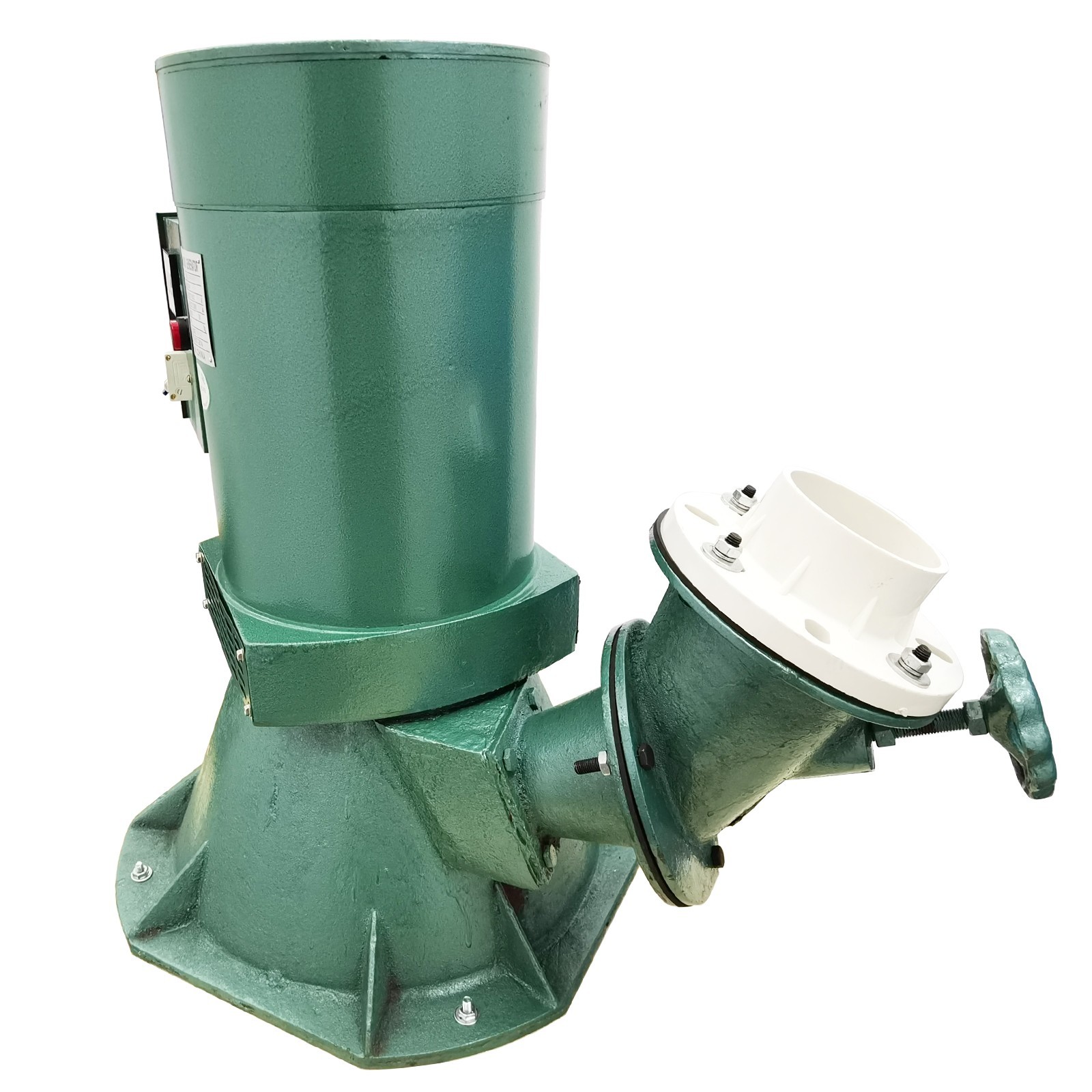

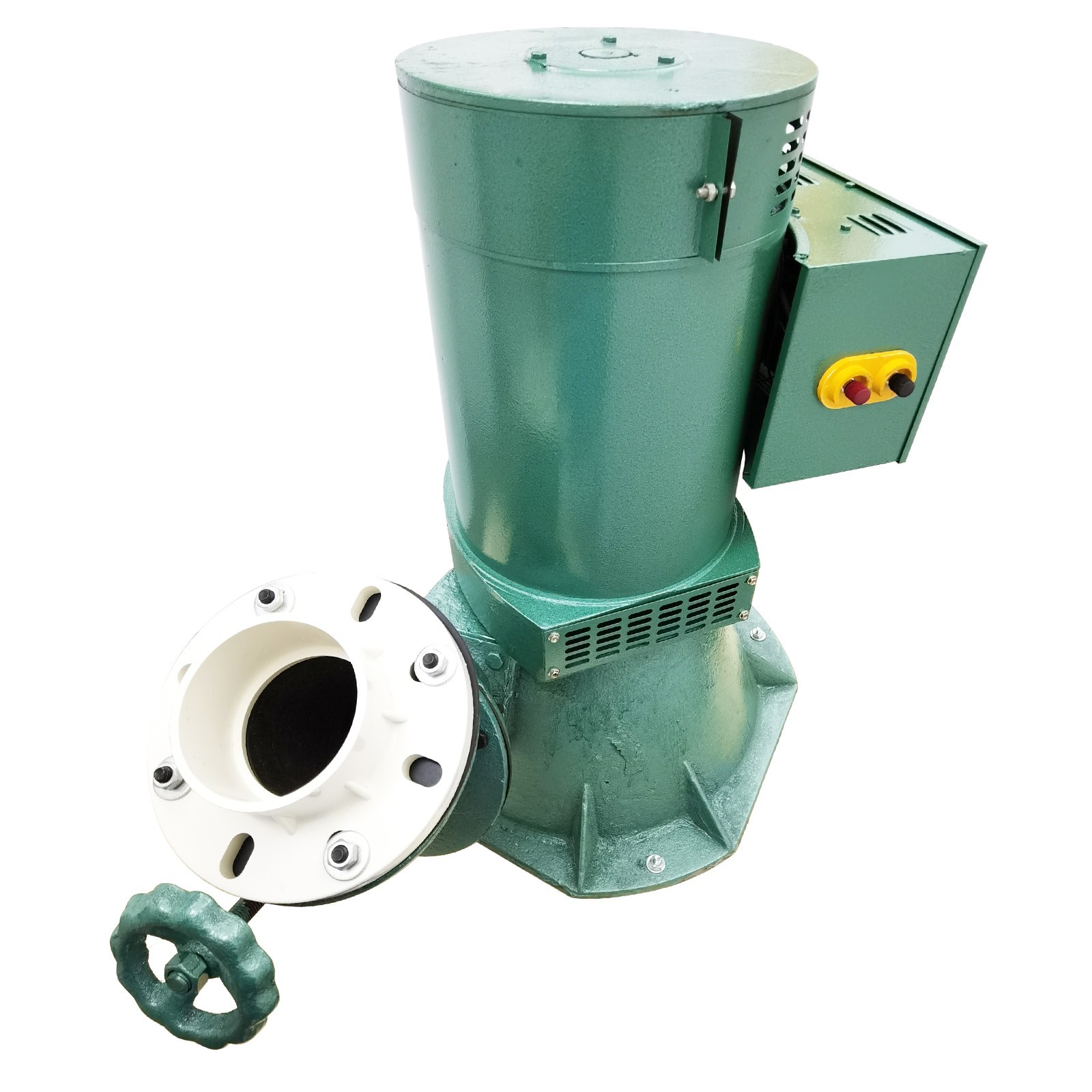

The packaged unit composed of a direct connected permanent magnet synchronous single-phase AC generator with a diagonal turbine has the characteristics of small volume, light weight, simple structure, reliable operation, and convenient installation and use, which can effectively solve power consumption problems.

d. Simple Design

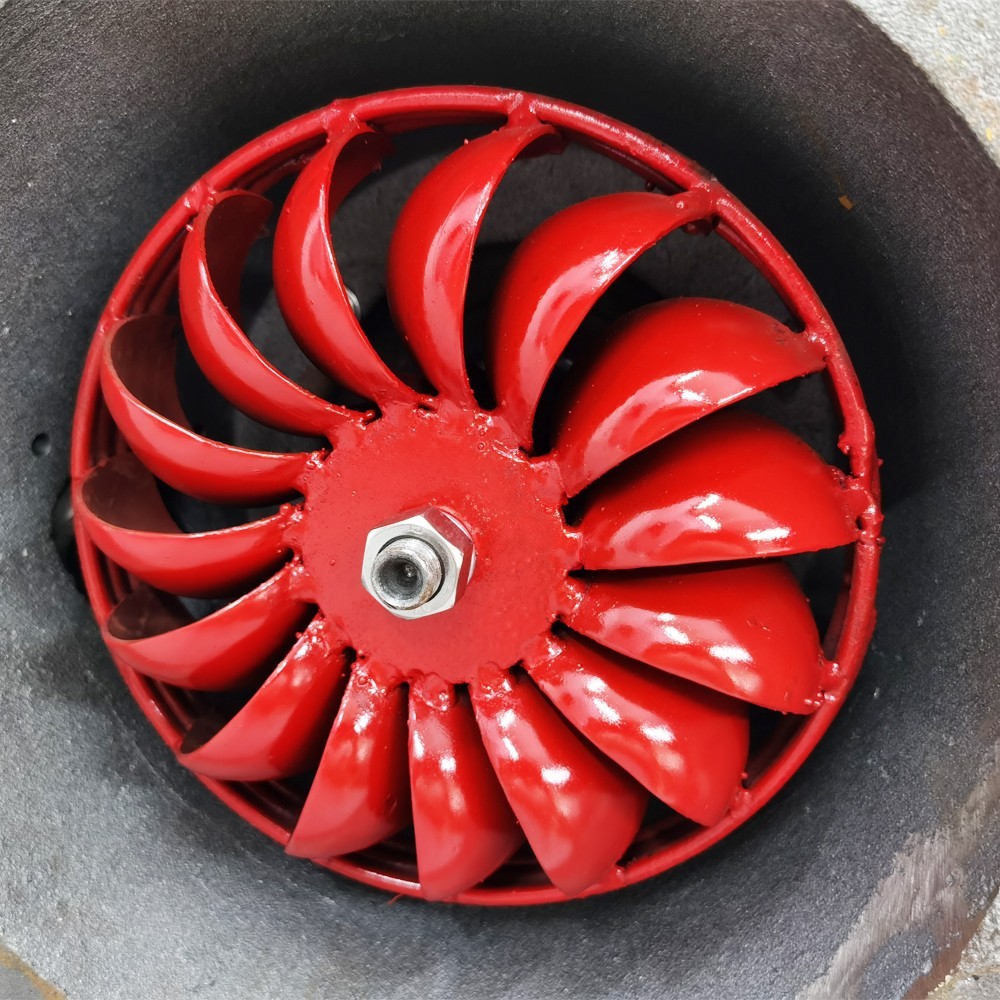

The water turbine is composed of a simple spoon shaped blade, consisting of a casing, nozzle, impeller, and generator. Its design is extremely simple. When high-speed water flows from the nozzle to the blades, the blades rotate at high speed, driving the generator to generate electricity.

e. Stable Performance

Both the water turbine and generator have undergone enhanced technical treatment, with reliable quality and stable performance, which can be operated by anyone. They are suitable for users to purchase, build, manage, and use themselves.

f. Durable and Sturdy

The machine is made of 100% copper wire, with a sturdy turbine, generator casing, and turbine casing. It can also withstand impact and deformation under harsh conditions, and has a long service life.

– Portable hydroelectric generator, electricity can be generated directly from naturally flowing river water.
– Ideal for a conservative home, wilderness cabins, outdoor camping and more.
– Excitation magnet electric motor, lower losses, lower costs and improve energy efficiency.
– Automatic voltage regulation and leakage protection, safe to use.
– Rugged turbine, generator casing and turbine housing (reliable in harsh conditions).

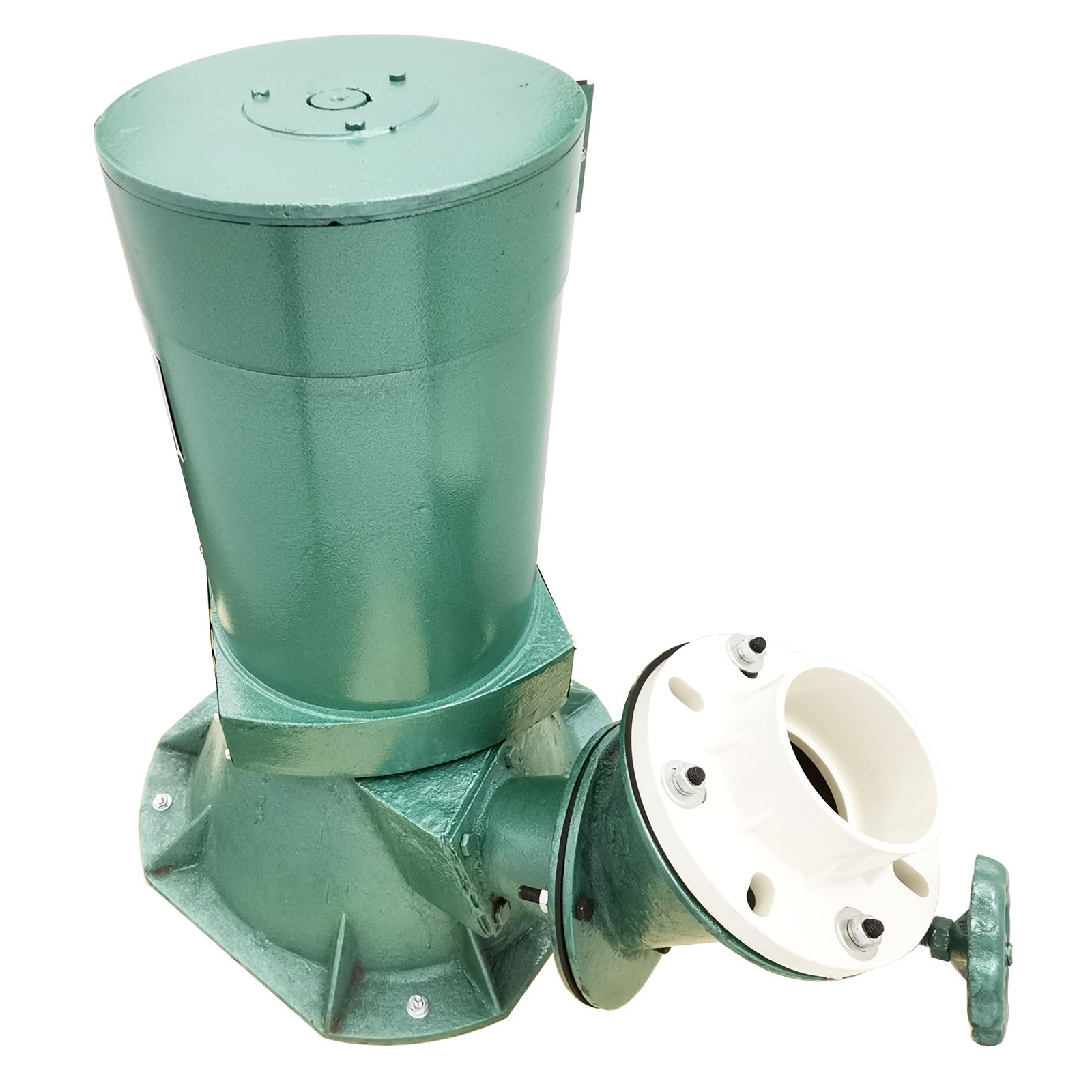

– Water-flow control valve pre-installed.

Product Presentation & Details
Item Included(056557)

Hydroelectric Generator *1

Carbon Brush *4
