Description

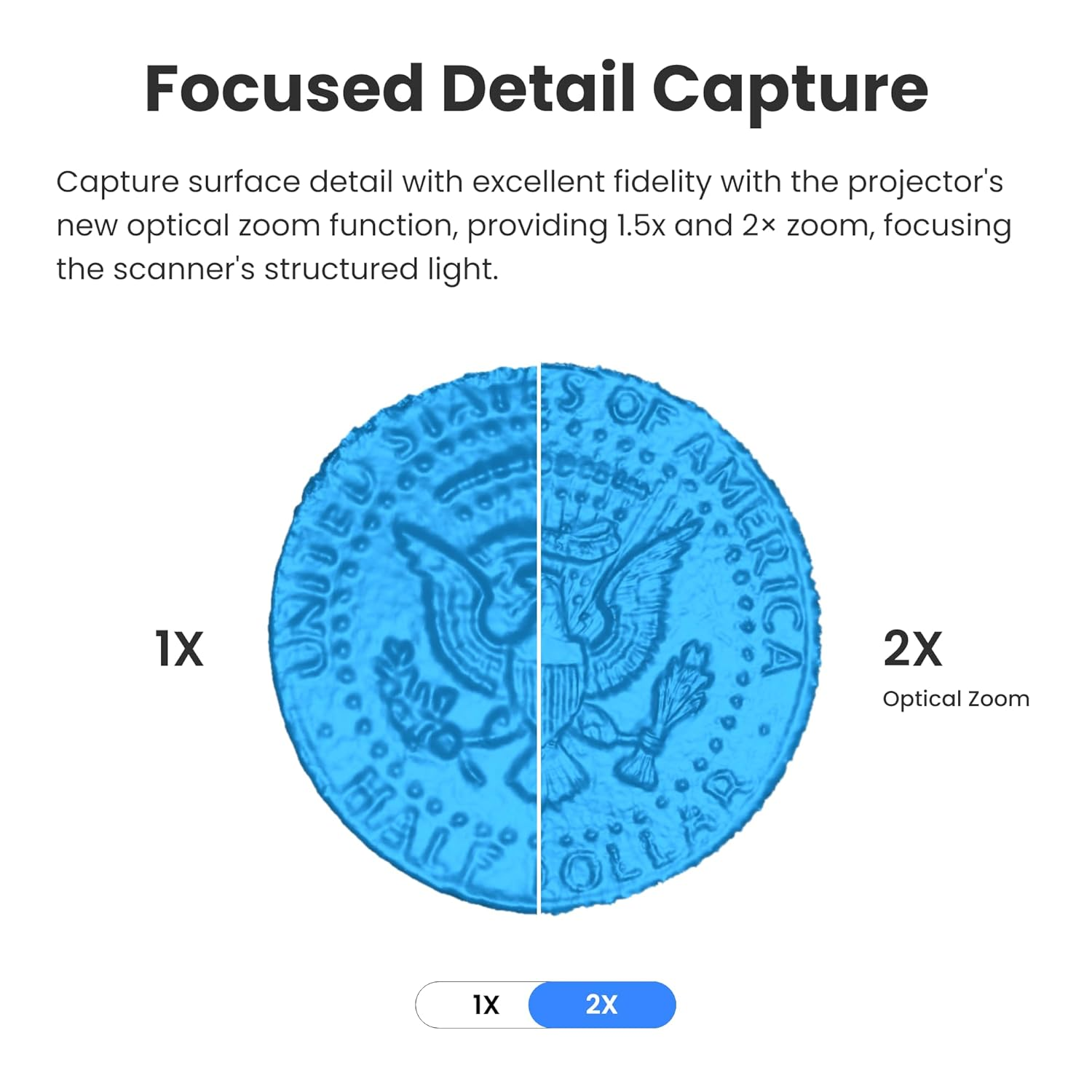

- Refined Precision: Create detailed 3D models with 20% more accuracy and precision. The new calibration board, made using advanced photolithographic processes, ensures your POP 3 Plus stays within 20 microns of accuracy. Capture details with even more fidelity using the POP 3 Plus projector’s new optical zoom function (1.5x and 2x magnification) for 30% more point cloud detail

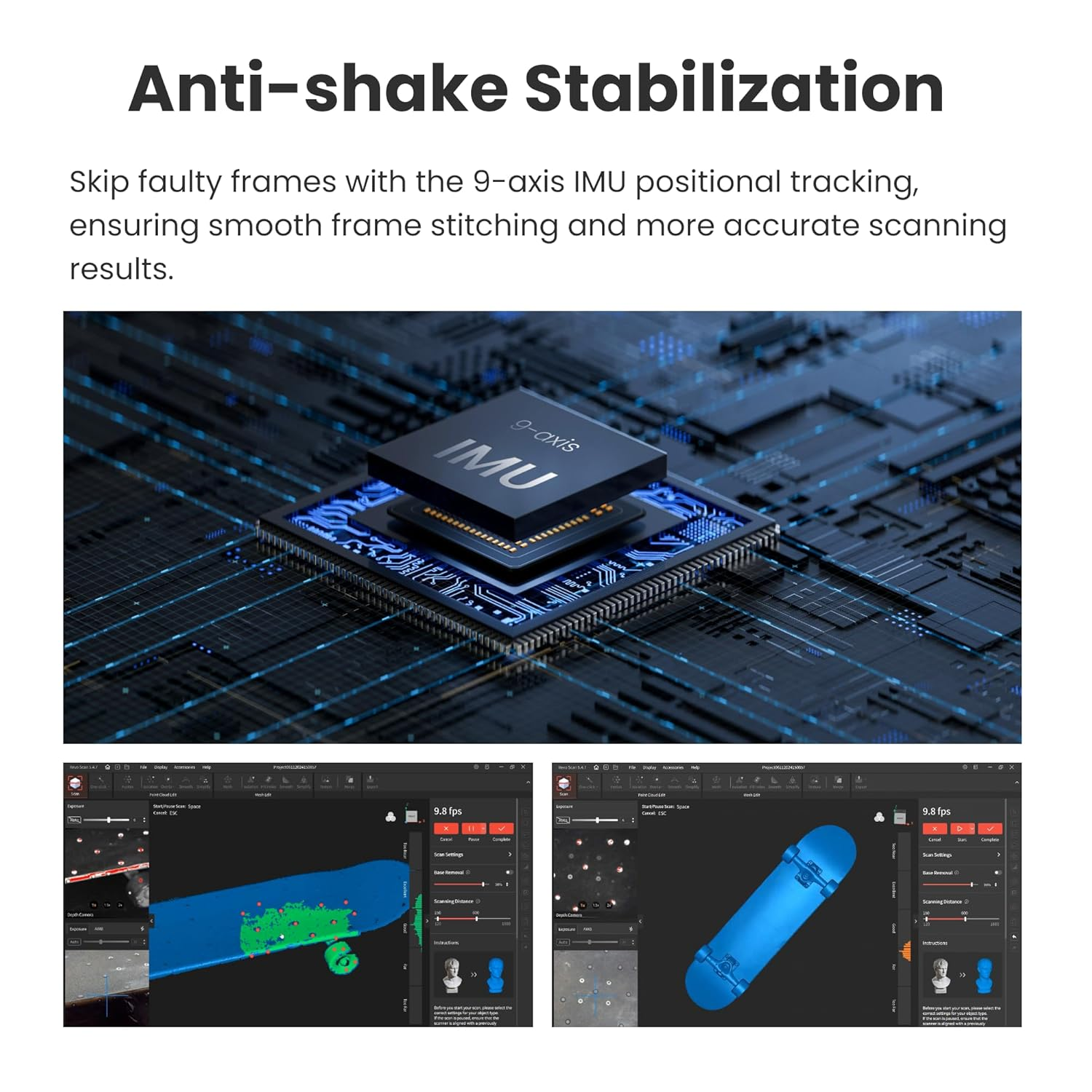

- High-Speed Stable Scanning: Improve work efficiency with scanning speeds of up to 18 fps and a 9-axis IMU that stabilizes the scan to prevent faulty frames caused by shaking
- Full-Color Scans: Create lifelike 3D models of objects and body parts (POP 3 Plus uses class 1 infrared light for eye and skin-safe scanning) using POP 3 Plus’s HD RGB camera, advanced pixel mapping, and Flash LED lighting system
- Applications: Whether you’re 3D printing, animating, designing products, creating video games, or preserving history, POP 3 Plus is ready to help you capture medium-sized objects (20 x 20 x 20 mm to 2 x 2 x 2 m)
- Convenient to Use: Easily connect to iOS, Android, Windows, or macOS devices over Wi-Fi 6 or USB Type-C for seamless integration into your workflows. Weighing only 190g, POP 3 Plus is lightweight and portable, and its three touch-sensitive buttons offer easy access to starting/pausing scans and adjusting the depth cameras’ exposure
- Wide File Compatibility: Export scans in PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX file formats for compatibility with most CAD, 3D modeling, and slicer software

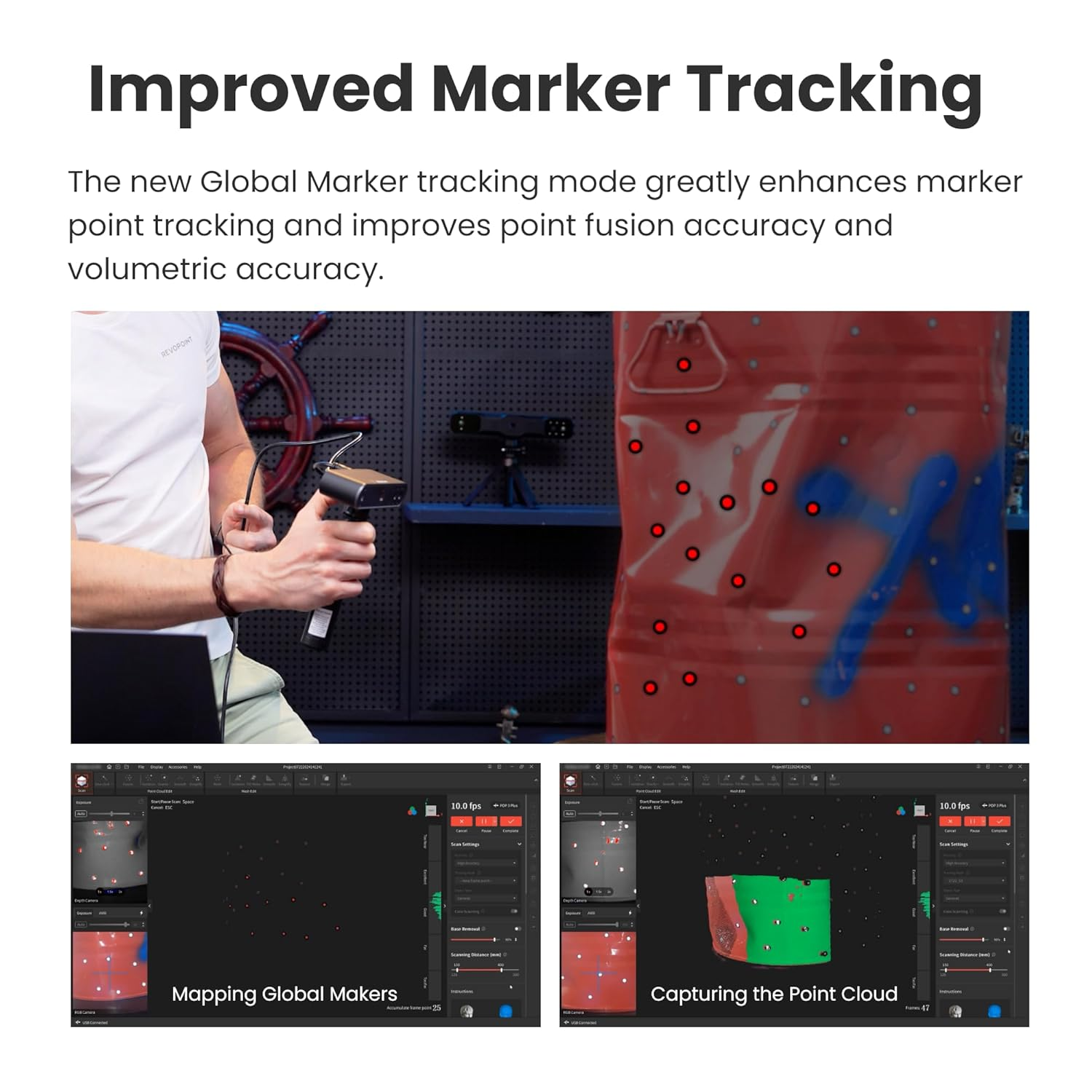

- User-Friendly Software: Do everything from scanning to editing using the powerful and free Revo Scan software. Its intuitive user interface and in-depth tutorials make it easy to master. The newly added Global marker tracking mode dramatically enhances marker tracking scans. It’s constantly updated with new tools and features to improve your scanning experience. Note: The software is only compatible with x86_64 architecture.
- Professional & Efficient Revo Design:Revo Design, powered by Quicksurface software, streamlines the scan-to-CAD process. Its efficient and powerful features allow you to quickly convert scanned data in STL, OBJ, PLY, and other formats into ready-to-use CAD models. Effortlessly manage 3D data conversion for product design, reverse engineering, and more, enhancing overall work efficiency
- Peace of Mind After-sales Service: We offer 24/7 customer support and a two-year warranty, ensuring a worry-free purchase. You can reach out to our customer service team anytime for assistance
Product description
The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
pop3 plus 3d scanner medium object
Merchant Video
Specifications
| Fuesed Point Distance, up to | 0.05 mm |
| Single-frame Precision, up to | 0.04 mm |
| Single Capture Area(Max) | 244 x 180mm at 400 mm |
| Single Capture Area(Min) | 61 x 68 mm at 150 mm |
| Scan Volume | 20 x 20 x 20 mm- 2 x 2 x 2 m |
| Scan Speed | up to 18 fps |
| Working Distance | 150 ~400 mm |
| Outdoor Scanning | Yes |
| Full Color Scanning | Yes |
| Scanner Weight | 190 g |
| Dimensions | 153 x 45 x 29 mm |
| Output Formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| Compatible Operating Systems | Windows 1011 (64-bit), Android, iOS, macOS |
| Alignment | Feature, Marker, Global Marker |
Choose your 3D Scanners
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
Add to Cart
|
|||
|---|---|---|---|---|---|---|---|
|
Customer Reviews
|
4.2 out of 5 stars 57
|
4.3 out of 5 stars 86
|
4.5 out of 5 stars 5
|
4.1 out of 5 stars 54
|
4.0 out of 5 stars 165
|
3.7 out of 5 stars 70
|
4.2 out of 5 stars 9
|
|
Price
|
— | $1,019.15$1,019.15 | $1,399.00$1,399.00 | $1,529.15$1,529.15 | $339.15$339.15 | — | $430.00$430.00 |
|
Application
|
Medium-sized objects | Small to Medium | Small to large sized objects | Large-size with Photogrammetry | Medium-sized objects | Large sized objects | For Human Body and Big Objects |
|
Scanning Type
|
Handheld and desktop | Handheld and desktop | Standalone handheld & desktop | Standalone handheld & desktop | Handheld and desktop | Handheld and desktop | — |
|
Single-frame Precision
|
0.04 mm | 0.01 mm | 0.02 mm | 0.02 mm | 0.1 mm | 0.1 mm | — |
|
Fused Point Distance
|
0.05 mm | 0.05 mm | 0.05 mm | 0.05 mm | 0.1 mm | 0.1 mm | — |
|
Working Distance
|
150 ~ 400 mm | 200 ~ 400 mm | 100 ~ 1000 mm | 100 ~ 1000 mm | 250 ~ 500 mm | 400 ~ 1300 mm | — |
|
Minimum Scan Volume
|
20 x 20 x 20 mm | 10 x 10 x 10 mm | 10 x 10 x 10 mm | 10 x 10 x 10 mm | 50 x 50 x 50 mm | 50 x 50 x 50 mm | — |
|
Scanning Speed, up to
|
18 fps | Laser: 800,000 Points/s | 15 fps | 20 fps | 18 fps | 16 fps | — |
|
Outdoor Scanning
|
✔ | ✘ | ✔ | ✔ | ✔ | ✔ | ✔ |
|
Compatible Operating Systems
|
Win10/11/Android/iOS/macOS | Win10/11 (64-bit), macOS 11.0 | Win10/11, macOS | Win10/11, macOS | Win10/11/Android/iOS/macOS | Win10/11/Android/iOS/macOS | — |
|
Wi-Fi
|
6 | / | 6 | 6 | 6 | 6 | — |
|
Power Source
|
DC 5V, 1A | DC 12V, 3A | DC 7-11V,5A, 65w Fast Charging | DC 7-11V,5A, 65w Fast Charging | DC 5V, 1A | DC 5V, 1A | — |
|
Scanner Weight
|
190 g | 508 g | 750 g | 750 g | 140 g | 253 g | — |
