Portable Spectral Analyzer for Grow Lights and Full Spectrum Lighting
The OHSP350S is a high-resolution handheld spectrometer engineered for rapid spectral diagnostics, CRI evaluation,

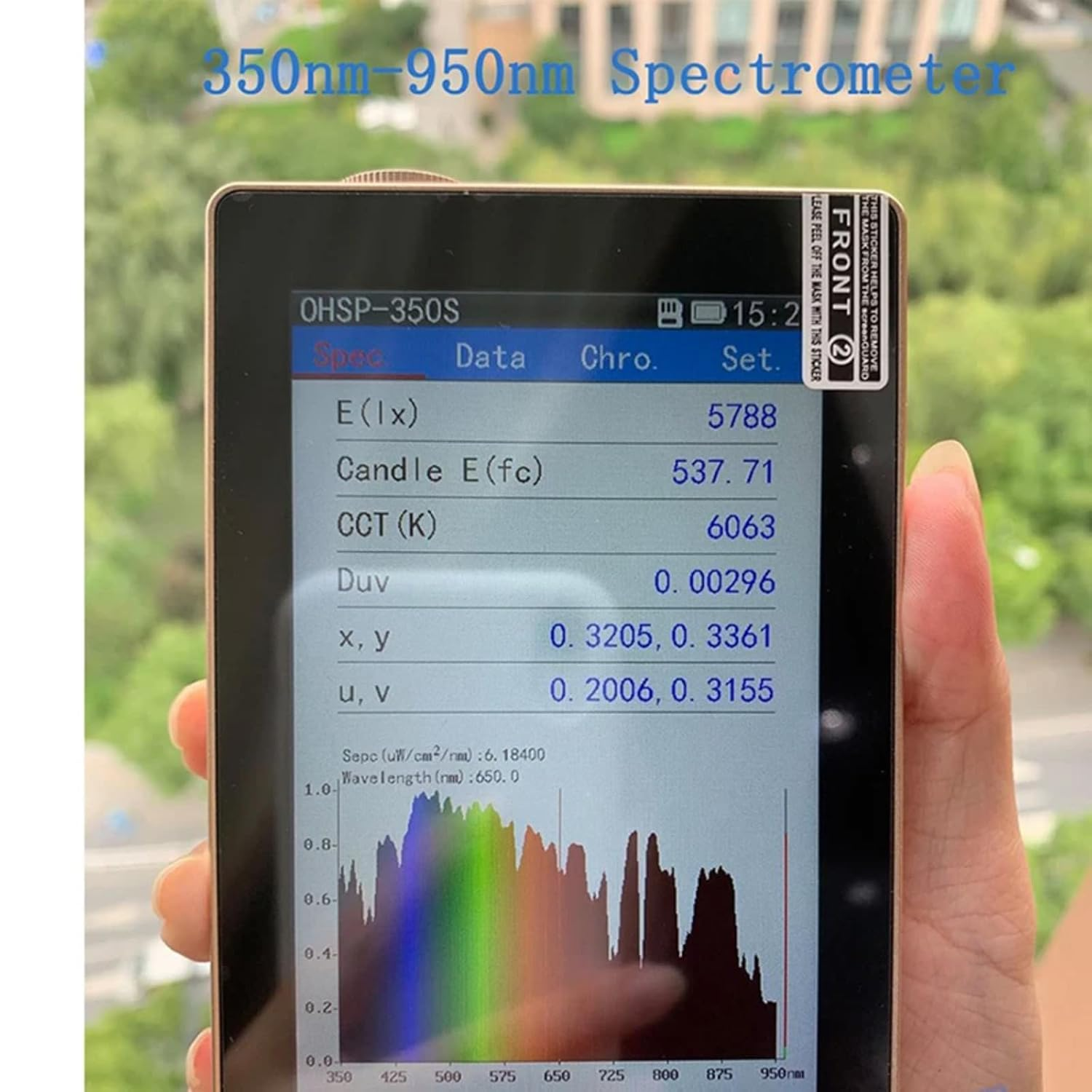

PPFD analysis, and Lux/CCT measurement. With a wide 350–950 nm wavelength range, this tool is essential for
horticultural professionals, lighting engineers, and R&D technicians requiring fast and accurate illumination profiling.

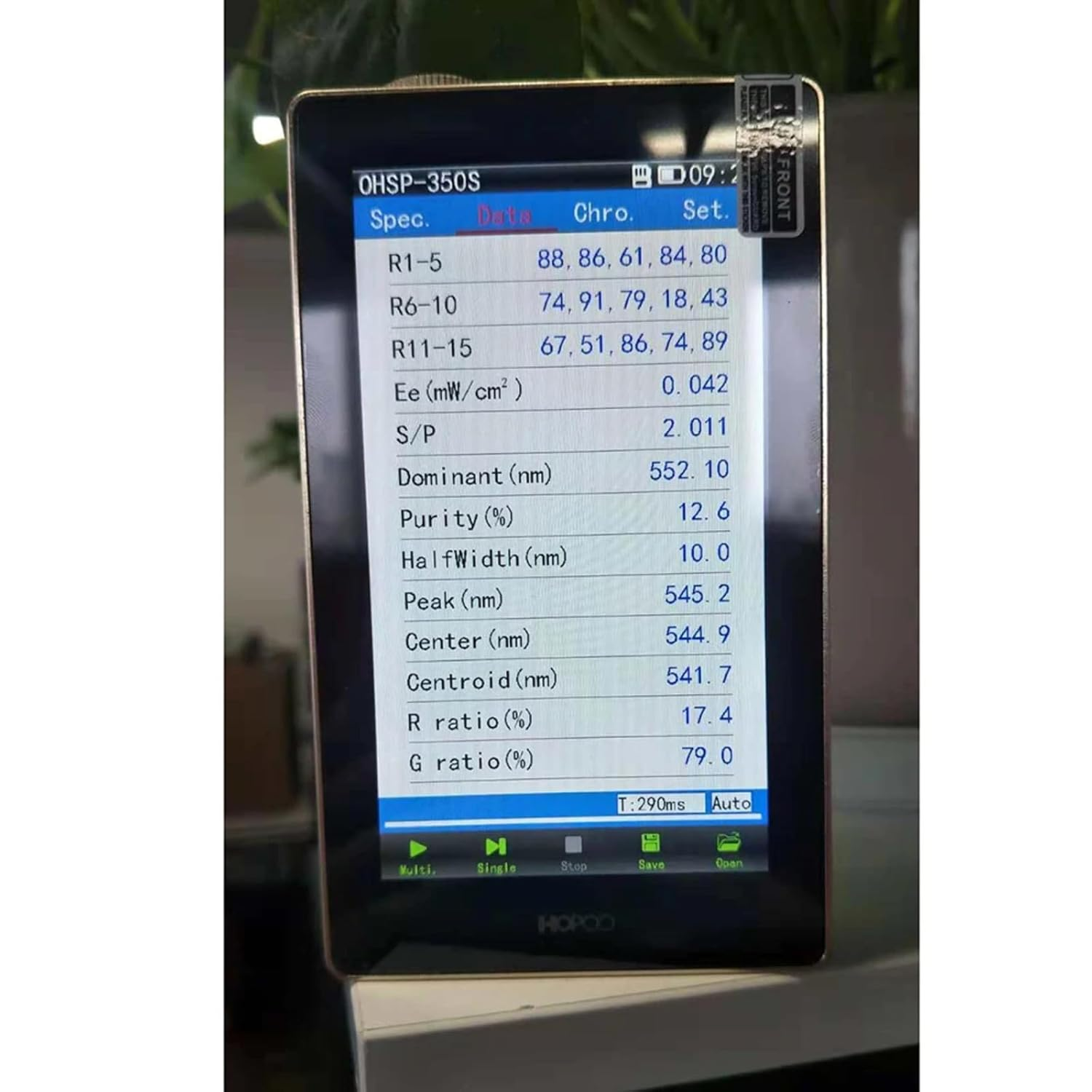

Designed for ease of use, it features a 5-inch LCD screen, intuitive onboard software, auto-zeroing, and

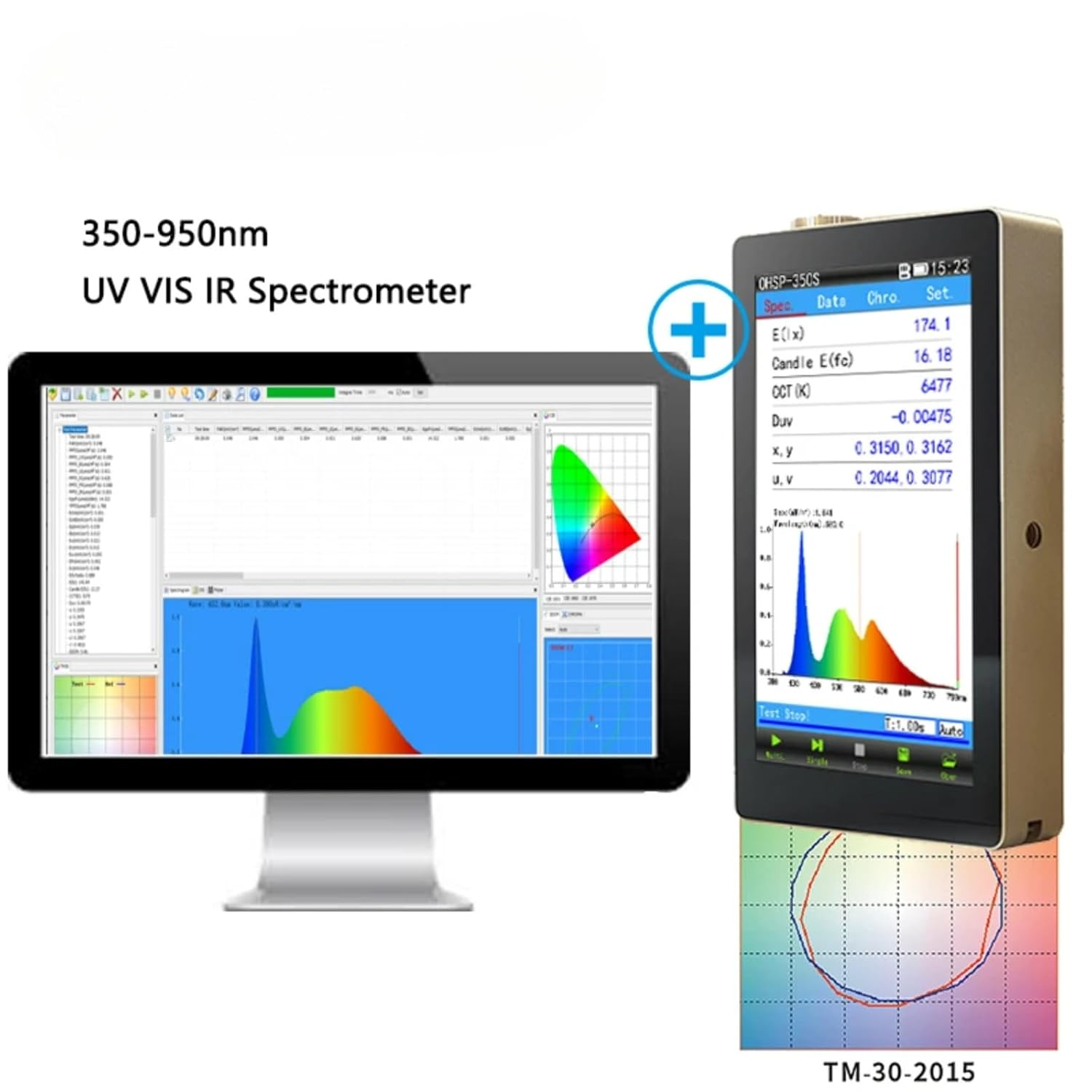

high-speed integration (50 μs to 10 s). With CNC-machined aluminum housing and USB data access,
this unit performs reliably in field or lab settings.
Key Features
- Measurement Spectrum: 350–950 nm for visible + near-infrared light
- Auto-Zeroing: Stabilizes readings for enhanced precision in fast-scan mode
- Sensor Array: 3648-point high-performance linear CCD sensor
- Display: 5-inch LCD screen with colorful spectral output visualization
- Compact & Durable: CNC aluminum housing for portable and rugged operation

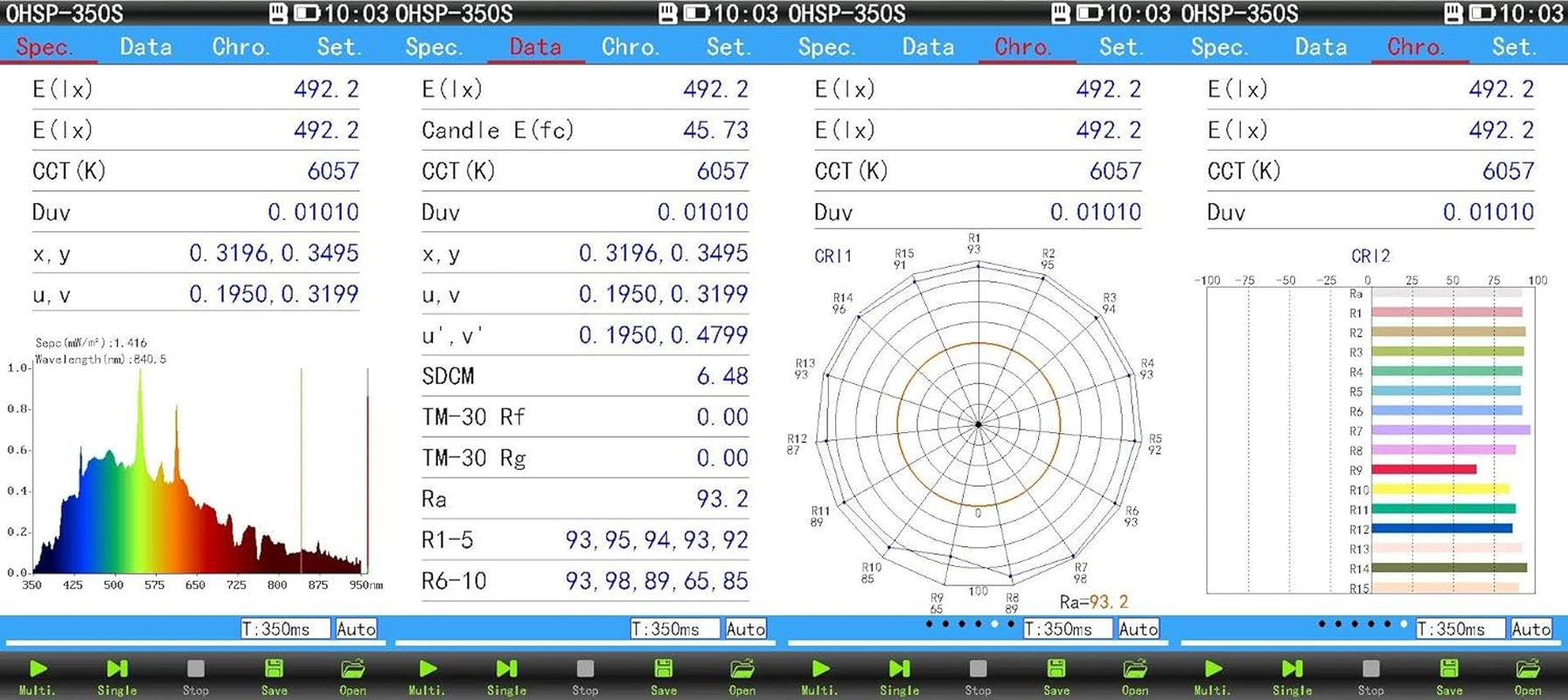

- Metrics: CRI, CCT, Lux, PPFD, PAR, and full spectral curve analysis
Specifications Table
| Model | OHSP350S |
| Wavelength Range | 350–950 nm |
| Sensor Type | 3648-point linear CCD |
| Optical Resolution | 2 nm |
| Integration Time | 50 μs – 10 s |
| Display | 5” color LCD |
| Metrics Measured | CRI, CCT, Lux, PPFD, PAR |
| Output Interface | USB |
| Construction | CNC aluminum alloy shell |
| Applications | Horticulture, R&D, lighting design, lab analysis |
