All-Season Hybrid Power Solution for Off-Grid Systems
This complete 1000W solar-wind hybrid kit provides continuous 12V battery charging using five high-efficiency solar panels
and a 400W wind turbine. The system includes an MPPT charge controller, pure sine wave inverter, and all required cabling
and brackets for streamlined deployment. Ideal for remote homes, RVs, boats, greenhouses, and off-grid sites operating under variable weather conditions.

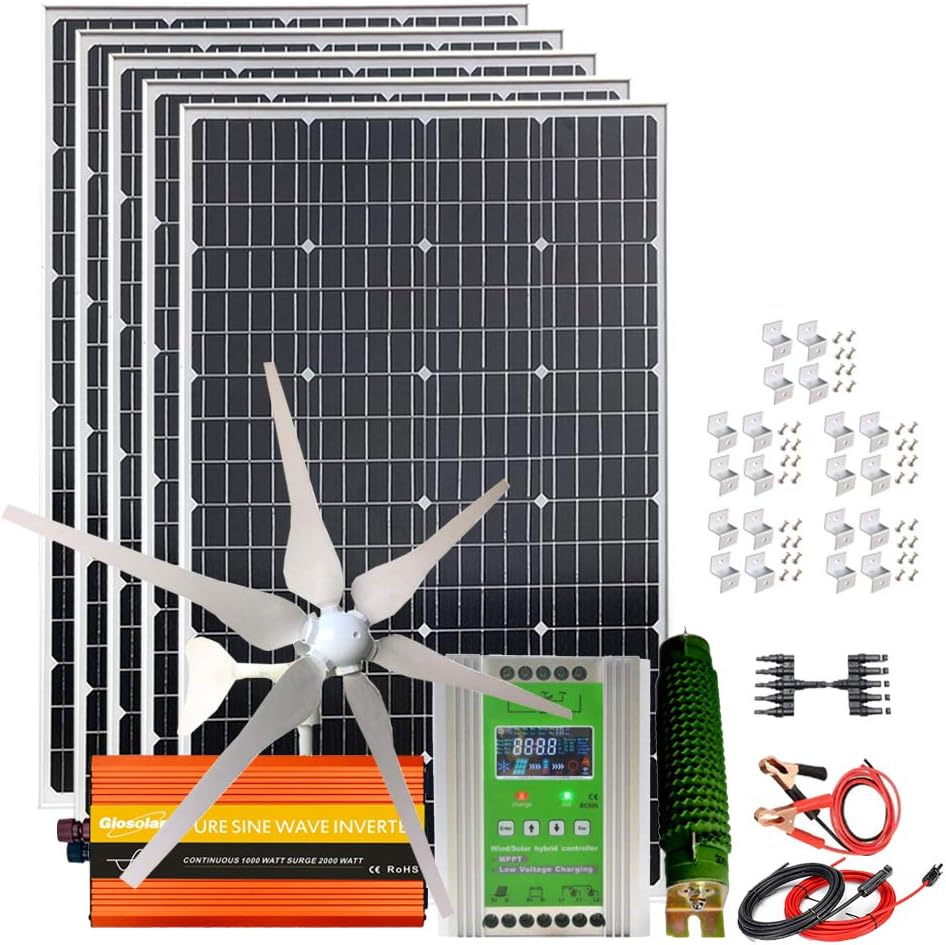

Kit Components

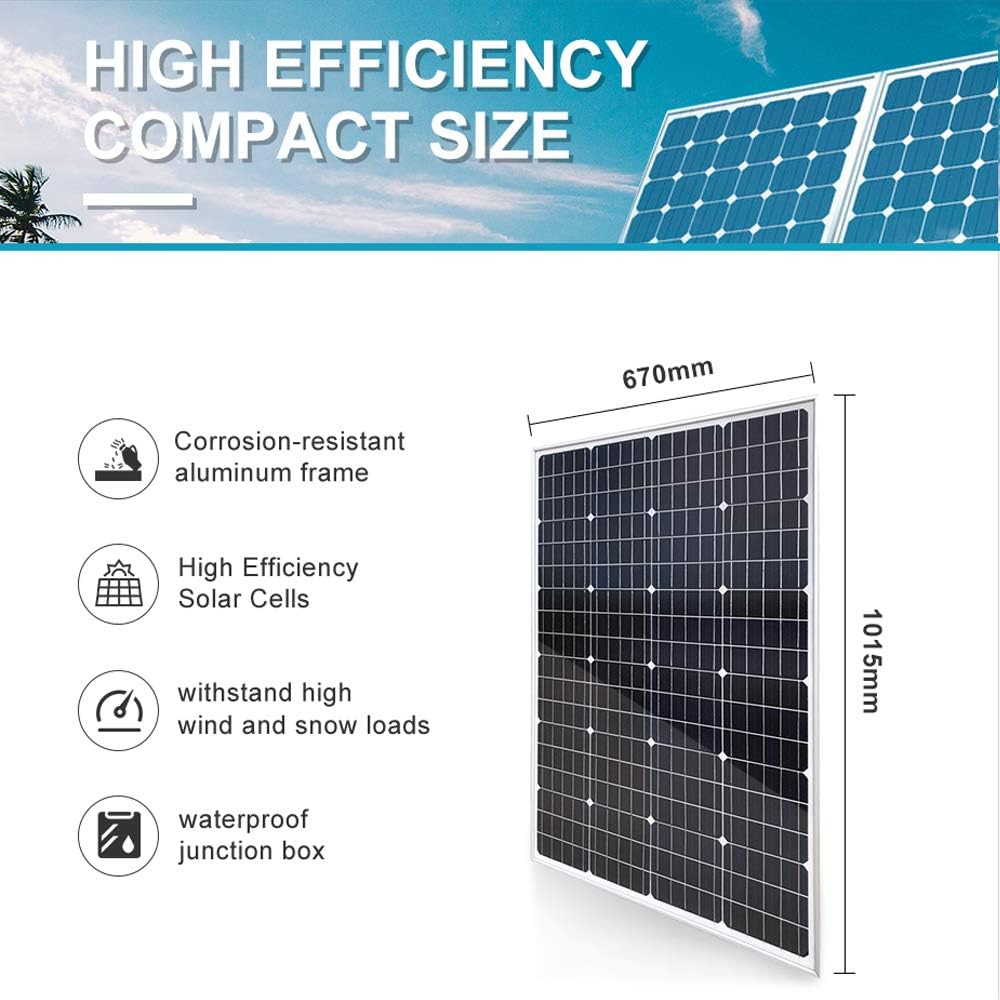

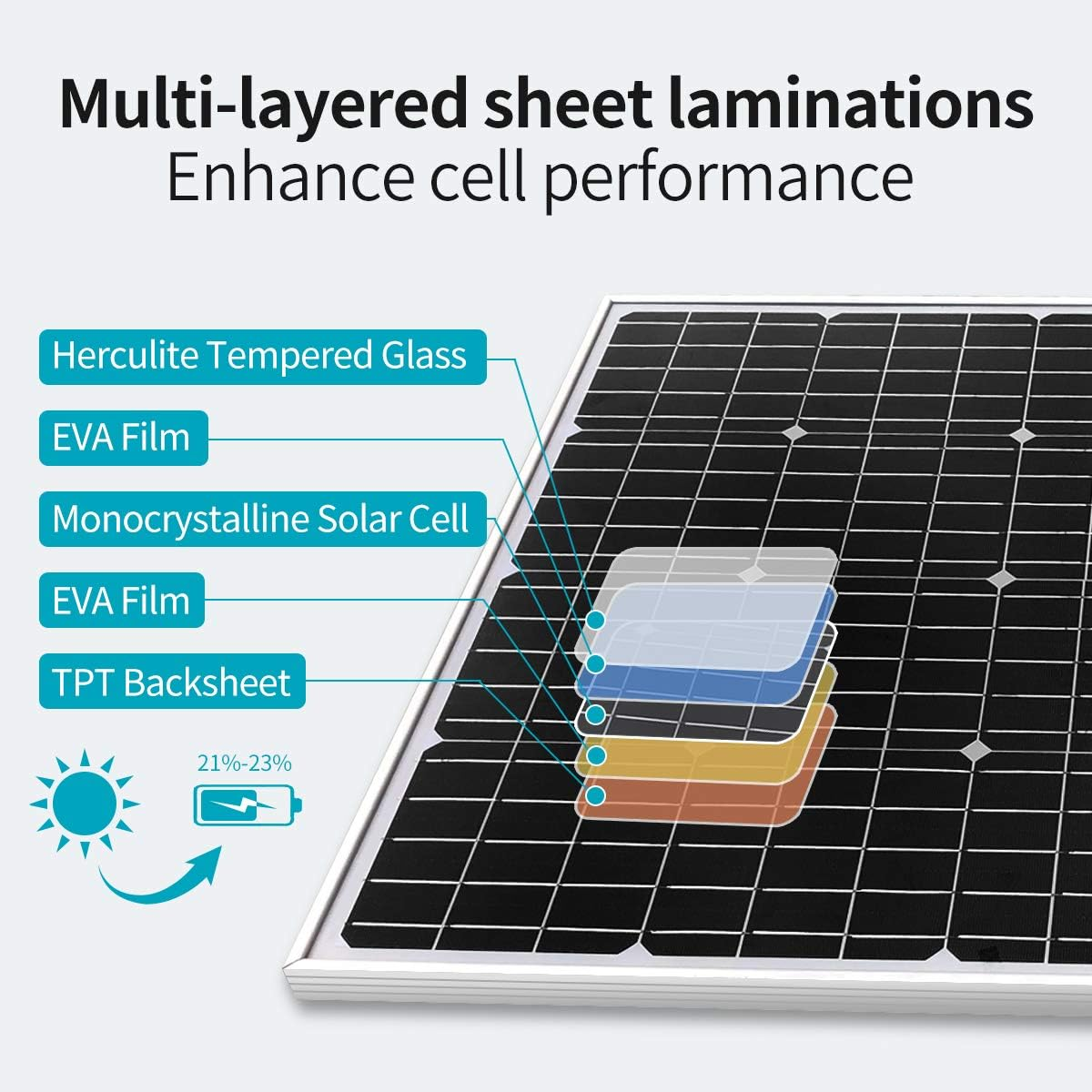

- (5) 120W monocrystalline solar panels (90cm waterproof cables, 5-busbar cell design)
- (1) 400W 6-blade wind turbine (carbon fiber)

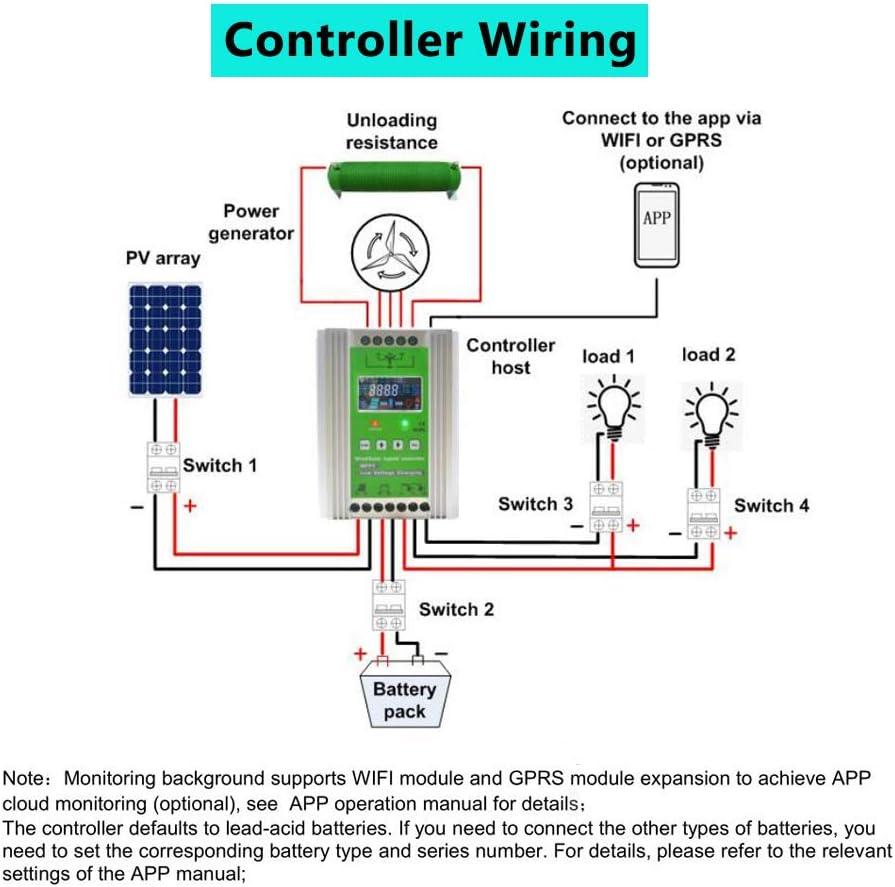

- (1) Hybrid MPPT charge controller with color display, auto 12V/24V recognition, and dump load
- (1) 1000W pure sine wave inverter (2000W peak, DC to 110V AC)
- (1) 5m solar cable (2.5m red, 2.5m black)
- (1) 3m battery cable with alligator clips
- (5) Z-bracket mounting kits
- (1) Y-branch connector pair
Key Features
- Startup Wind Speed: 5.6 mph (2.5 m/s)
- Charge Controller Modes: MPPT, boost, float; supports lithium, AGM, and custom battery profiles
- Environmental Tolerance: Operates from -49°F to 158°F
- Inverter Output: Clean 110V AC output for sensitive electronics
- Weatherproof: IP66-rated turbine housing with corrosion-resistant coating
Specifications Table
| System Type | Solar-Wind Hybrid Kit |
| Total Power Output | 1000W (600W solar + 400W wind) |
| Rated Wind Speed | 26.8 mph (12 m/s) |
| Startup Wind Speed | 5.6 mph (2.5 m/s) |
| Wind Turbine Blades | 6 pcs, carbon fiber |
| MPPT Controller | 12V/24V auto-detect, color screen, dump load, RS485 |
| Inverter | 1000W continuous, 2000W peak, pure sine wave |
| Operating Temp Range | -49°F to 158°F |
| Output Voltage (AC) | 110V |
| Charge Controller Battery Support | AGM, LiFePO₄, ternary lithium, custom |
