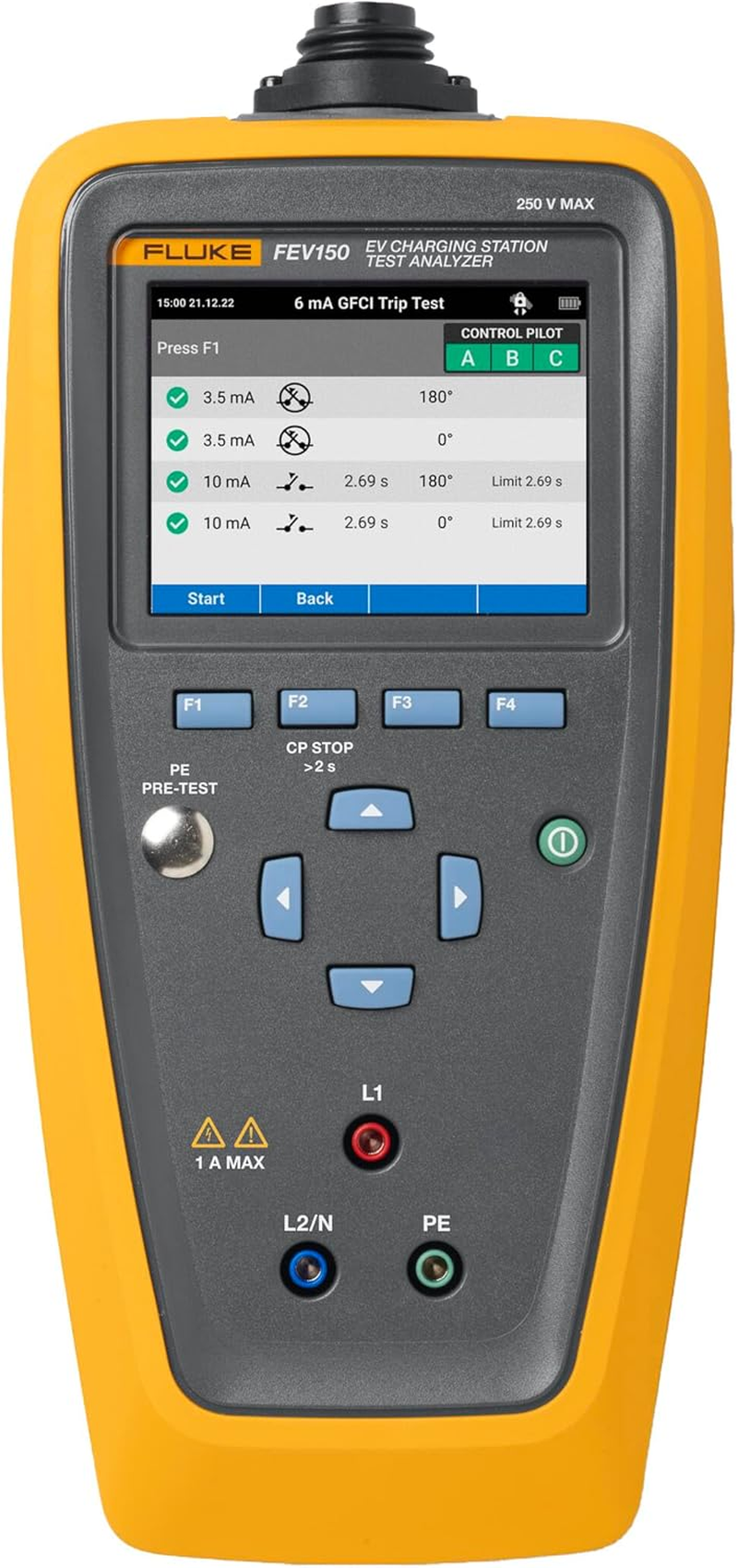

The FEV150/TY1 PRO is a professional-grade analyzer designed to test the safety and functionality of AC EV charging stations. It simulates EV charging conditions using an Auto Control Pilot and displays waveform and nominal test results. Integrated with TruTest Software; it allows direct transfer of measurements to a PC for reporting and comparison. The analyzer performs PE pre-tests; GFCI checks; voltage tests; pilot signal analysis; and error simulations. Designed for technicians and engineers; this tool ensures thorough safety validation and performance verification of EVSE installations.
Key Features
- Simulates real EV presence with Auto Control Pilot

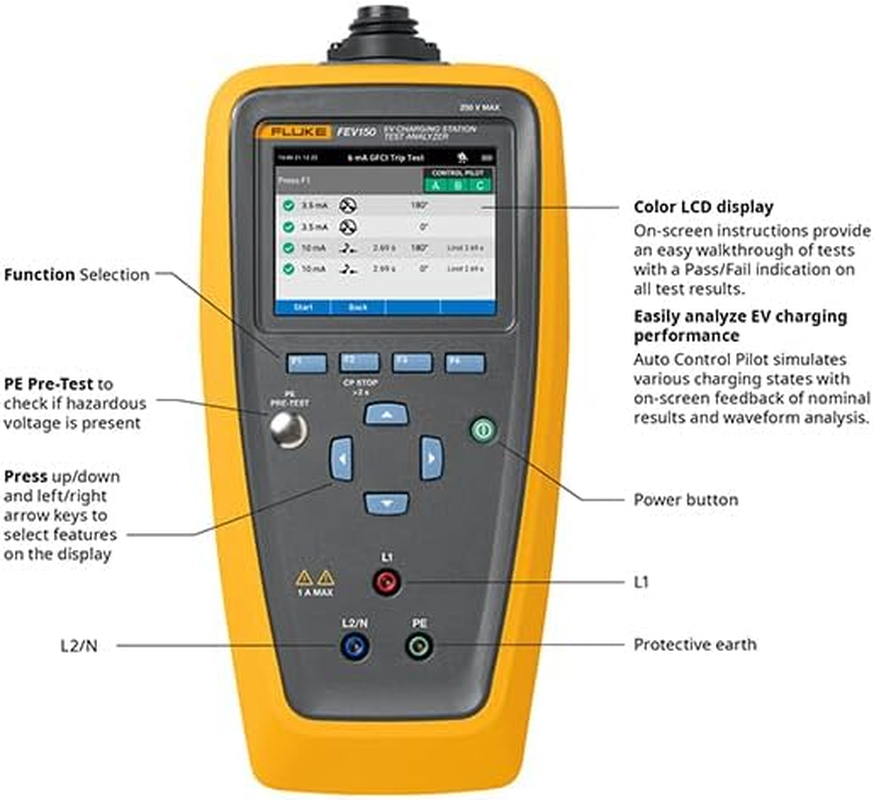

- On-screen feedback with waveform display and pass/fail results

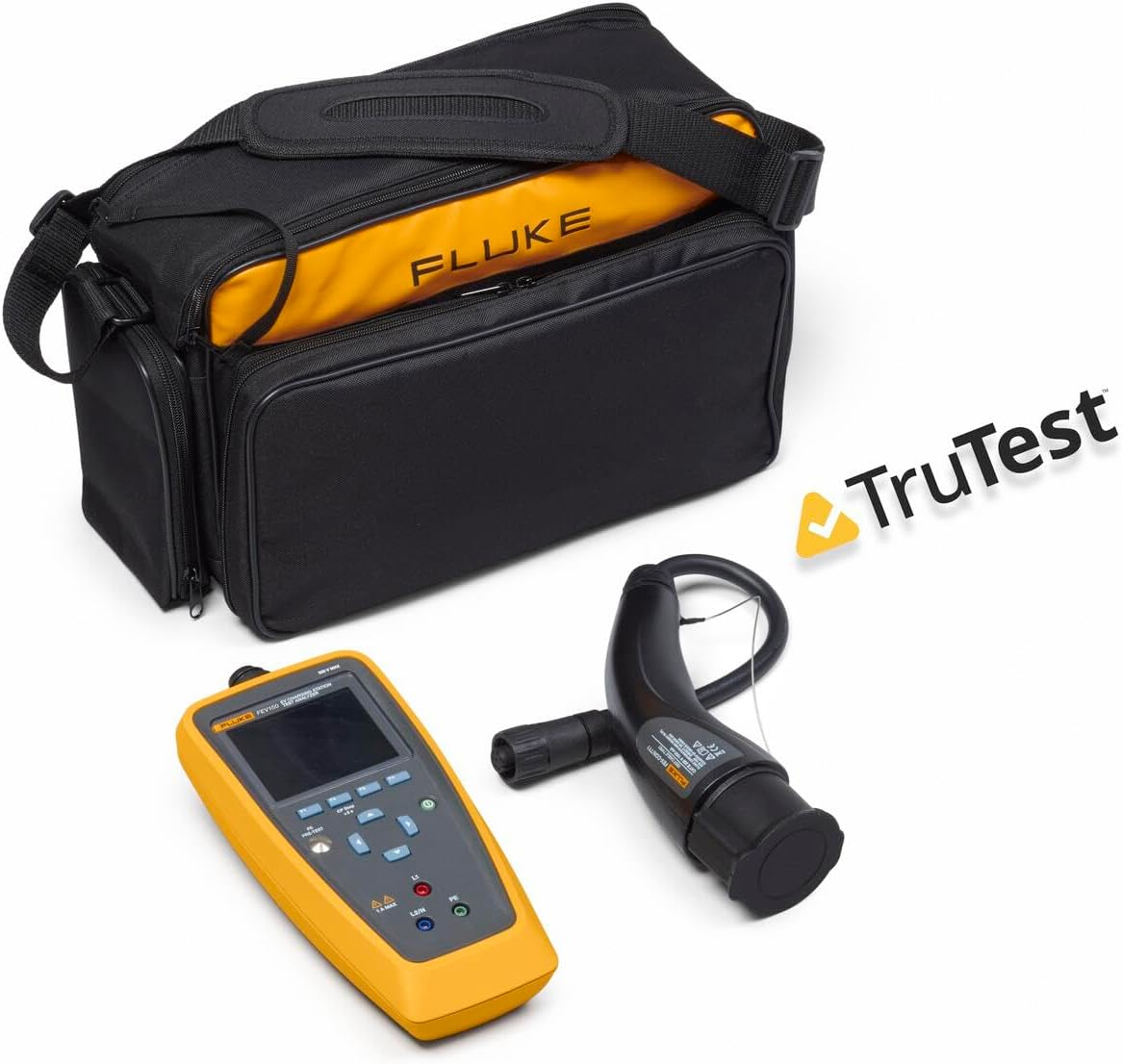

- TruTest Software for PC integration; data logging; and reporting
- Supports visual inspection; GFCI; voltage; proximity pilot; and error tests
- Compatible with Type 1 and Tesla-style connectors
- Two-year warranty from manufacturer
Specifications Table
| Model | FLK-FEV150/TY1 PRO |
| Software Included | TruTest License |
| Connector Type | Type 1 (SAE J1772) |
| Functions | PE Pre-test; GFCI Trip; Visual Inspection; Nominal Voltage |
| Data Handling | Waveform Analysis; Error Simulation; USB Transfer |
| Warranty | 2 Years |
