Description
- POWERFUL: 6000W continuous, 18000W surge for 20 seconds, 48VDC, 50 amps, 120VAC pure sine clean power, low frequency, auto transfer switch and 60A smart battery charger for 8 different battery technologies including Lead, Gel, AGM, LiFePO4 and more.
- PROTECTIONS: Overload, over temp, high voltage, low voltage, short circuit, internally fused, low and high voltage alarm, cooling fan, and isolated ground neutral.
- FEATURES: AC direct connect terminal block, charge current control dial, dip switches to set priorities, auto gen start, conformal coated, power save mode and battery temp sensor. Only one set of cables needed. Optional remote available.
- APPLICATIONS: Ideal for large applications going back and forth from shore/generator and inverter power automatically. Homes, boats, RVs, solar, mobile business & work trucks. 24 Volt more efficient and can use smaller cables. Offgrid & back-up power.
- TRUST AIMS: Buy with confidence. In business for over 20 year. All tech and warranty support in Nevada.

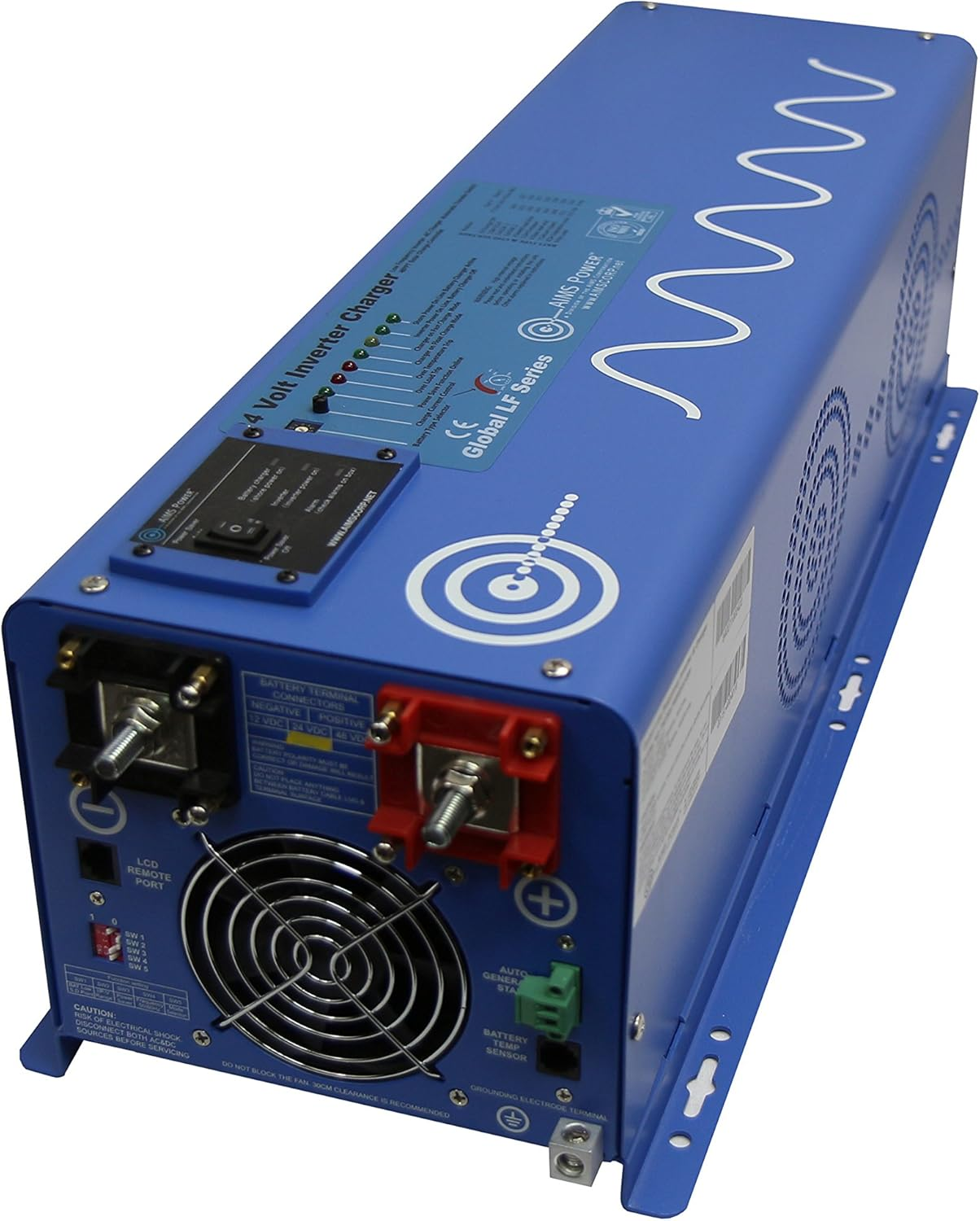

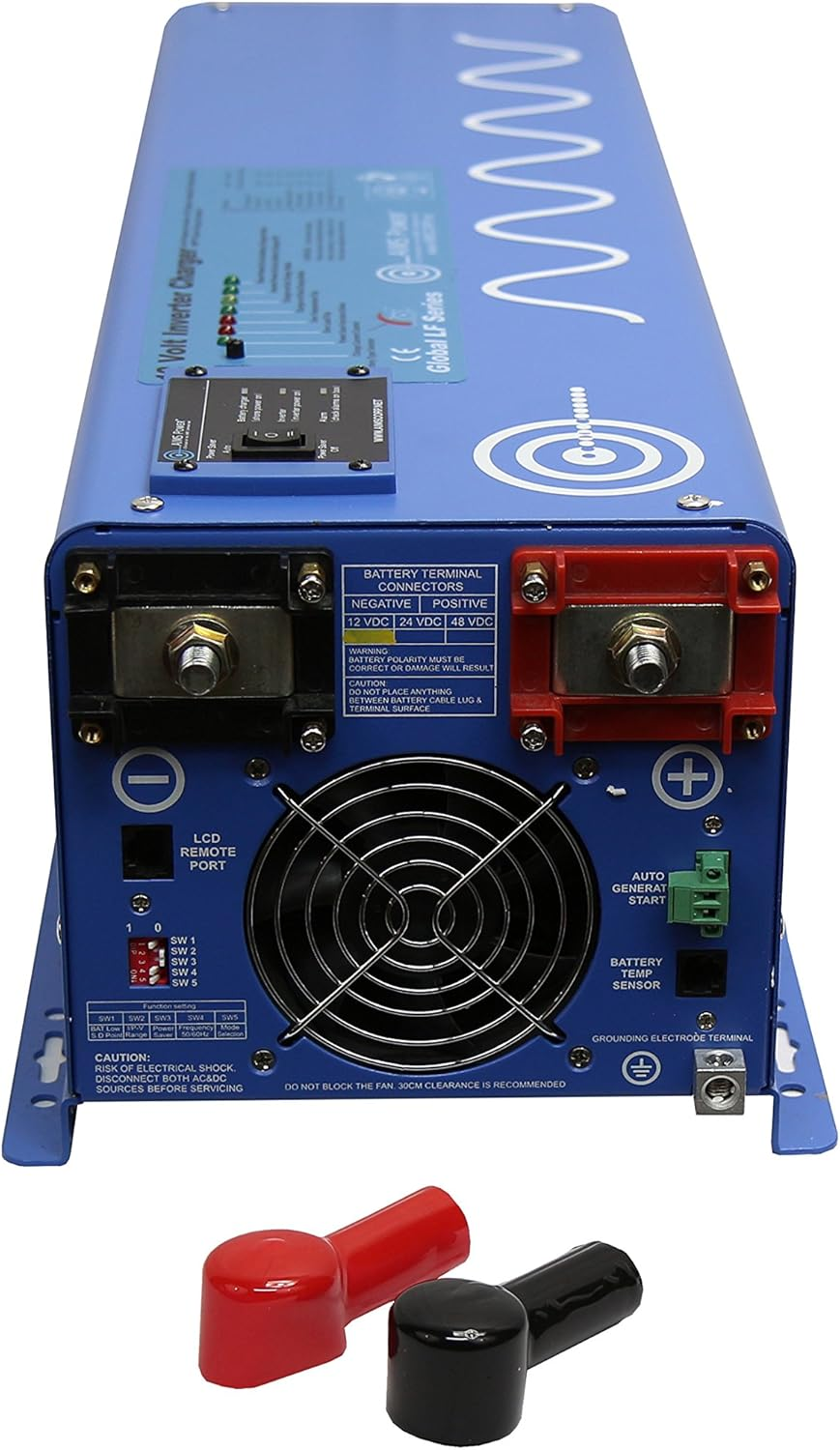

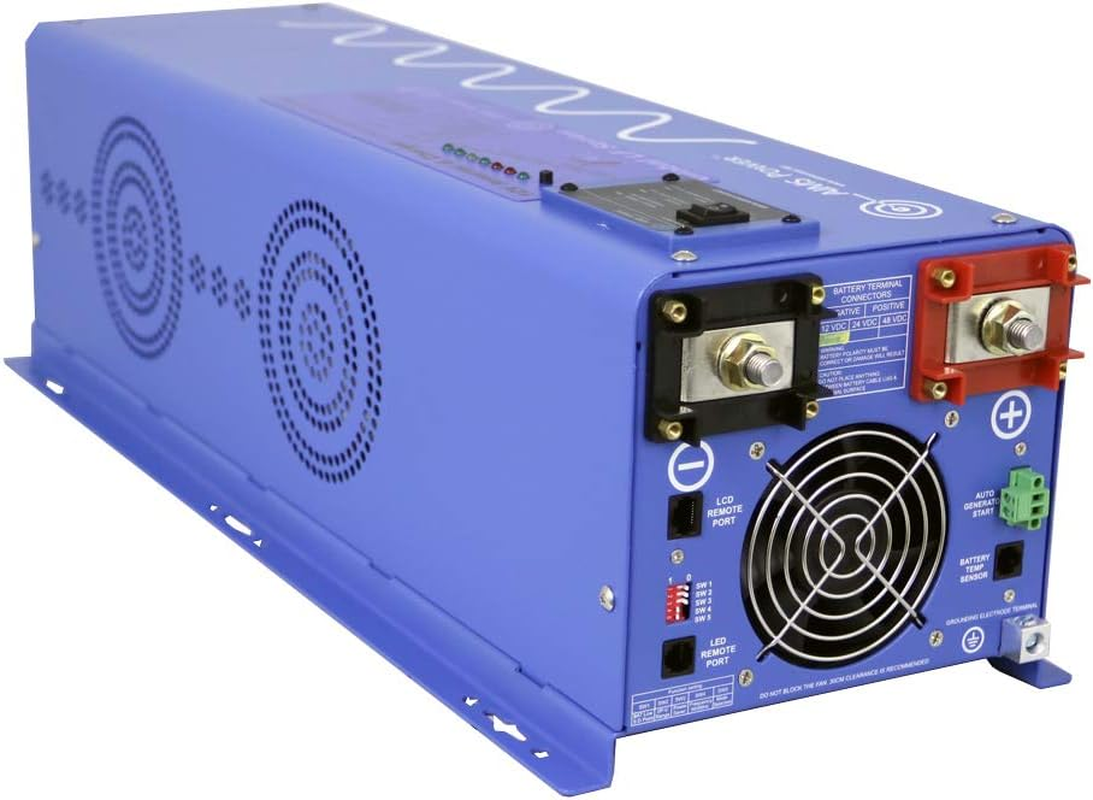

AIMS Power PICOGLF60W48V120V Pure Sine Inverter Charger, 6000W Inverter 110 Vac Single Phase, 18000W Surge for 20 Seconds -3x Surge Capability, Battery Priority Selector, Terminal Block
The most common use for this inverter is emergency backup power. Youll always be prepared for the next power outage with access to 6000 watts of continuous power and 18,000 watts of surge (for up to 20 seconds). This inverter will output 120 Vac, and it can output 50 or 60Hz via the SW4 switch on the DC side of the product. This means the inverter works internationally and is operable with nearly any electrical system on the planet
Key Features
- 6000 watt low frequency inverter 110 Vac Single Phase
- 18000 watt surge for 20 seconds -3x surge capability
- Battery Priority Selector
- Terminal Block
- Marine Coated and Protected
- Multi Stage Smart charger 80 Amp
- Remote panel available
- 60hz or 50 hz selectable dip switch
- 10msec typical transfer time
- Optional 25W power save mode
- 100-110-120Vac
- 7 battery type settings for charger
Specifications
- Output Waveform: Pure Sine/Same as input (Bypass Mode)
- Nominal Efficiency: >88% (Peak)
- Line Mode Efficiency: >95%
- Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time: 10ms (Max)
- THD: <10% DC
- Nominal Input Voltage: 48.0Vdc
- Low Battery Alarm: 42.0Vdc-44.0Vdc
- Low battery Trip: 40.0Vdc-42.0Vdc
- High Voltage Alarm: 64.0Vdc
- Low battery Voltage Restart: 62.0Vdc
- Idle Consumption: 4.16 amps DC
- Power Saver Mode Idle Consumption: <0.83 amps DC
- Dimensions: 23.5″ x 8.5″ x 7.0″
- Weight: 79 lbs
