Description
- ▶【Efficient and Stable Performance】: Low-speed permanent magnet generator is made of rare earth magnetic material and is known as the “magnetic king”. This three-phase AC generator uses high-quality copper wire windings for higher efficiency and better matching characteristics with wind turbines or other generators, ensuring stable and reliable performance.

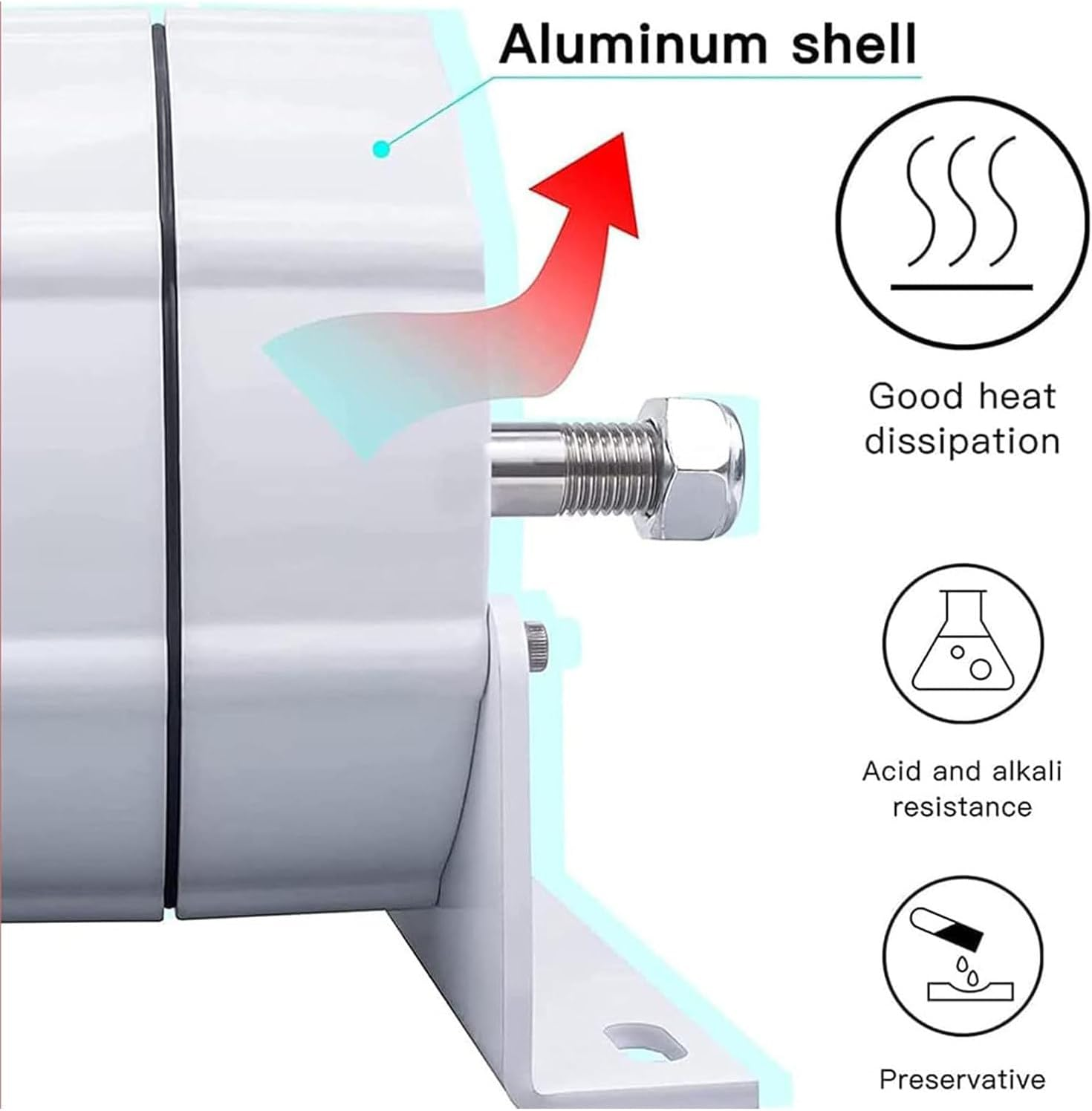

- ▶【Reliable Structure】: Generator uses a die-cast aluminum cover to enhance resistance to strong winds and ensure safe. Corrosion-r esistant treatment ensures a longer service life, making it r esistant to acids, alkalis and salts. You can rely on this generator for years of trouble-free use.
- ▶【Easy to Use】: Low-speed rare earth permanent magnet generator has a simple and convenient design. It does not require any gears and can be driven directly, making it very simple to use and worry-free to maintain. Even beginners can quickly learn how to it effectively.
- ▶【Excellent Heat Dissipation Performance】: Thanks to its special fixed rotor design, our three-phase generator has low starting resistance torque and excellent heat dissipation performance. This ensures stable and a high level of safety during long-term use.
- ▶【Features】: Our magnetic generator uses advanced coating technology to provide not only energy-saving and efficient power generation, but also a visually appealing and bright appearance. With its eye-catching colors and stylish design, the generator adds a touch of elegance to any environment.
▶ Features:
1) Low starting speed and low torque
2) Gearless generator, direct drive, low speed
3) Efficient and stable performance, rated speed 600rpm
4) High and low temperature resistance, working temperature is -40℃~120℃
5) Good heat dissipation, special stator and rotor design.

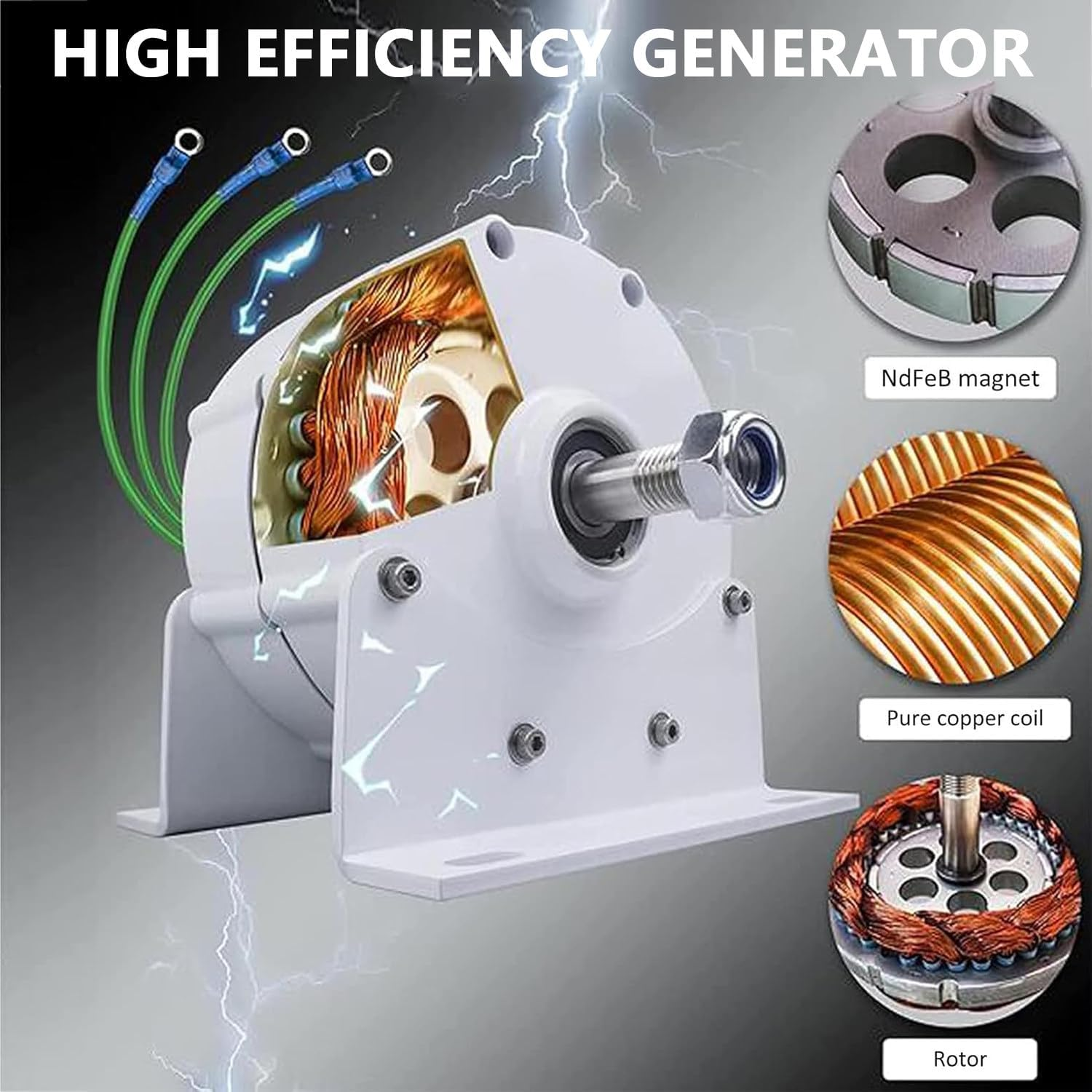

6) Using the best NdFeB permanent magnets and high-grade pure copper windings, the generator can generate stable and efficient electricity
7) Convenient and safe maintenance, simple installation.
8) Advanced spraying treatment technology, energy-saving and efficient, safe and reliable, bright color.
▶ Specifications:
Product type: permanent magnet generator
Rated power: 5000W/8000W/10000W/12000W (optional)
Rated voltage: 12V/24V/48V/120V/220V (optional)
Speed: 600rpm
Starting torque: 0.42N*m
Rated torque: 8N*m
Output current: AC
Efficiency: ≥85%
Working temperature rise: ≤70℃
Working temperature: -40℃~120℃
Lubrication method: injection
Service life: ≥20 years
Insulation grade: F
Generator: three-phase permanent magnet synchronous generator
Shaft material: stainless steel
Generator housing material: aluminum alloy
Permanent magnet material: rare earth neodymium iron boron

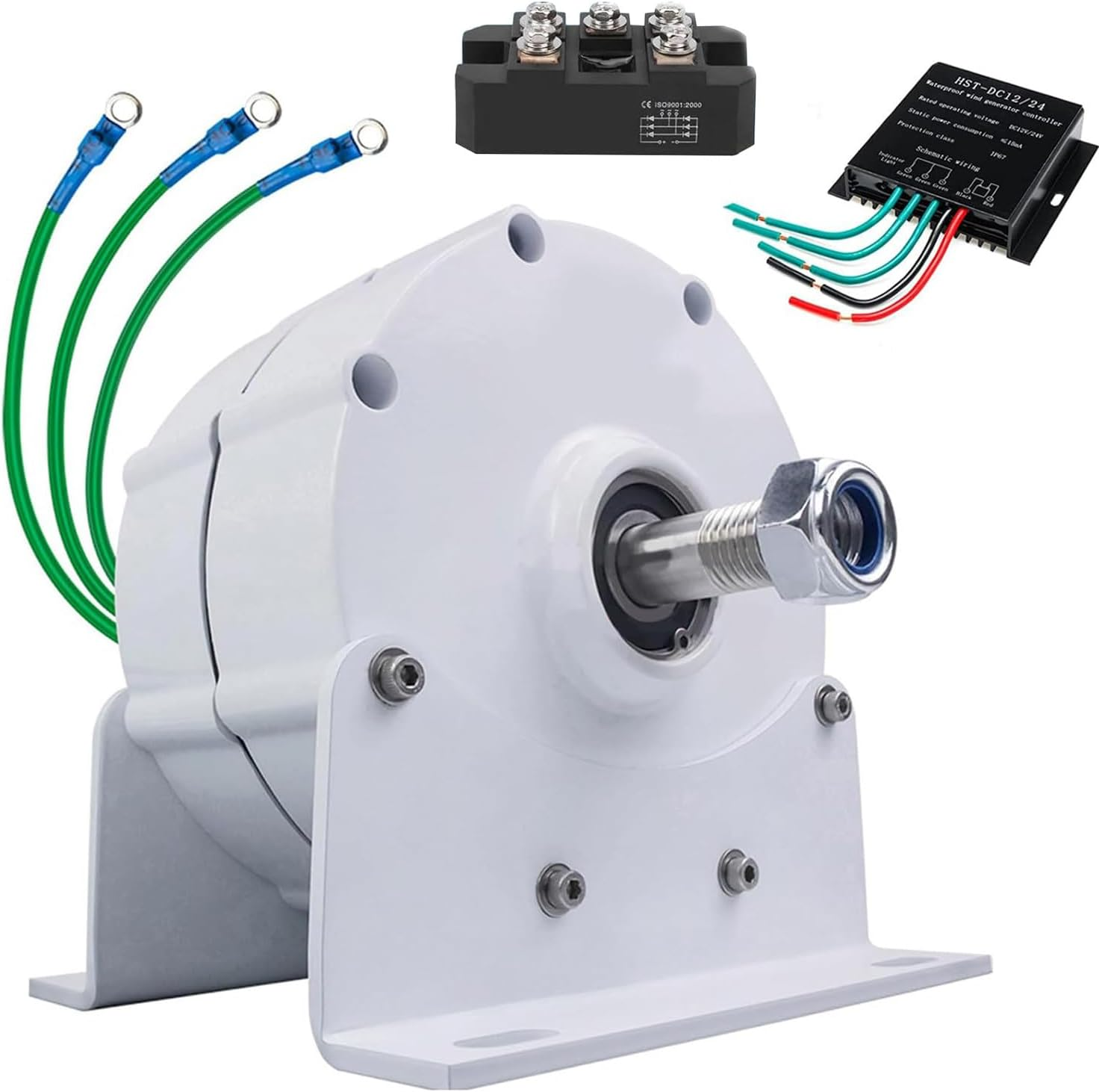

▶ Product contents:
1 x motor with base
1 x rectifier
1 x controller
