Description
Description

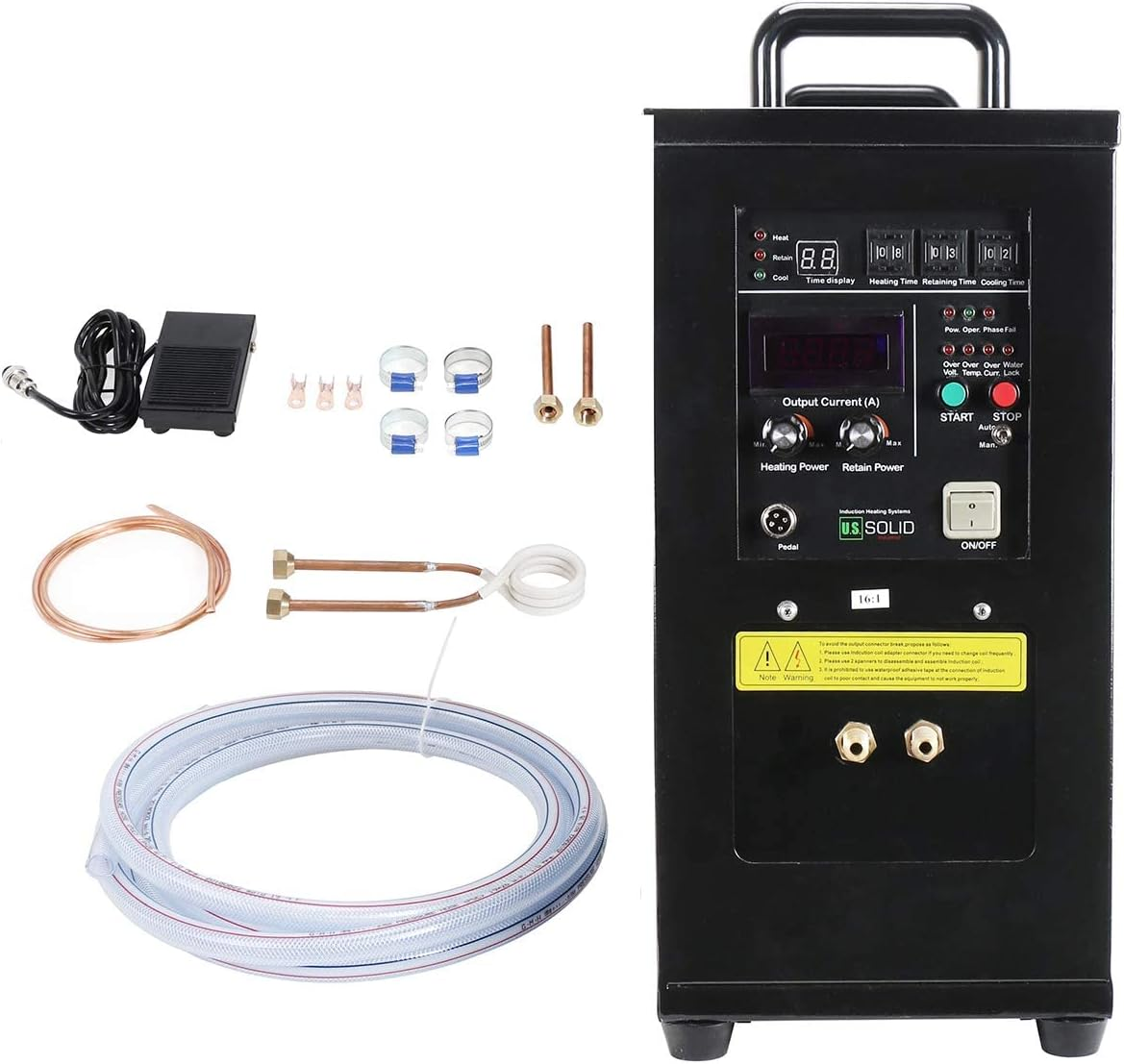

This high-frequency induction heater furnace delivers up to 15KW of inductive power across a 30-80KHz frequency range. It features MOSFET and IGBT inverter technology for stable, high-efficiency operation and continuous 100% load performance for 24hours.
Key Features
- Inverter Technology: MOSFET and IGBT for efficient, stable operation
- Energy Savings: Up to 2 lower consumption compared to tube-based systems
- Continuous Operation: 100% load for 24hours

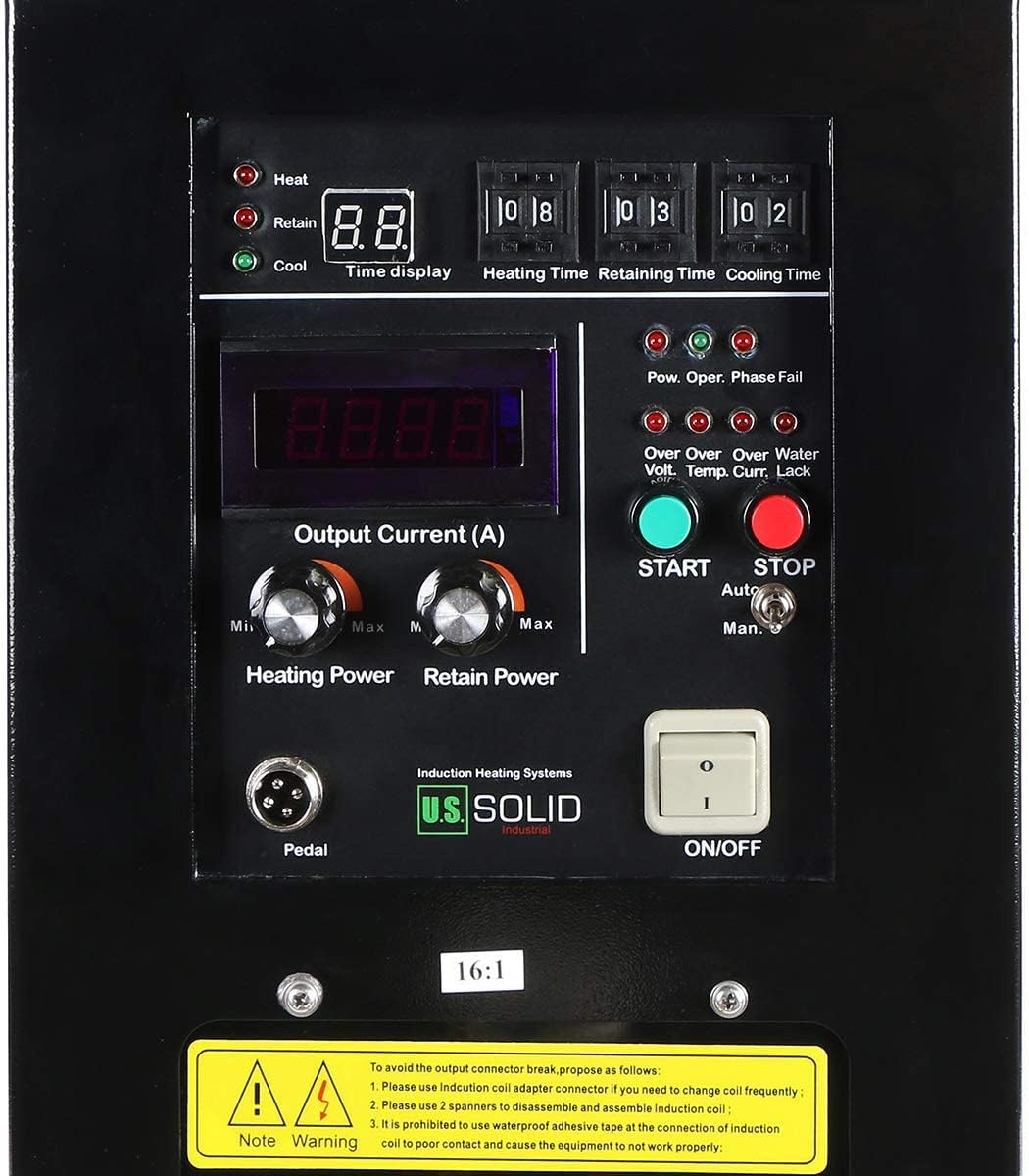

- Temperature Control: Infrared sensor with digital display
- Frequency Adjustment: 30-80KHz for heating depth control
Specifications Table
| Model | USS-HFIH00001-220V |
|---|---|
| Input Voltage | Single Phase 220V |
| Max Inductive Power | 15KW |
| Max Input Power | 7KW |
| Frequency | 30-80KHz |
| Output Current | 200-600A |
| Max Temperature | 1200C (2192F) |
| Time Settings | 1-99s |

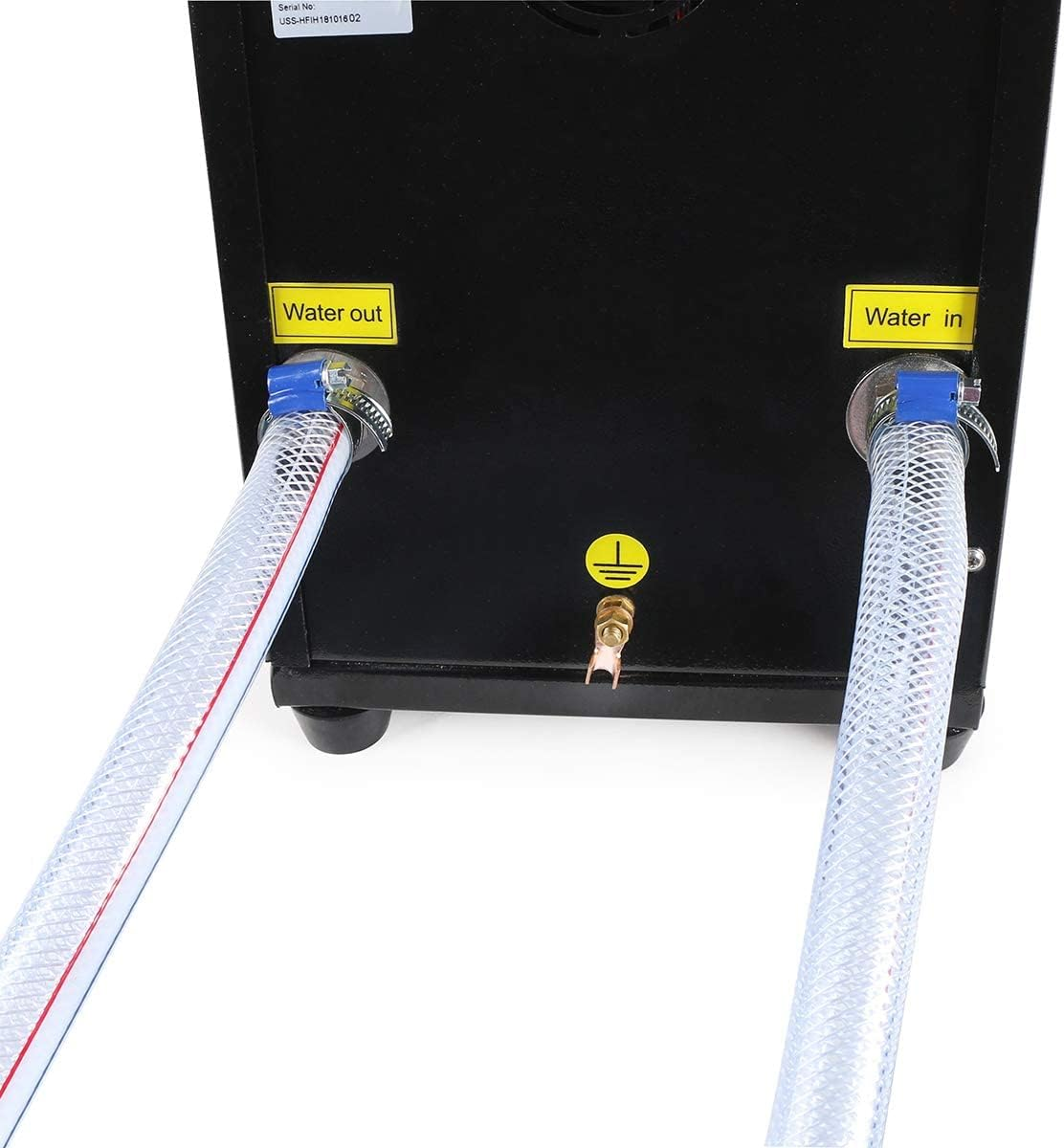

| Cooling Water Flow | 7.5L/min |
| Water Protection | Temp 40C |
